Understanding the behavior of diodes when forward-biased is a fundamental aspect of electronic circuit design and analysis. This analysis primarily utilizes two models: the exponential diode model and the constant-voltage-drop model. The exponential model comes into play when the source voltage exceeds 0.5 volts, pushing the diode current to rise exponentially above the saturation current. This relationship is graphically depicted in the current-voltage (I-V) curve, illustrating the diode's...

The generation of electrical current in semiconductors is fundamentally driven by two mechanisms: drift and diffusion. These processes are essential for the functionality and performance of semiconductor-based devices.
Drift Current:
The drift of charge carriers is started by an external electric field (E). Charged particles, such as electrons and holes, experience an acceleration between collisions with lattice atoms. For electrons, this results in a drift velocity (vd) given by:

A Metal-Oxide-Semiconductor (MOS) capacitor is a fundamental structure used extensively in semiconductor device technology, particularly in the fabrication of integrated circuits and MOSFETs (metal-oxide-semiconductor field-effect transistors). The MOS capacitor consists of three layers: a metal gate, a dielectric oxide, and a semiconductor substrate.
The metal gate is typically made from highly conductive materials such as aluminum or polysilicon. Beneath the metal gate lies a thin layer of...

In analyzing the behavior of diodes in circuits, the relationship between the current through a diode and the voltage across it is of particular interest, especially when considering the effect of a direct current (DC) bias voltage. When applied, this DC bias influences the diode's operating point, known as the Q point, around which the current-voltage (I-V) characteristic of the diode exhibits exponential behavior. Introducing a small, time-varying signal on top of this bias aids in...

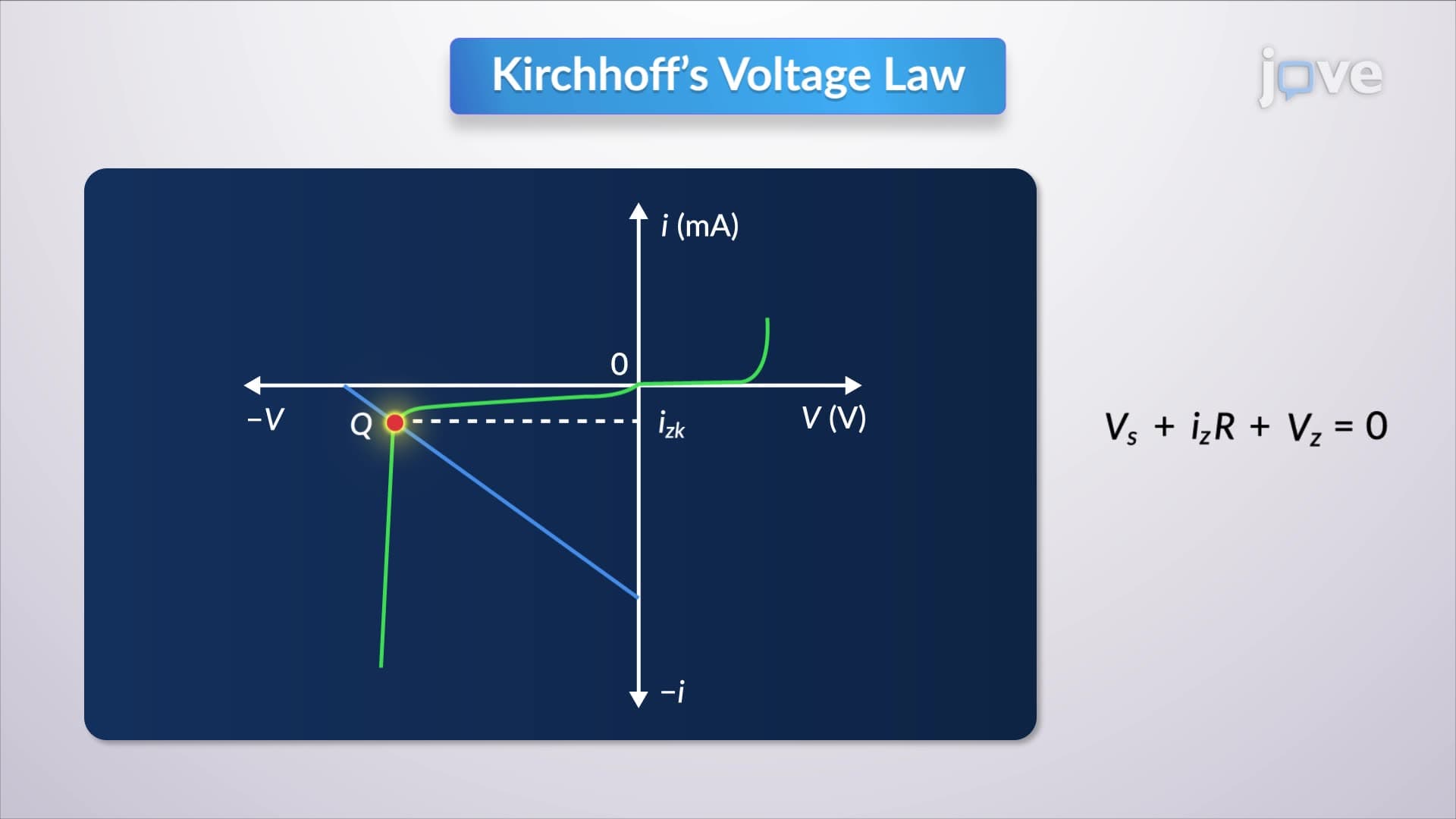

In electronic circuits, reverse-biased diode configurations are critical for regulating voltage levels. Zener diodes exploit the reverse breakdown phenomenon and exhibit a controlled breakdown at a specific Zener voltage (VZ). They are designed to maintain a constant voltage across their terminals and are commonly used for voltage regulation in circuits.
When a reverse voltage applied to a Zener diode exceeds its breakdown voltage, the diode enters the breakdown region. At this point, the...

Metal-oxide-semiconductor field-effect Transistors, or MOSFETs, play a critical role in electronic circuits. They are primarily utilized for amplifying and switching signals.
Various vital parameters influence their functionality, which is crucial for theory and electronics applications. First, channel dimensions, precisely length, and width, are pivotal. The size of these channels affects the transistor's ability to carry current and switching speeds; shorter channels typically enable...
