Gain-compensation Methodology for a Sinusoidal Scan of a Galvanometer Mirror in Proportional-Integral-Differential Control Using Pre-emphasis Techniques
09:01

Gain-compensation Methodology for a Sinusoidal Scan of a Galvanometer Mirror in Proportional-Integral-Differential Control Using Pre-emphasis Techniques

Published on: April 4, 2017

8.8K

Linear-Range Extension for Linear Variable Differential Transformer Using Hyperbolic Sine Function.

Apinai Rerkratn1, Jakkapun Tongcharoen1, Wandee Petchmaneelumka1

  • 1School of Engineering, King Mongkut's Institute of Technology Ladkrabang, Ladkrabang, Bangkok 10520, Thailand.

Sensors (Basel, Switzerland)
|May 28, 2022
PubMed
Summary
This summary is machine-generated.

Related Concept Videos

Linear Approximation in Frequency Domain01:26

Linear Approximation in Frequency Domain

143
Linear systems are characterized by two main properties: superposition and homogeneity. Superposition allows the response to multiple inputs to be the sum of the responses to each individual input. Homogeneity ensures that scaling an input by a scalar results in the response being scaled by the same scalar.
In contrast, nonlinear systems do not inherently possess these properties. However, for small deviations around an operating point, a nonlinear system can often be approximated as linear....
143
Transmission-Line Differential Equations01:26

Transmission-Line Differential Equations

427
Transmission lines are essential components of electrical power systems. They are characterized by the distributed nature of resistance (R), inductance (L), and capacitance (C) per unit length. To analyze these lines, differential equations are employed to model the variations in voltage and current along the line.
Line Section Model
A circuit representing a line section of length Δx helps in understanding the transmission line parameters. The voltage V(x) and current i(x) are measured...
427
Trigonometric Fourier series01:17

Trigonometric Fourier series

424
Fourier series is a foundational mathematical technique that decomposes periodic functions into an infinite series of sinusoidal harmonics. This method enables the representation of complex periodic signals as sums of simple sine and cosine functions, facilitating their analysis and interpretation in various fields, including signal processing, acoustics, and electrical engineering.
The trigonometric Fourier series specifically expresses a periodic function with a defined period T using sine...
424
Discrete-Time Fourier Series01:20

Discrete-Time Fourier Series

376
The Discrete-Time Fourier Series (DTFS) is a fundamental concept in signal processing, serving as the discrete-time counterpart to the continuous-time Fourier series. It allows for the representation and analysis of discrete-time periodic signals in terms of their frequency components. Unlike its continuous counterpart, which utilizes integrals, the calculation of DTFS expansion coefficients involves summations due to the discrete nature of the signal.
For a discrete-time periodic signal x[n]...
376

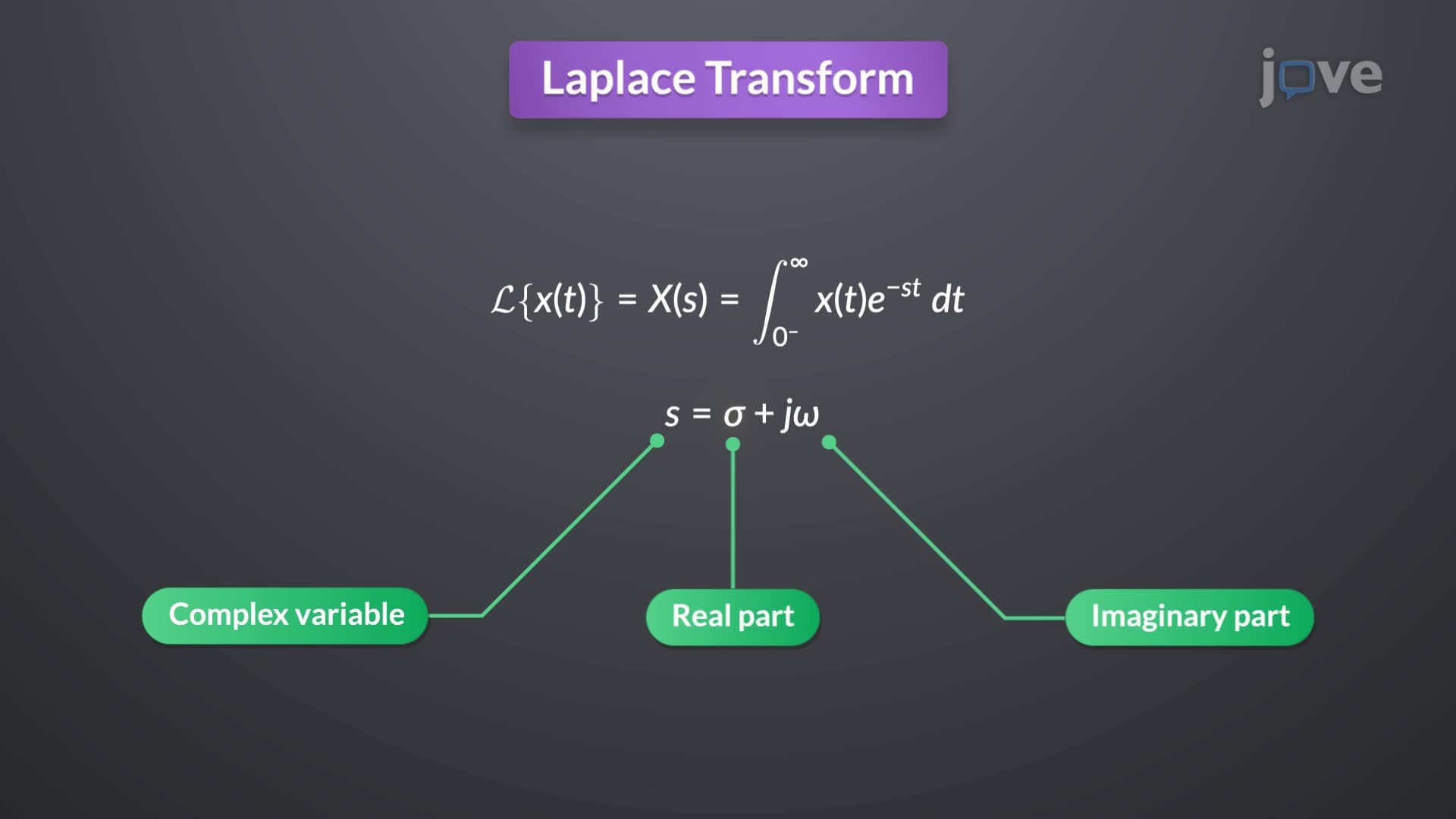

Definition of Laplace Transform01:22
