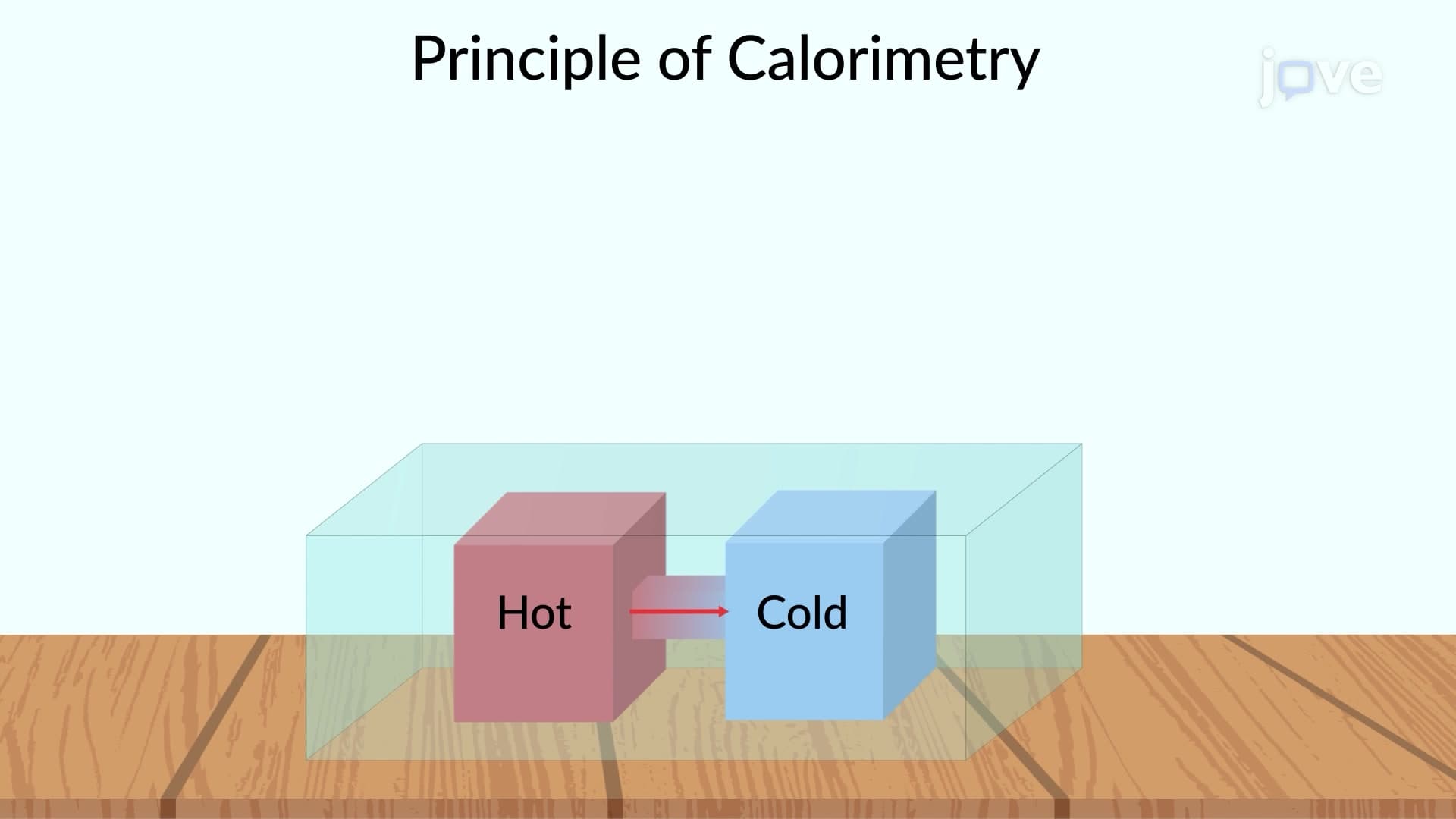

When objects at different temperatures are placed in contact with each other but isolated from everything else, they attain thermal equilibrium. A container that prevents heat transfer in or out is called a calorimeter, and the use of a calorimeter to make measurements is called calorimetry. Generally, these measurements involve heat or specific heat capacity. The term "calorimetry problem" is used for any problem where the specified objects are thermally isolated from their...
3.1K
Atomic Absorption Spectroscopy: Radiation and Light Sources01:13

Atomic Absorption Spectroscopy: Radiation and Light Sources

475
Atomic absorption spectroscopy (AAS) relies on the Beer-Lambert law, which requires that the radiation source emits a narrow range of wavelengths to match the absorption characteristics of the analyte atom. The primary criteria for choosing an appropriate radiation source in AAS is to provide a precise and intense emission at specific wavelengths that will allow accurate detection of the analyte.
Two common narrow-range 'line' sources used in AAS are hollow-cathode lamps (HCLs) and...
475

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

The developmental pattern of calcium mobilisation during embryogenesis in Muscovy ducks.

British poultry science·2026
Same author

[Analysis of antigenic gene characteristics and drug resistance of Bordetella pertussis in Liaoning Province from 2018 to 2024].

Zhonghua yu fang yi xue za zhi [Chinese journal of preventive medicine]·2026
Same author

Draft whole-genome and mitochondrial genome assemblies of <i>Steinernema tarimense</i> and <i>Heterorhabditis</i> sp. XJ-55.

Journal of helminthology·2026
Same author

[A retrospective study of PD-1 monoclonal antibody combined with nab-paclitaxel plus bevacizumab in the treatment of advanced malignant melanoma].

Zhonghua zhong liu za zhi [Chinese journal of oncology]·2026
Same author

[Global differences and challenges in the definition of acute liver failure].

Zhonghua gan zang bing za zhi = Zhonghua ganzangbing zazhi = Chinese journal of hepatology·2026
Same author

Customized 3D-printed surgical templates for maxillary repositioning: a systematic review.

International journal of oral and maxillofacial surgery·2026
Same journal

A compact low-power magnetic particle imaging scanner based on a permanent-magnet field-free-line generator with high gradient.

The Review of scientific instruments·2026
Same journal

Achieving ultrahigh resolution with high efficiency: Optical design of the two-dimensional Resonant Inelastic X-ray Scattering (2D-RIXS) spectrometer at NanoTerasu beamline 02U.

The Review of scientific instruments·2026
Same journal

Automated laboratory x-ray diffractometer and fluorescence spectrometer for high-throughput materials characterization.

The Review of scientific instruments·2026
Same journal

Nonlinear Bayesian Doppler tomography for simultaneous reconstruction of flow and temperature.

The Review of scientific instruments·2026
Same journal

A Reflectance-based multimodal wearable photoplethysmography (PPG) sensor.

The Review of scientific instruments·2026
Same journal

Temporal analysis of products-Raman (TAP-Raman): An integrated setup for operando spectroscopy and transient kinetic analysis.

The Review of scientific instruments·2026
See all related articles

Related Experiment Video

Updated: Aug 19, 2025

Visualization of Low-Level Gamma Radiation Sources Using a Low-Cost, High-Sensitivity, Omnidirectional Compton Camera
06:28

Visualization of Low-Level Gamma Radiation Sources Using a Low-Cost, High-Sensitivity, Omnidirectional Compton Camera

Published on: January 30, 2020

12.7K

High-resolution Compton spectroscopy using x-ray microcalorimeters.

U Patel1, T Guruswamy1, A J Krzysko1

  • 1X-ray Science Division, Argonne National Laboratory, Lemont, Illinois 60439, USA.

The Review of Scientific Instruments
|December 3, 2022
PubMed
Summary
This summary is machine-generated.

High-resolution X-ray Compton spectroscopy using a transition-edge sensor (TES) microcalorimeter detector significantly improves electron momentum distribution analysis. This advancement offers enhanced sensitivity for low-Z elements and oxidation states in materials like lithium-ion battery components.

More Related Videos

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic
06:46

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic

Published on: August 25, 2016

11.4K
Synchrotron X-ray Microdiffraction and Fluorescence Imaging of Mineral and Rock Samples
10:12

Synchrotron X-ray Microdiffraction and Fluorescence Imaging of Mineral and Rock Samples

Published on: June 19, 2018

9.1K

Related Experiment Videos

Last Updated: Aug 19, 2025

Visualization of Low-Level Gamma Radiation Sources Using a Low-Cost, High-Sensitivity, Omnidirectional Compton Camera
06:28

Visualization of Low-Level Gamma Radiation Sources Using a Low-Cost, High-Sensitivity, Omnidirectional Compton Camera

Published on: January 30, 2020

12.7K
Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic
06:46

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic

Published on: August 25, 2016

11.4K
Synchrotron X-ray Microdiffraction and Fluorescence Imaging of Mineral and Rock Samples
10:12

Synchrotron X-ray Microdiffraction and Fluorescence Imaging of Mineral and Rock Samples

Published on: June 19, 2018

9.1K

Area of Science:

  • Condensed Matter Physics
  • Materials Science
  • Spectroscopy

Background:

  • X-ray Compton spectroscopy directly probes electron momentum distribution in materials.
  • Existing silicon drift detectors (SDDs) have limitations in resolution, affecting detailed analysis.
  • Applications include ambient and operando studies of materials relevant to energy storage.

Purpose of the Study:

  • To characterize an X-ray Transition-Edge Sensor (TES) microcalorimeter for high-resolution Compton scattering.
  • To compare the performance of TES detectors with state-of-the-art Silicon Drift Detectors (SDDs).
  • To demonstrate the capability for detailed electron momentum distribution analysis in materials like lithium and cobalt oxides.

Main Methods:

  • High-resolution inelastic X-ray scattering experiments were conducted at a high-energy X-ray light source.
  • A TES microcalorimeter detector was employed and compared against an SDD.
  • Compton profiles were measured for lithium and cobalt oxide powders, with photon energies near 27.5 keV.

Main Results:

  • The TES detector achieved a momentum resolution below 0.16 atomic units, a >7x improvement over SDDs.
  • High sensitivity to low-Z elements and oxidation states was demonstrated.
  • Clear resolution of valence and core electron profiles was achieved for lithium metal, unlike the smeared profiles from SDDs.

Conclusions:

  • X-ray TES microcalorimeters offer superior resolution for Compton scattering experiments.
  • This technology enables more detailed analysis of electron momentum distributions, crucial for battery research and condensed matter physics.
  • New opportunities for spatial imaging of electron momentum distributions are presented.
