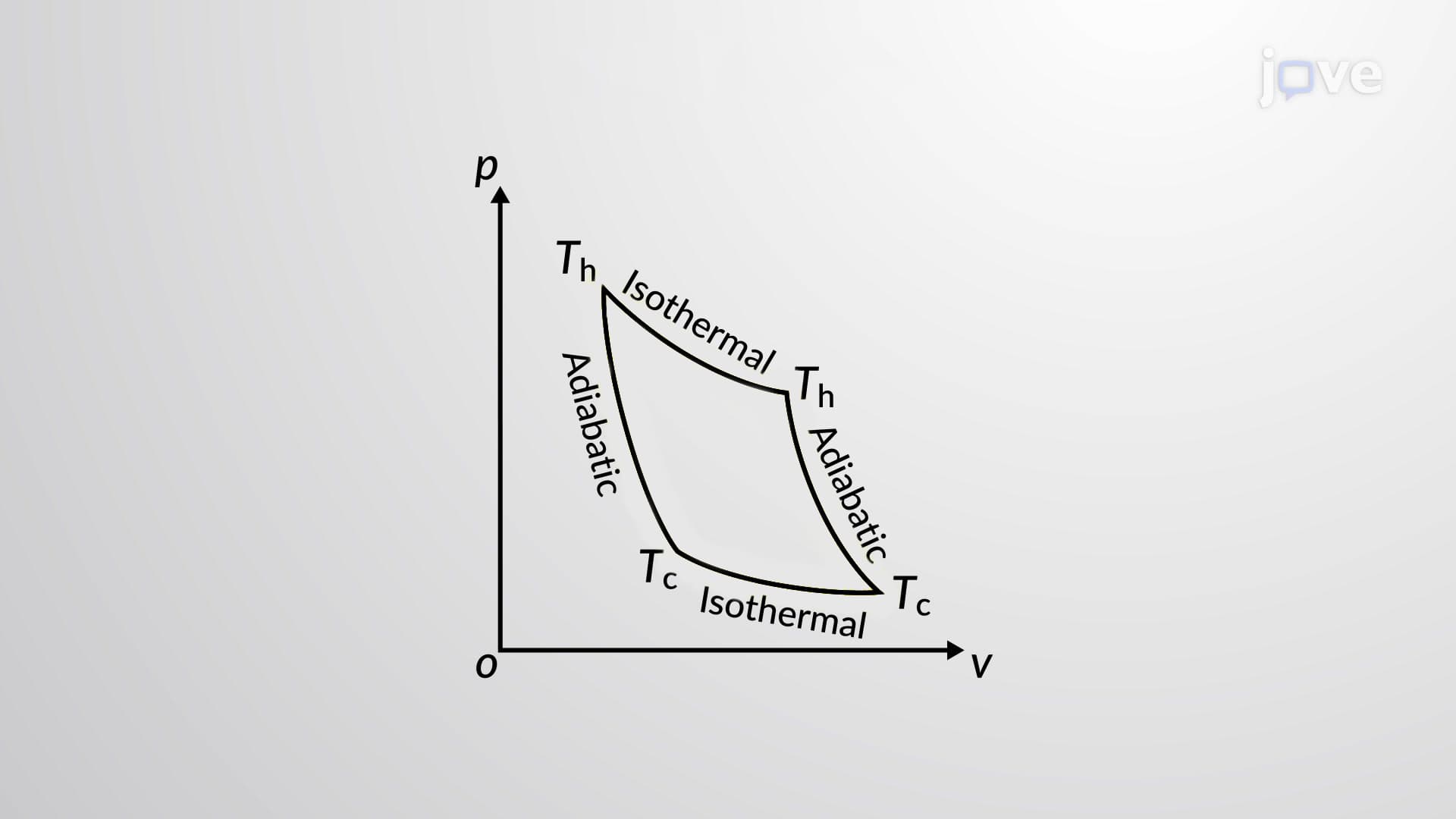

The Carnot Cycle01:30

The Carnot Cycle

2.9K
Converting work to heat is an irreversible process, and the purpose of a heat engine is to reverse the effect partially. Heat engines aim to increase the efficiency of the reversal, that is, maximize the work retrieved from heat. If the efficiency of a heat engine were 100%, it would imply reversing the process completely without introducing any other effect. Thus, it would violate the second law of thermodynamics.
What could be the theoretical limit to the efficiency of a heat engine? The...
2.9K
Mechanisms of Heat Transfer01:14

Mechanisms of Heat Transfer

320
Heat transfer between the human body and its environment occurs through four main mechanisms: conduction, convection, radiation, and evaporation.
Conduction, accounting for approximately 3% of body heat loss at rest, is the process of exchanging heat between molecules of two materials in direct contact. This can result in both heat loss and gain. For instance, when the body is submerged in water, which conducts heat 20 times more effectively than air, it can either lose or gain significant...
320
Types Of Superconductors01:28

Types Of Superconductors

972
A superconductor is a substance that offers zero resistance to the electric current when it drops below a critical temperature. Zero resistance is not the only interesting phenomenon as materials reach their transition temperatures. A second effect is the exclusion of magnetic fields. This is known as the Meissner effect. A light, permanent magnet placed over a superconducting sample will levitate in a stable position above the superconductor. High-speed trains that levitate on strong...
972
Mechanisms of Heat Transfer II01:20

Mechanisms of Heat Transfer II

3.2K
In convection, thermal energy is carried by the large-scale flow of matter. Ocean currents and large-scale atmospheric circulation, which result from the buoyancy of warm air and water, transfer hot air from the tropics toward the poles and cold air from the poles toward the tropics. The Earth’s rotation interacts with those flows, causing the observed eastward flow of air in the temperate zones. Convection dominates heat transfer by air, and the amount of available space for the airflow...
3.2K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Coherent microwave comb generation via the Josephson effect.

Nature communications·2026
Same author

Coverage-Dependent Structural Evolution of CoBr<sub>2</sub> at the Au(111) Interface.

Advanced science (Weinheim, Baden-Wurttemberg, Germany)·2025
Same author

Emergence of Moiré Dirac Fermions at the Interface of Topological and 2D Magnetic Insulators.

ACS nano·2025
Same author

Supercurrent time division multiplexing with solid-state integrated hybrid superconducting electronics.

Nature communications·2025
Same author

Biharmonic-Drive Tunable Josephson Diode.

Nano letters·2025
Same author

Low temperature atomic layer deposition of boron nitride using the <i>in situ</i> decomposition of ammonium carbamate.

Chemical communications (Cambridge, England)·2025
Same journal

Interplay between oxygen redox and interfacial stability of Li-rich positive electrodes in sulfide-based all-solid-state batteries.

Nature communications·2026
Same journal

Breaking dependence on melanisation imparts diversity to a dogmatic invasion strategy of phytopathogenic fungi.

Nature communications·2026
Same journal

Hydroxyl-rich nanocavities on perovskite enable nearly barrierless intramolecular hydrogen transfer for nitrate electroreduction to ammonia.

Nature communications·2026
Same journal

Household mobility responses to weather extremes in Kyrgyzstan.

Nature communications·2026
Same journal

Autonomous Motion Vision with Tri-bulk-heterojunctioned Organic Adaptation Transistor.

Nature communications·2026
Same journal

Tissue-adhesive hydrogel optical fiber for peripheral optogenetic neuromodulation.

Nature communications·2026
See all related articles

Related Experiment Video

Updated: Jun 24, 2025

Scalable Quantum Integrated Circuits on Superconducting Two-Dimensional Electron Gas Platform
05:39

Scalable Quantum Integrated Circuits on Superconducting Two-Dimensional Electron Gas Platform

Published on: August 2, 2019

9.6K

Superconducting spintronic heat engine.

Clodoaldo Irineu Levartoski de Araujo1,2, Pauli Virtanen3, Maria Spies1

  • 1NEST, Istituto Nanoscienze-CNR and Scuola Normale Superiore, Pisa, Italy.

Nature Communications
|June 6, 2024
PubMed
Summary
This summary is machine-generated.

Researchers developed a superconducting spintronic heat engine using a novel tunnel junction. This device operates at cryogenic temperatures and demonstrates controllable thermoelectric voltage, enabling a thermoelectric memory cell.

More Related Videos

Asymmetric Thermoelectrochemical Cell for Harvesting Low-grade Heat under Isothermal Operation
09:09

Asymmetric Thermoelectrochemical Cell for Harvesting Low-grade Heat under Isothermal Operation

Published on: February 5, 2020

6.9K
Comparison of Two Different Synthesis Methods of Single Crystals of Superconducting Uranium Ditelluride
04:51

Comparison of Two Different Synthesis Methods of Single Crystals of Superconducting Uranium Ditelluride

Published on: July 8, 2021

2.8K

Related Experiment Videos

Last Updated: Jun 24, 2025

Scalable Quantum Integrated Circuits on Superconducting Two-Dimensional Electron Gas Platform
05:39

Scalable Quantum Integrated Circuits on Superconducting Two-Dimensional Electron Gas Platform

Published on: August 2, 2019

9.6K
Asymmetric Thermoelectrochemical Cell for Harvesting Low-grade Heat under Isothermal Operation
09:09

Asymmetric Thermoelectrochemical Cell for Harvesting Low-grade Heat under Isothermal Operation

Published on: February 5, 2020

6.9K
Comparison of Two Different Synthesis Methods of Single Crystals of Superconducting Uranium Ditelluride
04:51

Comparison of Two Different Synthesis Methods of Single Crystals of Superconducting Uranium Ditelluride

Published on: July 8, 2021

2.8K

Area of Science:

  • Condensed Matter Physics
  • Quantum Engineering
  • Materials Science

Background:

  • Heat engines are crucial for energy conversion, with thermoelectricity offering a pathway for electrical heat engines.
  • Superconducting spintronic devices exhibit strong thermoelectric effects at cryogenic temperatures, outperforming conventional technologies.
  • Existing thermoelectric devices face limitations at very low temperatures, necessitating new approaches.

Purpose of the Study:

  • To realize and characterize a superconducting spintronic heat engine.
  • To investigate the efficiency and thermoelectric properties of a ferromagnetic insulator/superconductor/insulator/ferromagnet tunnel junction.
  • To demonstrate the potential for thermoelectric memory applications.

Main Methods:

  • Fabrication of a ferromagnetic insulator/superconductor/insulator/ferromagnet tunnel junction (EuS/Al/AlOx/Co).
  • Quantification of engine efficiency across a temperature range (25 mK to 800 mK) and varying load resistances.
  • Measurement of thermoelectric voltage with different magnetic layer orientations.

Main Results:

  • Successful realization of a superconducting spintronic heat engine.
  • Demonstrated tunable thermoelectric voltage by altering ferromagnetic layer alignment (parallel vs. anti-parallel).
  • Achieved control over the Seebeck coefficient sign and magnitude, enabling a thermoelectric memory cell function.

Conclusions:

  • The superconducting spintronic heat engine operates effectively at cryogenic temperatures.
  • The device offers a novel approach to thermoelectric energy conversion and memory applications.
  • A theoretical model was developed to explain experimental findings and predict device performance.
