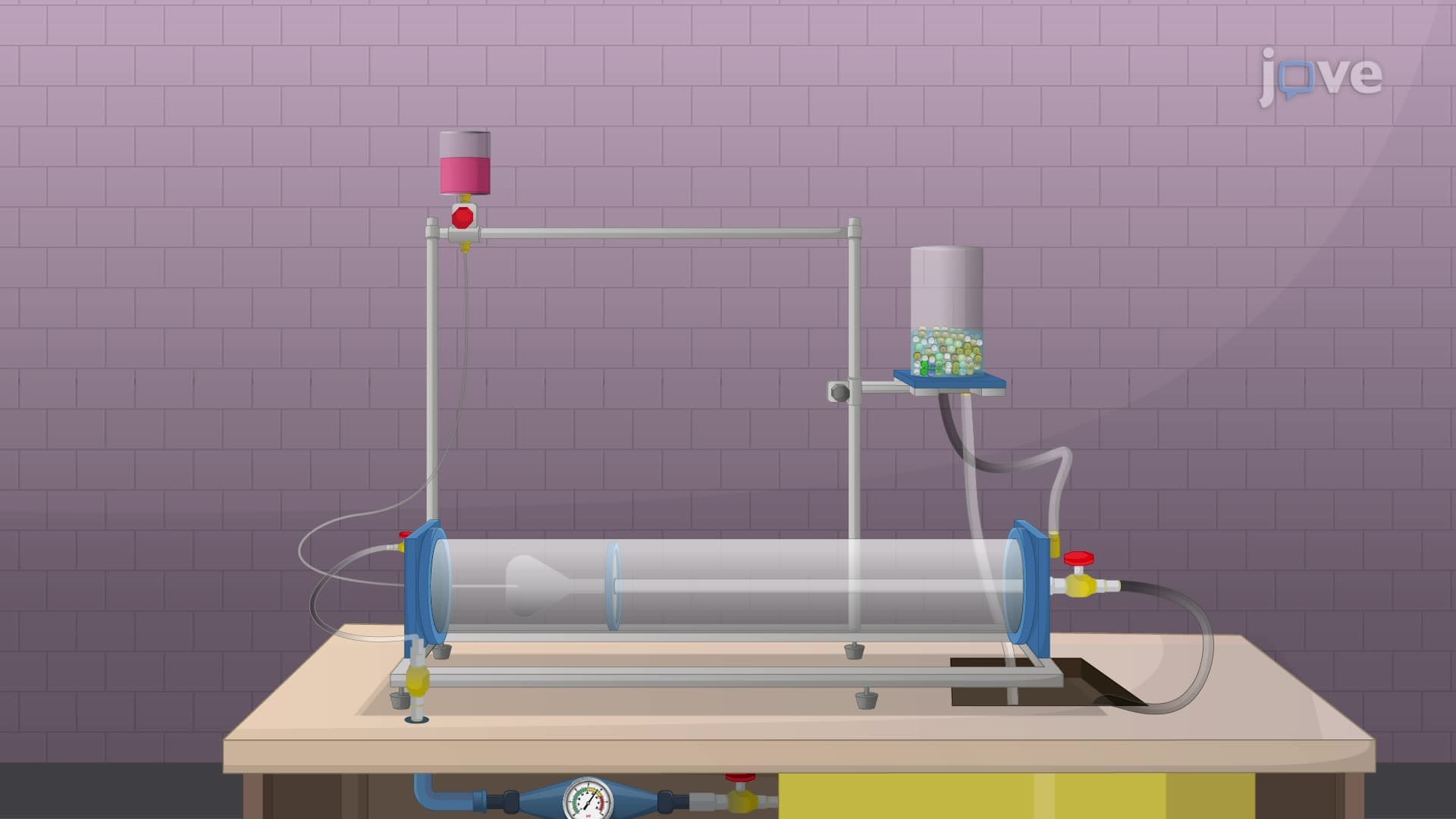

General Characteristics of Pipe Flow I

1.2K
Pipe flow refers to the movement of fluids within fully enclosed conduits, typically cylindrical in shape, such as water pipes or hydraulic hoses. These conduits are designed to withstand high-pressure gradients that drive fluid movement, contrasting with open-channel flows, where gravity is the primary driving force. Rectangular conduits, like air conditioning and heating ducts, generally operate at lower pressures and are less suited for high-pressure applications.
The classification of fluid...
1.2K
Pipe Flowrate Measurement01:28

Pipe Flowrate Measurement

662
In pipe flow measurement, orifice, nozzle, and Venturi meters are commonly used to determine fluid flowrates by constricting the flow area, which increases fluid velocity and reduces pressure. This pressure difference, governed by Bernoulli's principle and adjusted for real-world conditions, is essential for calculating flowrate. Each meter type is suited to specific applications based on accuracy, efficiency, and compatibility with various flow conditions.
The orifice meter is a simple,...
662
Pipe Flowrate Measurement: Problem Solving01:28

Pipe Flowrate Measurement: Problem Solving

527
A spray tank system is engineered to uniformly distribute a pest-control liquid across plants by using a pressurized mechanism. The tank, pressurized to 150 kPa, holds the pesticide at a height of 0.80 meters. Liquid flows from the tank through a 1.9 meter pipe with a diameter of 0.015 meters, angled at 0.698 radians, ultimately reaching a 0.007 meter nozzle that sprays the pesticide. Accurate calculation of the system's flow rate is crucial to ensure uniform application, and this is...
527
Laminar Flow01:27

Laminar Flow

1.0K
Laminar flow represents a smooth, orderly fluid motion where particles move along parallel paths, resulting in minimal mixing between layers. Streamlined particle paths characterize this flow regime and occur under conditions where viscous forces dominate over inertial forces. The distinction between laminar, transitional, and turbulent flow is primarily determined by the Reynolds number, a dimensionless quantity calculated as:
1.0K
Steady, Laminar Flow in Circular Tubes01:23

Steady, Laminar Flow in Circular Tubes

186
Hagen-Poiseuille flow describes a viscous fluid's steady, incompressible flow through a cylindrical tube with a constant radius R. This flow profile is often applied to understand fluid transport in narrow channels, such as capillaries. It serves as a foundational example of laminar flow. In this model, cylindrical coordinates (r,θ,z) are used to describe the radial (r), angular (θ), and axial (z) dimensions within the tube. For Hagen-Poiseuille flow, the velocity profile is...
186

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Oil-Water Flow Monitoring in Wellbores with Inflow Control Valves Using Distributed Acoustic Sensing.

Sensors (Basel, Switzerland)·2026
Same author

Leakage Detection Using Distributed Acoustic Sensing in Gas Pipelines.

Sensors (Basel, Switzerland)·2025
Same author

DASCore: a Python Library for Distributed Fiber Optic Sensing.

Seismica·2024
Same author

Distributed Acoustic Sensing (DAS) Response of Rising Taylor Bubbles in Slug Flow.

Sensors (Basel, Switzerland)·2022
Same journal

Enhancing Unsupervised Multi-Source Domain Adaptation for Person Re-Identification via Mixture of Experts and Graph-Based Relation.

Sensors (Basel, Switzerland)·2026
Same journal

Development of an Instrumented Glove for Palmar Pressure Assessment in Kayakers.

Sensors (Basel, Switzerland)·2026
Same journal

Development and Experimental Validation of an Autonomous IoT-Based Monitoring System for Real-Time Water Quality Assessment in the Amazon River.

Sensors (Basel, Switzerland)·2026
Same journal

Semi-Supervised Adversarial Learning Framework for Controller Area Network Bus Intrusion Detection.

Sensors (Basel, Switzerland)·2026
Same journal

Smart Optimization Method for Safety Signs in Innovative Manufacturing Environments Integrating Industrial Field IoT Sensors and Knowledge Graphs.

Sensors (Basel, Switzerland)·2026
Same journal

Three-Dimensional Modeling and Performance Analysis of Dynamic mmWave V2I Networks Based on Stochastic Geometry.

Sensors (Basel, Switzerland)·2026
See all related articles

Related Experiment Video

Updated: Jun 23, 2025

Measurements of Local Instantaneous Convective Heat Transfer in a Pipe - Single and Two-phase Flow
08:25

Measurements of Local Instantaneous Convective Heat Transfer in a Pipe - Single and Two-phase Flow

Published on: April 30, 2018

7.1K

Characterization of Gas-Liquid Two-Phase Slug Flow Using Distributed Acoustic Sensing in Horizontal Pipes.

Sharifah Ali1, Ge Jin2, Yilin Fan1

  • 1Petroleum Engineering Department, Colorado School of Mines, Golden, CO 80401, USA.

Sensors (Basel, Switzerland)
|June 19, 2024
PubMed
Summary
This summary is machine-generated.

Distributed acoustic sensing (DAS) offers a non-intrusive method for monitoring gas-liquid slug flow in pipes. This technology enables real-time characterization of flow parameters, improving industrial operations and safety.

Keywords:
distributed acoustic sensingdistributed fiber-optic sensingflow monitoringgas–liquid slug flowhorizontal pipe flowmultiphase flow metermultiphase flow sensorsslug flow characterization

More Related Videos

Visualization of Flow Field Around a Vibrating Pipeline Within an Equilibrium Scour Hole
00:09

Visualization of Flow Field Around a Vibrating Pipeline Within an Equilibrium Scour Hole

Published on: August 26, 2019

5.6K
Fabrication, Operation and Flow Visualization in Surface-acoustic-wave-driven Acoustic-counterflow Microfluidics
12:26

Fabrication, Operation and Flow Visualization in Surface-acoustic-wave-driven Acoustic-counterflow Microfluidics

Published on: August 27, 2013

17.1K

Related Experiment Videos

Last Updated: Jun 23, 2025

Measurements of Local Instantaneous Convective Heat Transfer in a Pipe - Single and Two-phase Flow
08:25

Measurements of Local Instantaneous Convective Heat Transfer in a Pipe - Single and Two-phase Flow

Published on: April 30, 2018

7.1K
Visualization of Flow Field Around a Vibrating Pipeline Within an Equilibrium Scour Hole
00:09

Visualization of Flow Field Around a Vibrating Pipeline Within an Equilibrium Scour Hole

Published on: August 26, 2019

5.6K
Fabrication, Operation and Flow Visualization in Surface-acoustic-wave-driven Acoustic-counterflow Microfluidics
12:26

Fabrication, Operation and Flow Visualization in Surface-acoustic-wave-driven Acoustic-counterflow Microfluidics

Published on: August 27, 2013

17.1K

Area of Science:

  • Engineering
  • Physics
  • Materials Science

Background:

  • Gas-liquid two-phase slug flow is prevalent in industries like oil and gas, posing operational challenges.
  • Traditional multiphase flow sensors are often intrusive, costly, and limited in harsh environments.
  • Accurate, real-time monitoring of slug flow is critical for process optimization and safety.

Purpose of the Study:

  • To investigate the application of distributed acoustic sensing (DAS) for quantitative monitoring of gas-liquid two-phase slug flow.
  • To develop and validate new algorithms for characterizing slug flow dynamics using DAS data.
  • To assess the advantages of DAS over conventional methods for multiphase flow measurement.

Main Methods:

  • Experiments were conducted using a transparent pipe with a helically wrapped fiber optic cable connected to a DAS integrator.
  • Mineral oil and compressed air were used to simulate various gas-liquid flow conditions.
  • New algorithms were developed to analyze DAS signals for slug frequency, velocity, and length measurements.
  • High-speed camera validation was performed to ensure measurement accuracy.

Main Results:

  • DAS successfully captured and characterized various slug flow regimes under different flow rates and gas-oil ratios.
  • Developed algorithms accurately determined slug frequency, translational velocity, slug body length, slug unit length, and liquid film region.
  • Measurements from DAS showed good correlation with high-speed camera validation data.
  • New metrics for slug flow characterization, such as liquid film region length, were successfully derived from DAS data.

Conclusions:

  • Distributed acoustic sensing (DAS) provides a non-intrusive, continuous, and real-time method for monitoring gas-liquid slug flow.
  • The developed algorithms enable quantitative characterization of slug flow dynamics, including novel parameters.
  • DAS technology presents a cost-effective and robust solution for multiphase flow monitoring in challenging industrial environments.
  • This approach offers significant potential for optimizing facility design, operation, and ensuring safer practices in industries affected by slug flow.
