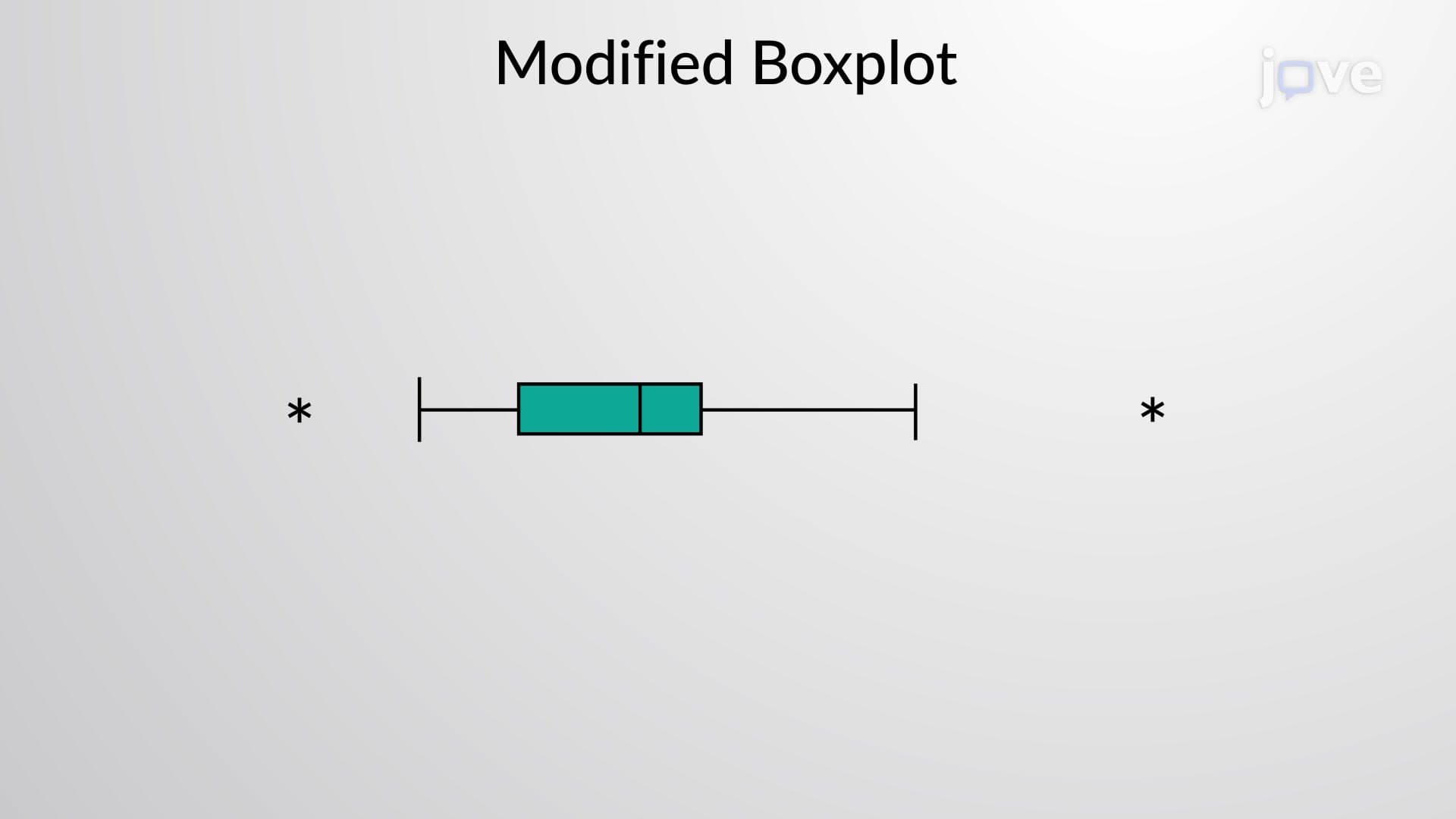

Modified Boxplots00:57

Modified Boxplots

10.9K
A standard box and whisker plot informs us about the spread of the data in a given sample. One can identify the minimum value, maximum value, first quartile value, second quartile or median value, and third quartile.
However, the box plot does not tell the reader about outliers - values that lie far from the center of the data. We can modify the standard box and whisker plot to identify the outliers and visualize the actual spread of the data in a sample.
Initially, we calculate the adjusted...
10.9K
Base Excision Repair01:54

Base Excision Repair

26.3K
One of the common DNA damages is the chemical alteration of single bases by alkylation, oxidation, or deamination. The altered bases cause mispairing and strand breakage during replication. This type of damage causes minimal change to the DNA double helix structure and can be repaired by the base excision repair (BER) pathways. BER corrects damaged DNA sequences by removing the damaged base and restoring the original base sequence using the complementary strand as a template.
The first step of...
26.3K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same authorSame journal

Design of an 8-Channel Transmit 32-Channel Receive 11.7T Head Coil and Evaluation of SNR Gains.

Magnetic resonance in medicine·2026
Same authorSame journal

Prospective Head Motion Correction in T1- and T2-Weighted Long Echo Train Sequences Using Servo Navigation.

Magnetic resonance in medicine·2026
Same author

Calibration-Free GRAPE pTx Pulses for Homogeneous Spatial-Selective Excitation at 7T.

Magnetic resonance in medicine·2026
Same author

Motion- and Field-Robust Mesoscopic Whole-Brain <math><semantics><mrow><msubsup><mi>T</mi> <mn>2</mn> <mo>*</mo></msubsup></mrow> <annotation>$$ {T}_2^{\ast } $$</annotation></semantics></math> -Weighted Imaging at 7 and 11.7 T Using Servo Navigation.

Magnetic resonance in medicine·2026
Same author

Whole-brain meso-vein imaging in living humans using fast 7-T MRI.

Science advances·2026
Same author

EM Simulation Model of a Clinically-Used RF Head Coil at 7 T.

Magnetic resonance in medicine·2026
Same journal

Dependence of the Extra-Cellular Diffusion Coefficient on the Fractions of Neurites and Cell Bodies in Gray Matter.

Magnetic resonance in medicine·2026
Same journal

Triple-Pulse <sup>23</sup>Na MRI Sequence (TriNa) for Simultaneous Acquisition of Spin-Density-Weighted and Fluid-Attenuated Images.

Magnetic resonance in medicine·2026
Same journal

Evaluation of Phantom Doping Materials in Quantitative Susceptibility Mapping.

Magnetic resonance in medicine·2026
Same journal

The Potential for Absolute Temperature Imaging Based on Brain Metabolites Using an FID-Shifting Approach in Gradient Echo Planar Spectroscopic Imaging (GREPSI).

Magnetic resonance in medicine·2026
See all related articles

Related Experiment Video

Updated: Jan 28, 2026

Author Spotlight: Optimized Lung MRI Protocol with Computationally Efficient Reconstruction Methods
05:07

Author Spotlight: Optimized Lung MRI Protocol with Computationally Efficient Reconstruction Methods

Published on: September 6, 2024

740

Echo-Planar-Based Time-of-Flight Imaging Using a Modified Interleaved Flyback Trajectory.

Simon Blömer1,2, Tony Stöcker1,2, Rüdiger Stirnberg1

  • 1German Center for Neurodegenerative Diseases (DZNE), Bonn, Germany.

Magnetic Resonance in Medicine
|January 27, 2026
PubMed
Summary
This summary is machine-generated.

A new modified interleaved flyback (miFB) method reduces flow artifacts in Echo Planar Imaging (EPI) scans. This technique significantly improves image quality and halves acquisition time for faster MRI scans.

Keywords:
3D‐EPI7Techo planar imagingflow artifactsmagnetic resonance angiography

More Related Videos

Author Spotlight: Exploring Neural Correlates of Defensive Behaviors in Fear Learning and Extinction
04:03

Author Spotlight: Exploring Neural Correlates of Defensive Behaviors in Fear Learning and Extinction

Published on: December 15, 2023

1.4K
Echo Particle Image Velocimetry
16:31

Echo Particle Image Velocimetry

Published on: December 27, 2012

15.1K

Related Experiment Videos

Last Updated: Jan 28, 2026

Author Spotlight: Optimized Lung MRI Protocol with Computationally Efficient Reconstruction Methods
05:07

Author Spotlight: Optimized Lung MRI Protocol with Computationally Efficient Reconstruction Methods

Published on: September 6, 2024

740
Author Spotlight: Exploring Neural Correlates of Defensive Behaviors in Fear Learning and Extinction
04:03

Author Spotlight: Exploring Neural Correlates of Defensive Behaviors in Fear Learning and Extinction

Published on: December 15, 2023

1.4K
Echo Particle Image Velocimetry
16:31

Echo Particle Image Velocimetry

Published on: December 27, 2012

15.1K

Area of Science:

  • Magnetic Resonance Imaging (MRI)
  • Medical Physics

Background:

  • Flow artifacts, such as ghosting and signal dropout, are common in Echo Planar Imaging (EPI) due to alternating readout polarities.
  • These artifacts can degrade image quality and complicate the interpretation of MRI scans, particularly in applications like Time-of-Flight Magnetic Resonance Angiography (TOF-MRA).

Purpose of the Study:

  • To introduce a modified interleaved flyback (miFB) approach to mitigate flow artifacts in EPI.
  • To maintain high acquisition efficiency while reducing artifacts.
  • To enable faster Magnetic Resonance Angiography (MRA) scans.

Main Methods:

  • Reconstruction of odd and even echoes in 3D-EPI separately.
  • Acquisition of missing lines using interleaved shots with inverted polarity and an additional gradient pre-lobe.
  • Combination of the miFB approach with gradient moment smoothing.
  • Comparison with the interleaved dual-echo with acceleration (IDEA) method in phantom and in vivo scans at 7 Tesla.

Main Results:

  • Significant reduction in ghosting and signal dropout compared to conventional EPI.
  • Image quality comparable to non-EPI acquisitions.
  • Acquisition time reduced by approximately 50%.

Conclusions:

  • The miFB approach effectively reduces flow artifacts in EPI.
  • This method allows for decreased acquisition times in TOF-MRA.
  • miFB offers a promising solution for efficient and high-quality EPI-based MRA.
