A Highly Elastic, Strain-Insensitive, Wearable Pressure-Temperature Dual-Mode Sensor.
Zilong Guo1, Yuanshun Wang1, Lei Huang1
1School of Mechatronic Engineering and Automation, Shanghai University, Shanghai 200444, China.
ACS Applied Materials & Interfaces
|March 6, 2026
Summary
A new wearable sensor mimics human skin, offering accurate pressure and temperature detection for health monitoring. This dual-mode sensor overcomes previous limitations, showing great potential for clinical applications like preventing pressure ulcers.
Area of Science:
- Materials Science
- Biomedical Engineering
- Wearable Technology
Background:
- Dual-mode sensors mimicking human skin are crucial for wearable health monitoring.
- Existing sensors face challenges like signal interference, poor performance, and high costs.
Purpose of the Study:
- To develop a highly elastic, strain-insensitive, wearable pressure-temperature dual-mode sensor.
- To enhance sensor performance and overcome limitations of current wearable devices.
Main Methods:
- Utilized continuous composite additive manufacturing technology.
- Prepared core-shell fibrous piezoelectric films via coaxial electrospinning for pressure sensing.
- Engineered a diamond-shaped network cross-layer interconnection structure using direct ink writing (DIW) for temperature sensing.
Main Results:
- Achieved high pressure sensitivity (24.3 mV/N) with fast response/recovery times (11/12 ms).
- Demonstrated excellent temperature sensitivity (-0.012 /°C) with a rapid 0.97s response time.
- Exhibited outstanding mutual interference immunity and strain-insensitivity.
Conclusions:
- The developed dual-mode sensor effectively integrates pressure and temperature sensing with high performance.
- Potential applications include tactile sensing, pressure ulcer prevention, and clinical monitoring of body temperature under mechanical load.
Keywords:
composite additive manufacturingdual-mode sensorshighly-elasticpressure−temperature sensorsstrain-insensitiveMore Related Videos

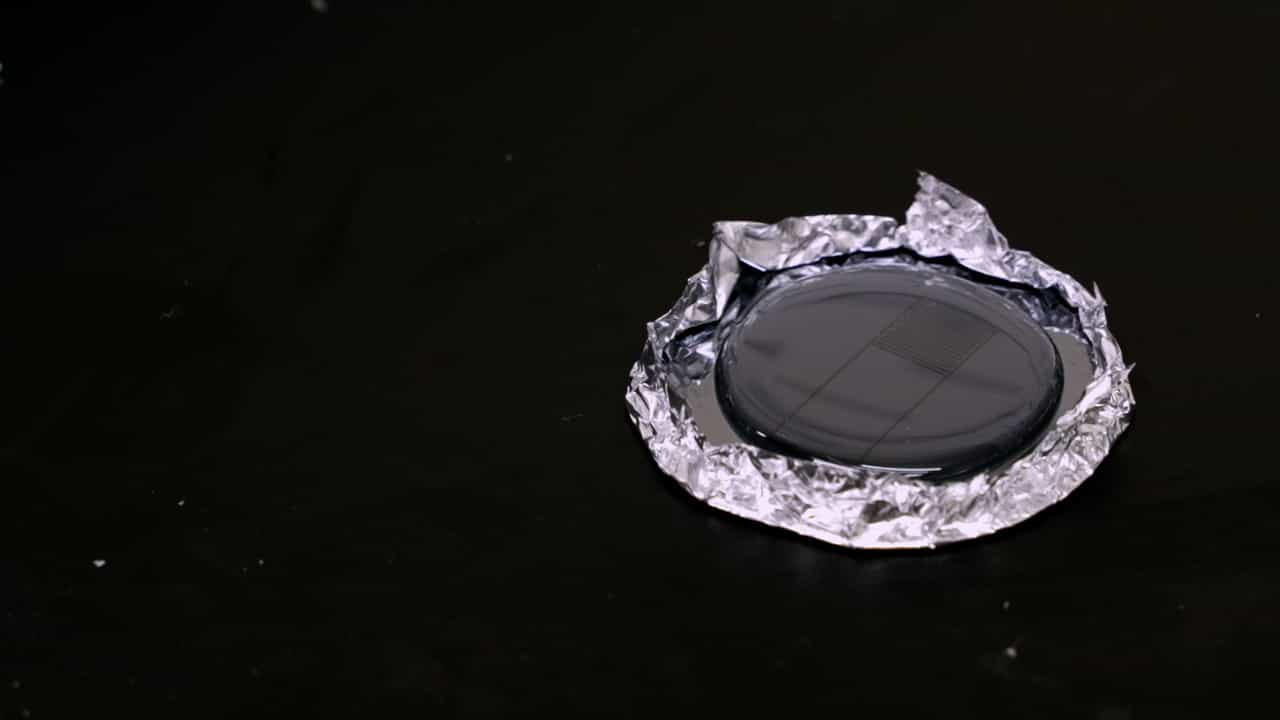

05:57Author Spotlight: Microfluidic Channel-Based Soft Electrodes and Their Application in Capacitive Pressure Sensing
Published on: March 17, 2023
4.4K

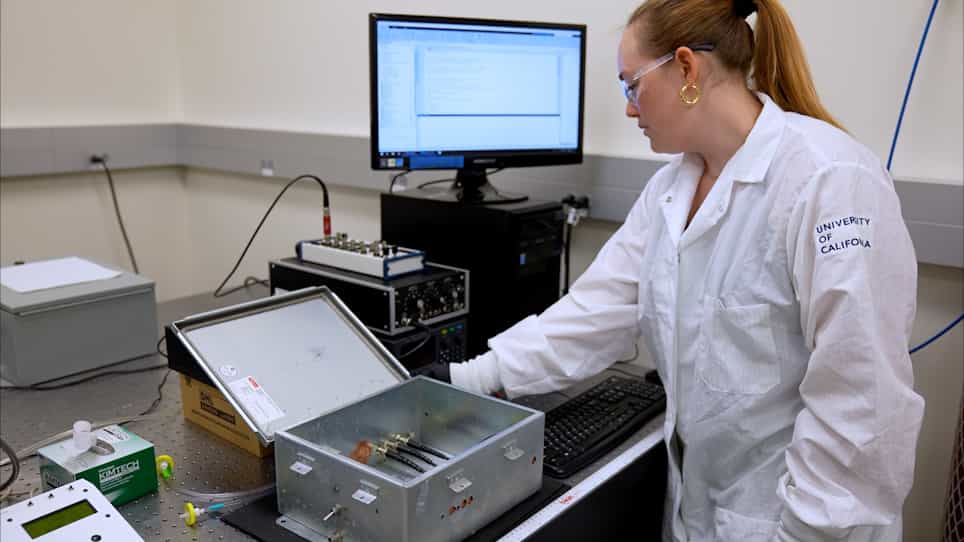

05:49Mechano-Node-Pore Sensing: A Rapid, Label-Free Platform for Multi-Parameter Single-Cell Viscoelastic Measurements
