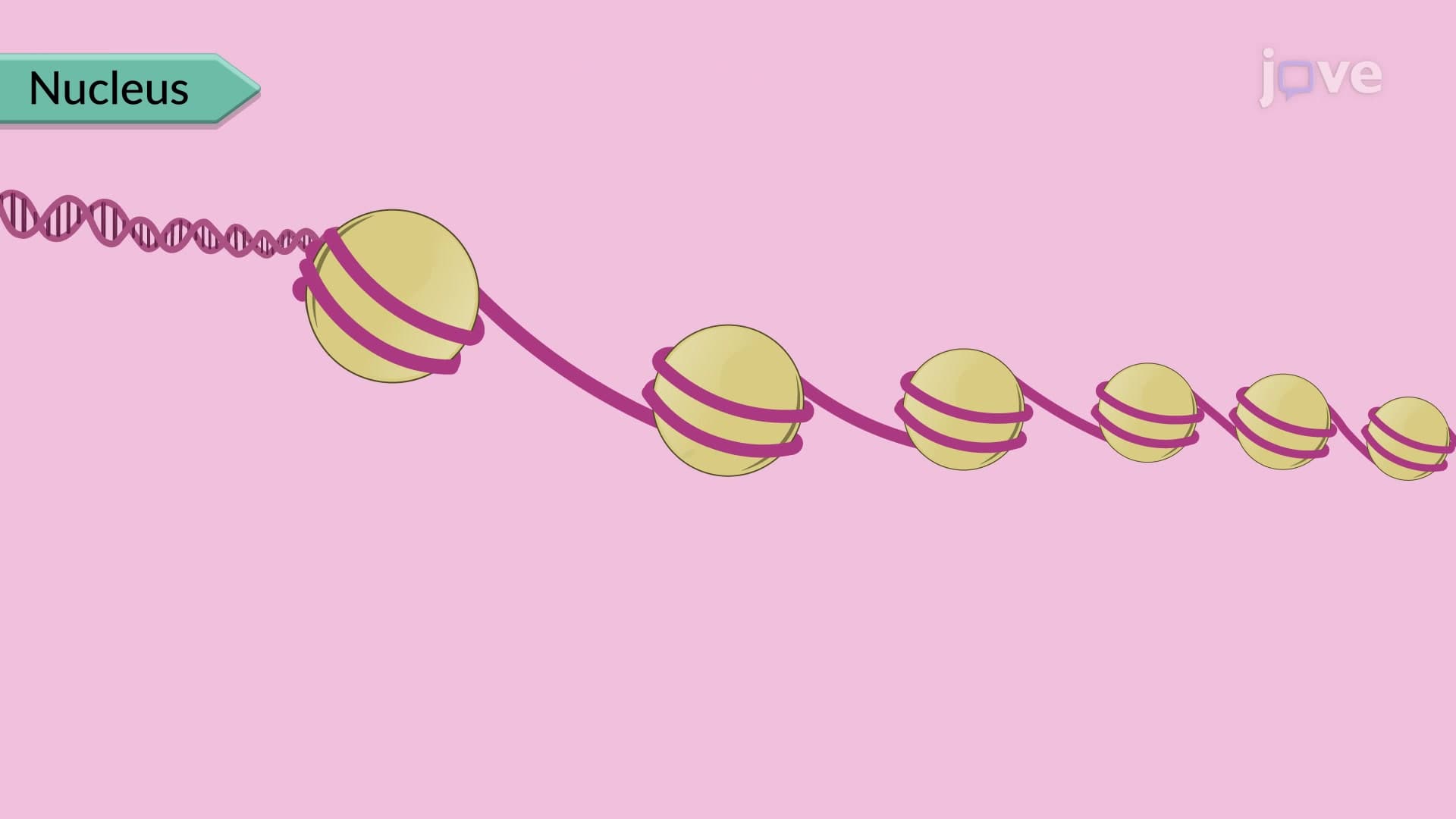

Chromatin Packaging

Chromatin Packaging

Each human somatic cell contains 6 billion base pairs of DNA. Each base pair is 0.34 nm long, meaning each diploid cell contains a staggering 2 meters of DNA. This long DNA strand is packed inside a nucleus measuring only 10-20 microns in diameter with the help of specialized DNA-binding proteins called histones. Together they form a compact DNA-protein complex called chromatin. The chromatin is further compacted into higher-order structures. The highest level of compaction is achieved during...

Chromatin Packaging

Chromatin Packaging

Each human somatic cell contains 6 billion base-pairs of DNA. Each base-pair is 0.34 nm long, which means that each diploid cell contains a staggering 2 meters of DNA. How is such a long DNA strand packed inside a nucleus measuring only 10 - 20 microns in diameter?
The chromatin
In combination with specialized DNA binding protein called Histones, the DNA double helix forms a compact DNA: protein complex called chromatin. The chromatin itself is further compacted into higher-order...

Chromatin Position Affects Gene Expression

Chromatin Position Affects Gene Expression

Chromatin is the massive complex of DNA and proteins packaged inside the nucleus. The complexity of chromatin folding and how it is packaged inside the nucleus greatly influences access to genetic information. Generally, the nucleus' periphery is considered transcriptionally repressive, while the cell's interior is considered a transcriptionally active area.
Topologically Associated Domains (TADs)
The 3-dimensional positioning of chromatin in the nucleus influences the...

Euchromatin

Euchromatin

The extent of chromatin compaction can be studied by staining chromatin using specific DNA binding dyes. Under the microscope, the dense-compacted regions take up more dye, appearing darker, while the less-compact areas take up less dye and appear lighter. Based on the compaction level, chromatins are classified into two primary forms – euchromatin and heterochromatin.
Euchromatin is the less dense region of the chromatin and stains lighter. Euchromatin contains histone H3 extensively...

Karyotyping

Karyotyping

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by

Same author

Structure, Conformations, and Diffusion in PDMS/Silica Nanocomposites via Atomistic MD Simulations.

Macromolecules·2026

Same author

Chromatin architecture and physical constriction cooperate in phenotype switching and cancer cell dissemination.

bioRxiv : the preprint server for biology·2026

Same author

The Polymer Physics and Theory Section.

Polymers·2025

Same author

Geometrically Encoded Positioning of Introns, Intergenic Segments, and Exons in the Human Genome.

Advanced science (Weinheim, Baden-Wurttemberg, Germany)·2025

Same author

Multiplexed Chromatin Analysis Using Optical Spectroscopic Statistical Nanosensing.

ACS photonics·2025

Same author

Leveraging chromatin packing domains to target chemoevasion in vivo.

Proceedings of the National Academy of Sciences of the United States of America·2025

Same journal

Complex Indel Detection: A Simulation-Based Framework and Parsing with FreeBayes.

bioRxiv : the preprint server for biology·2026

Same journal

Emulating the gingival-tooth interface during bacterial, fungal, and viral infection in a microphysiological model of the human oral cavity.

bioRxiv : the preprint server for biology·2026

Same journal

Local SNP-explained methylation variation reveals genetically anchored and exposure-associated methylation architecture in the human brain.

bioRxiv : the preprint server for biology·2026

Same journal

Perinatal Semaglutide Treatment Improves Maternal Health and Mitigates Offspring Metabolic Dysfunction in a Mouse Model of Maternal Obesity.

bioRxiv : the preprint server for biology·2026

Same journal

Pervasive cryptic selection in the human noncoding genome.

bioRxiv : the preprint server for biology·2026

Same journal

Secreted ORF8 reprograms macrophages to enhance SARS-CoV-2 infection of lung epithelial cells.

bioRxiv : the preprint server for biology·2026

See all related articles

Search research articles

Home
One Chromatin, Many Structures: From Ensemble Contact Maps To Single-cell 3d Organization.

Home
One Chromatin, Many Structures: From Ensemble Contact Maps To Single-cell 3d Organization.

Related Experiment Video

Hi-C: A Method to Study the Three-dimensional Architecture of Genomes.

Hi-C: A Method to Study the Three-dimensional Architecture of Genomes.

Published on: May 6, 2010

One Chromatin, Many Structures: From Ensemble Contact Maps to Single-Cell 3D Organization.

M A Carignano¹, V Backman¹, M Kröger²

¹Department of Biomedical Engineering, Northwestern University and Center for Physical Genomics and Engineering, Northwestern University, United States.

Biorxiv : the Preprint Server for Biology

|March 27, 2026

View abstract on PubMed

Summary

This summary is machine-generated.

The Self-Returning Excluded Volume (SR-EV) model explains chromatin folding by showing how statistical patterns, not fixed structures, create domains. This framework interprets complex genomic data by analyzing heterogeneous chromatin ensembles.

More Related Videos

Deciphering High-Resolution 3D Chromatin Organization via Capture Hi-C

Deciphering High-Resolution 3D Chromatin Organization via Capture Hi-C

Published on: October 14, 2022

Capturing Chromosome Conformation Across Length Scales

Capturing Chromosome Conformation Across Length Scales

Published on: January 20, 2023

Related Experiment Videos

Hi-C: A Method to Study the Three-dimensional Architecture of Genomes.

Hi-C: A Method to Study the Three-dimensional Architecture of Genomes.

Published on: May 6, 2010

Deciphering High-Resolution 3D Chromatin Organization via Capture Hi-C

Deciphering High-Resolution 3D Chromatin Organization via Capture Hi-C

Published on: October 14, 2022

Capturing Chromosome Conformation Across Length Scales

Capturing Chromosome Conformation Across Length Scales

Published on: January 20, 2023

Area of Science:

* *Chromatin organization and genome architecture.
* *Computational biology and biophysics.

Background:

* *Experimental assays for chromatin folding capture low-dimensional projections of heterogeneous polymer structures.
* *Understanding three-dimensional chromatin folding and its relationship to experimental observables remains a challenge.

Purpose of the Study:

* *To present an ensemble-based interpretive framework, the Self-Returning Excluded Volume (SR-EV) model, for generating and analyzing chromatin conformations.
* *To interpret experimental signatures like Hi-C loops and topologically associating domains (TADs) as ensemble-level statistical enrichments.

Main Methods:

* *Development of the SR-EV model, a minimal generator of nucleosome-resolution chromatin conformations using stochastic return rules and excluded-volume geometry.

* *Generation of large ensembles of three-dimensional chromatin configurations.

* *Projection of 3D conformations onto 2D contact maps and 1D genomic profiles; calculation of coordination number and probe-based accessibility.

Main Results:

* *The SR-EV model reproduces key experimental signatures across scales, including nanoscale packing domains, sparse single-configuration contact patterns, and ensemble-level contact enrichment consistent with TADs.
* *Hi-C loops and TADs are interpreted as statistical enrichments within heterogeneous ensembles, not invariant single-cell features.
* *A unified link is established between 3D packing, 2D contact maps, and 1D genomic profiles via coordination number and accessibility.

Conclusions:

* *Chromatin domains and TADs can emerge from minimal geometric rules and ensemble-level bias, rather than requiring explicit molecular interactions or deterministic folding.
* *The SR-EV framework highlights the probabilistic nature of genome architecture, emphasizing that chromatin organization is realized in individual cells but best analyzed through ensembles.
* *Provides a tractable reference for interpreting multimodal genomic and imaging data by distinguishing single-configuration heterogeneity from ensemble statistical organization.
