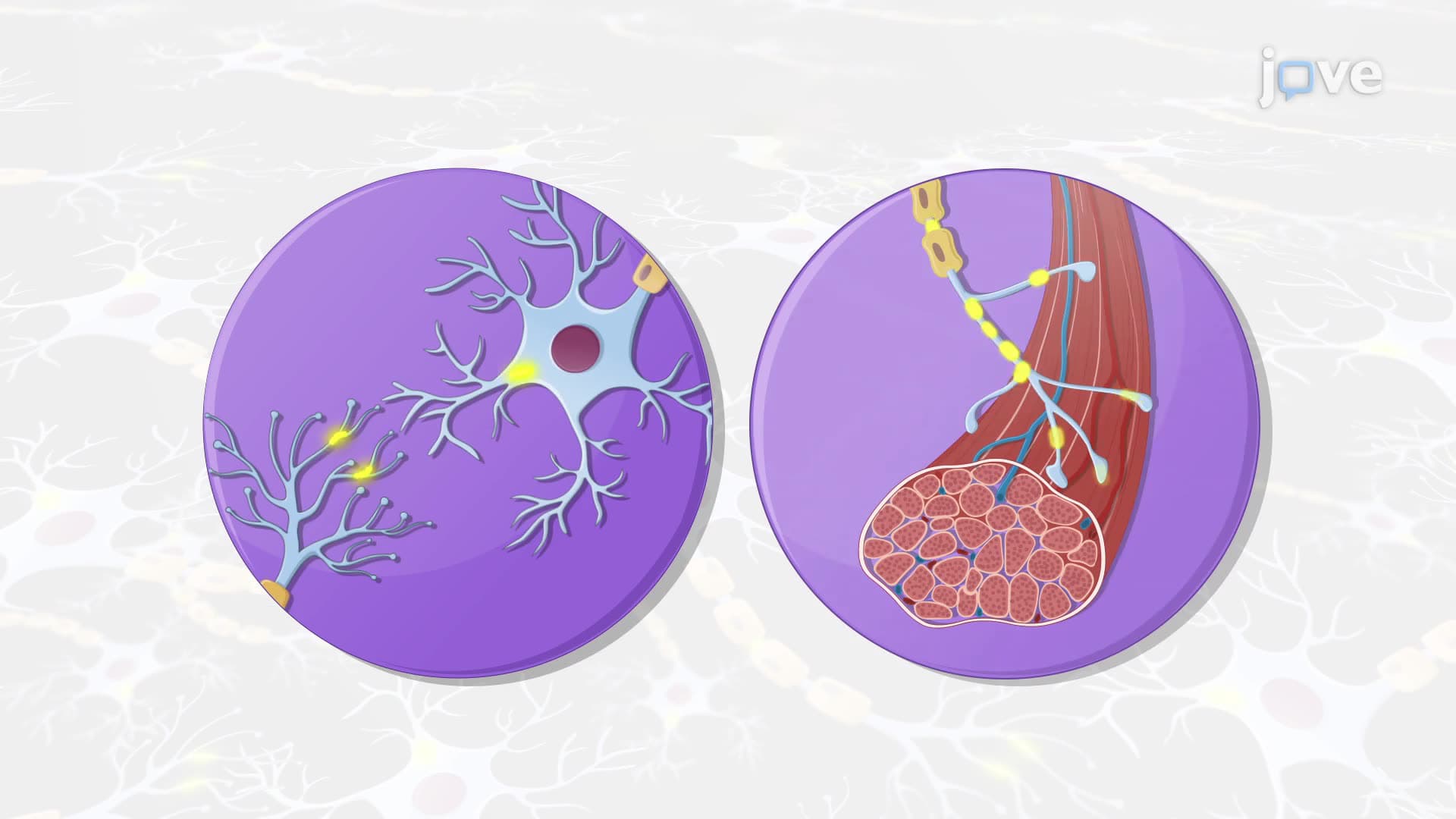

Overview of Synapses01:25

Overview of Synapses

11.3K
A synapse is a specialized structure where two neurons connect, allowing them to pass an electrical or chemical signal to another neuron. It is the point of communication between neurons. The term "synapse" is derived from the Greek word "synapsis," which means "conjunction." The entire process of neural communication revolves around the synapse. When activated, a neuron releases chemicals known as neurotransmitters into the synapse. These neurotransmitters cross the synapse and bind to...
11.3K
Electrical Synapses01:28

Electrical Synapses

12.1K
Electrical synapses found in all nervous systems play important and unique roles. In these synapses, the presynaptic and postsynaptic membranes are very close together (3.5 nm) and are actually physically connected by channel proteins forming gap junctions.
Gap junctions allow the current to pass directly from one cell to the next. In contrast, in the chemical synapse, the neurotransmitters carry the information through the synaptic cleft from one neuron to the next. They consist of two...
12.1K
Vision01:24

Vision

61.7K
Vision is the result of light being detected and transduced into neural signals by the retina of the eye. This information is then further analyzed and interpreted by the brain. First, light enters the front of the eye and is focused by the cornea and lens onto the retina—a thin sheet of neural tissue lining the back of the eye. Because of refraction through the convex lens of the eye, images are projected onto the retina upside-down and reversed.
61.7K
Neuronal Communication01:28

Neuronal Communication

5.3K
Neurons, the fundamental units of the brain and nervous system, communicate through complex electrochemical signals that underpin all cognitive and bodily functions. This communication is primarily facilitated by a process involving the generation and propagation of an action potential along the axon of the neuron. When the internal electrical charge of a neuron surpasses a certain threshold, an action potential is triggered. This rapid change in voltage travels swiftly along the axon to the...
5.3K
Neural Circuits01:25

Neural Circuits

3.3K
Neural circuits and neuronal pools are two of the main structures found in the nervous system. Neural circuits are networks of neurons that work together to carry out a specific task or process. They consist of interconnected neurons and glial cells, which provide structural and metabolic support.
Neuronal pools are collections of nerve cells with similar functions and interact through chemical and electrical signals. These pools include both interneurons (the central neural circuit nodes that...
3.3K
Photoreceptors and Visual Pathways01:22

Photoreceptors and Visual Pathways

11.2K
At the molecular level, visual signals trigger transformations in photopigment molecules, resulting in changes in the photoreceptor cell's membrane potential. The photon's energy level is denoted by its wavelength, with each specific wavelength of visible light associated with a distinct color. The spectral range of visible light, classified as electromagnetic radiation, spans from 380 to 720 nm. Electromagnetic radiation wavelengths exceeding 720 nm fall under the infrared category,...
11.2K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

DyMamba: dynamic Mamba for microscopy image semantic segmentation.

Bioinformatics (Oxford, England)·2026
Same author

Earthworm-Inspired Self-Powered Multistimuli Neuromorphic Vision Skin with Homogeneous Ion Heterogel Arrays.

ACS applied materials & interfaces·2026
Same author

A Biomimetic Self-Adaptive Neurovision Eye With an Integrated Gel Iris and Retinamorphic Architecture.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same author

A variational framework with composite sparse regularization for cryo-electron tomography reconstruction.

Bioinformatics (Oxford, England)·2026
Same author

Corrective osteotomy for distal radius malunion using 3D-printed patient-specific guides and spacers: a retrospective comparative study.

BMC musculoskeletal disorders·2026
Same author

MSFSNet: Multi-Source Few-Shot Adaptation Network for Cross-Subject Depression Recognition from EEG Signals.

IEEE journal of biomedical and health informatics·2026
Same journal

Heterogeneous Polarization Configuration Regulated by Core-Multi-Shells Structure Enabled Superior Energy Storage in BNT-Based Ceramics.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same journal

Zn<sup>2</sup> <sup>+</sup>-Mediated Densification of Amorphous Network in Ternary Eutectogel for Wireless Assistive Monitoring.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same journal

ZnZrF<sub>6</sub>-Based Electrolytes are Used in High-Stability Zinc-Ion Capacitors.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same journal

Extending Field Limits in Nanoscale Magnetic Imaging With Metamaterial-Inspired Magnetic Flux Concentrators.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same journal

Exposed {010} Crystal Surfaces Drive High Rate Performance and Cyclability in Air Stable P2-Type Cathode for Na-Ion Batteries.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same journal

ROS-Balancing MXene/MoSe<sub>2</sub> Hybrids Combat Drug-Resistant Bacteria and Accelerate Tissue Regeneration in Cutaneous Wounds.

Small (Weinheim an der Bergstrasse, Germany)·2026
See all related articles

Related Experiment Video

Updated: Apr 11, 2026

Computational Modeling of Retinal Neurons for Visual Prosthesis Research - Fundamental Approaches
10:50

Computational Modeling of Retinal Neurons for Visual Prosthesis Research - Fundamental Approaches

Published on: June 21, 2022

2.3K

Bidirectional All-Optical Synapses for Neuromorphic Computing and Vision.

Zifan Li1, Zicheng Zhang2, Zhenhui Tao1

  • 1Key Laboratory of Flexible Electronics (KLOFE) & Institute of Advanced Materials (IAM), School of Flexible Electronics (Future Technologies), Nanjing Tech University (NanjingTech), Nanjing, China.

Small (Weinheim an Der Bergstrasse, Germany)
|April 10, 2026
PubMed
Summary
This summary is machine-generated.

Researchers developed a novel all-optical synapse (AOS) using a carbon dot hybrid (CDH) for bidirectional neuroplasticity. This breakthrough enables advanced optical computing and neuromorphic imaging with high accuracy.

Keywords:
all‐opticalbidirectional synaptic plasticitycarbon dotsmotion detectionoptical neural network

More Related Videos

Optrode Array for Simultaneous Optogenetic Modulation and Electrical Neural Recording
06:36

Optrode Array for Simultaneous Optogenetic Modulation and Electrical Neural Recording

Published on: September 1, 2022

4.5K
Photodiode-Based Optical Imaging for Recording Network Dynamics with Single-Neuron Resolution in Non-Transgenic Invertebrates
10:18

Photodiode-Based Optical Imaging for Recording Network Dynamics with Single-Neuron Resolution in Non-Transgenic Invertebrates

Published on: July 9, 2020

3.4K

Related Experiment Videos

Last Updated: Apr 11, 2026

Computational Modeling of Retinal Neurons for Visual Prosthesis Research - Fundamental Approaches
10:50

Computational Modeling of Retinal Neurons for Visual Prosthesis Research - Fundamental Approaches

Published on: June 21, 2022

2.3K
Optrode Array for Simultaneous Optogenetic Modulation and Electrical Neural Recording
06:36

Optrode Array for Simultaneous Optogenetic Modulation and Electrical Neural Recording

Published on: September 1, 2022

4.5K
Photodiode-Based Optical Imaging for Recording Network Dynamics with Single-Neuron Resolution in Non-Transgenic Invertebrates
10:18

Photodiode-Based Optical Imaging for Recording Network Dynamics with Single-Neuron Resolution in Non-Transgenic Invertebrates

Published on: July 9, 2020

3.4K

Area of Science:

  • Optoelectronics
  • Materials Science
  • Neuroscience

Background:

  • All-optical synapses (AOS) are crucial for optical computing and neuromorphic imaging.
  • Current AOS often lack bidirectional weight modulation, limiting their functionality.
  • Achieving both excitatory and inhibitory outputs optically remains a significant challenge.

Purpose of the Study:

  • To develop a novel strategy for bidirectional neuroplasticity in all-optical synapses.
  • To overcome the limitations of unidirectional weight modulation in existing AOS.
  • To create a phosphorescent and photothermal carbon dot hybrid (CDH) neurotransmitter for advanced optical signal processing.

Main Methods:

  • A dual-photon-mediated strategy was employed using ultraviolet and infrared light.
  • Controllable exciton release and superposition of phosphorescent emission were utilized.
  • A phosphorescent and photothermal carbon dot hybrid (CDH) was engineered as a neurotransmitter.

Main Results:

  • Demonstrated bidirectional neuroplasticity (potentiation and depression) within the CDH neurotransmitter.
  • Achieved controllable optical logic operations and neurovision capabilities.
  • Realized real-time tracking and recognition of light objects with 97% accuracy, including trajectory, velocity, and direction.

Conclusions:

  • The developed CDH neurotransmitter enables all-optical regulation for innovative phosphorescent paradigms.
  • This work advances all-optical computing and neuromorphic imaging by overcoming unidirectional modulation limitations.
  • The dual-photon strategy offers a new pathway for designing sophisticated optical neuro-mimetic devices.
