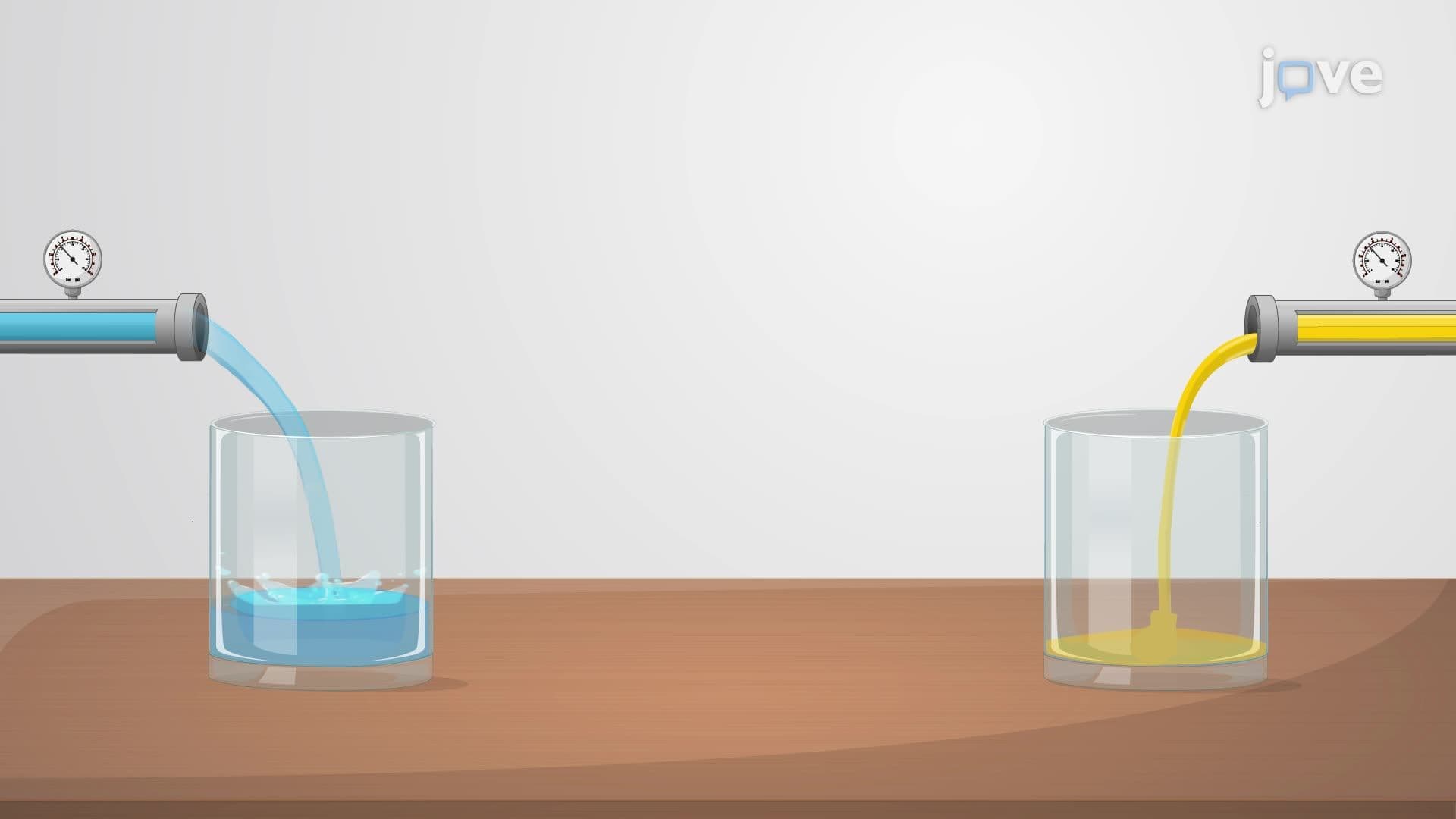

When water is poured into a glass, it falls freely and quickly, whereas if honey or maple syrup is poured over a pancake, it flows slowly and sticks to the surface of the container. This difference in the flow of different kinds of liquids arises due to the fluid friction between the liquid layers and the liquid and the surrounding material. This property of fluids is called fluid viscosity. In this example, water has a lower viscosity than honey and maple syrup.
The SI unit of viscosity is...
5.6K
Precipitation Titration Curve: Analysis01:21

Precipitation Titration Curve: Analysis

2.1K
The precipitation titration curve demonstrates the change in concentration of one reactant with the volume of titrant added. During the titration of chloride ions with silver nitrate, the precipitation titration curve is divided into three regions: before, at, and after the equivalence point. Before the equivalence point, low redissolution of the sparingly soluble silver chloride precipitate gives a low silver ion concentration. However, in the second region, representing the equivalence point,...
2.1K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

A Microfluidic Method for Simultaneous Assessment of Blood Viscosity and Red Blood Cell Aggregation During Continuous Syringe Delivery.

Sensors (Basel, Switzerland)·2026
Same author

Micro Blood Flow-Resolved Rheometry.

Micromachines·2026
Same author

Biomechanical Investigation of Red Cell Sedimentation Using Blood Shear Stress and Blood Flow Image in a Capillary Chip.

Micromachines·2023
Same author

Quantification of Blood Viscoelasticity under Microcapillary Blood Flow.

Micromachines·2023
Same author

Biomechanical Assessment of Red Blood Cells in Pulsatile Blood Flows.

Micromachines·2023
Same author

Biosensing of Haemorheological Properties Using Microblood Flow Manipulation and Quantification.

Sensors (Basel, Switzerland)·2023
Same journal

A Coumarin-Based Probe for Sequential ON-OFF-ON Detection of Cu<sup>2+</sup> and Biothiols: Naked-Eye Detection, Smartphone RGB Readout and In Vivo Imaging.

Biosensors·2026
Same journal

Electropolymerized Molecularly Imprinted Polymers Supported on Carbon-Based Materials for (Bio)sensing: Direct and Indirect Detection Strategies.

Biosensors·2026
Same journal

Progress in (Photo)electrochemical Biosensors for the Detection of Amyloid-Beta Oligomer.

Biosensors·2026
Same journal

Design and Simulation of Lamotrigine Intermittent Release from a Subcutaneous Implant with an Enzymatic Biosensor Based on Clinical Data.

Biosensors·2026
Same journal

Prediction of Chronic Kidney Disease Based on Simulated Serum Analysis by Vibrational Spectroscopy.

Biosensors·2026
Same journal

AI/ML-Assisted SERS Biosensing for Biomolecular Detection: From Direct Spectral Response to Integrated Diagnostic Systems.

Biosensors·2026
See all related articles

Related Experiment Video

Updated: Apr 28, 2026

Erythrocyte Sedimentation Rate: A Physics-Driven Characterization in a Medical Context
08:07

Erythrocyte Sedimentation Rate: A Physics-Driven Characterization in a Medical Context

Published on: March 24, 2023

4.9K

Full Hematocrit-Viscosity Curve Identification Using Three-Dataset Krieger-Dougherty Regression.

Yang Jun Kang1

  • 1Department of Mechanical Engineering, Chosun University, 10, Chosundae 1-gil, Dong-gu, Gwangju 61452, Republic of Korea.

Biosensors
|April 27, 2026
PubMed
Summary
This summary is machine-generated.

A new method simplifies blood viscosity analysis by reconstructing the full hematocrit-viscosity curve using just three data points. This approach offers an efficient and reliable alternative to traditional multi-measurement techniques for blood rheology studies.

Keywords:
K-D regression modelblood separationblood viscositycoflowing streams methodfull hematocrit–viscosity curvehematocritmicro-hemocytometermicrofluidic chipthree hematocrit–viscosity datasets

More Related Videos

Quantitative Analysis of Viscoelastic Properties of Red Blood Cells Using Optical Tweezers and Defocusing Microscopy
08:03

Quantitative Analysis of Viscoelastic Properties of Red Blood Cells Using Optical Tweezers and Defocusing Microscopy

Published on: March 25, 2022

1.5K
Controlled Microfluidic Environment for Dynamic Investigation of Red Blood Cell Aggregation
10:27

Controlled Microfluidic Environment for Dynamic Investigation of Red Blood Cell Aggregation

Published on: June 4, 2015

11.5K

Related Experiment Videos

Last Updated: Apr 28, 2026

Erythrocyte Sedimentation Rate: A Physics-Driven Characterization in a Medical Context
08:07

Erythrocyte Sedimentation Rate: A Physics-Driven Characterization in a Medical Context

Published on: March 24, 2023

4.9K
Quantitative Analysis of Viscoelastic Properties of Red Blood Cells Using Optical Tweezers and Defocusing Microscopy
08:03

Quantitative Analysis of Viscoelastic Properties of Red Blood Cells Using Optical Tweezers and Defocusing Microscopy

Published on: March 25, 2022

1.5K
Controlled Microfluidic Environment for Dynamic Investigation of Red Blood Cell Aggregation
10:27

Controlled Microfluidic Environment for Dynamic Investigation of Red Blood Cell Aggregation

Published on: June 4, 2015

11.5K

Area of Science:

  • Biomedical Engineering
  • Rheology
  • Hematology

Background:

  • Blood viscosity is crucial for understanding blood flow dynamics.
  • The relationship between hematocrit and blood viscosity is complex and vital for physiological and pathological states.
  • Current methods for determining the full hematocrit-viscosity curve are time-consuming, requiring numerous measurements.

Purpose of the Study:

  • To develop a simplified method for reconstructing the complete hematocrit-viscosity curve.
  • To validate a three-point Krieger-Dougherty (K-D) regression model for this purpose.
  • To offer an efficient alternative to conventional multi-measurement techniques.

Main Methods:

  • Preparation of blood samples: suspended, RBC-rich, and RBC-depleted blood.
  • Measurement of hematocrit using a micro-hemocytometer.
  • Measurement of blood viscosity using the coflowing streams method.
  • Application of a three-dataset K-D regression model: μ=μ0(1-ϕ/ϕm)⁻ᵅ.

Main Results:

  • The reconstructed hematocrit-viscosity curves closely matched experimental data.
  • The proposed three-point method achieved a lower root-mean-square error compared to conventional methods.
  • The K-D model's exponent was sensitive to the midpoint dataset, while μ0 was influenced by the suspending medium.

Conclusions:

  • The proposed three-dataset K-D regression method is a simple, efficient, and reliable approach for estimating the full hematocrit-viscosity curve.
  • This method reduces the number of required measurements for blood rheology analysis.
  • The findings contribute to a better understanding of blood rheological properties.
