A Variable-Impulse Hammer Impact Test (VIHIT) Method for Improved Mode Shape Identification.

Alec Jensen1, Charles Riley1

  • 1Civil Engineering Department, Oregon Institute of Technology, Klamath Falls, OR 97601, USA.

Sensors (Basel, Switzerland)
|May 13, 2026
PubMed
Summary
This summary is machine-generated.

This study introduces variable impulse hammer impact testing (VIHIT), a novel experimental modal analysis (EMA) method. VIHIT enhances impact hammer testing accuracy for structural health monitoring (SHM) by analyzing trends across varying impulse levels.

Keywords:
civil structural health monitoringimpact hammerimpulse hammermodal analysismodal parameter identificationnonlinear structuresvibration

More Related Videos

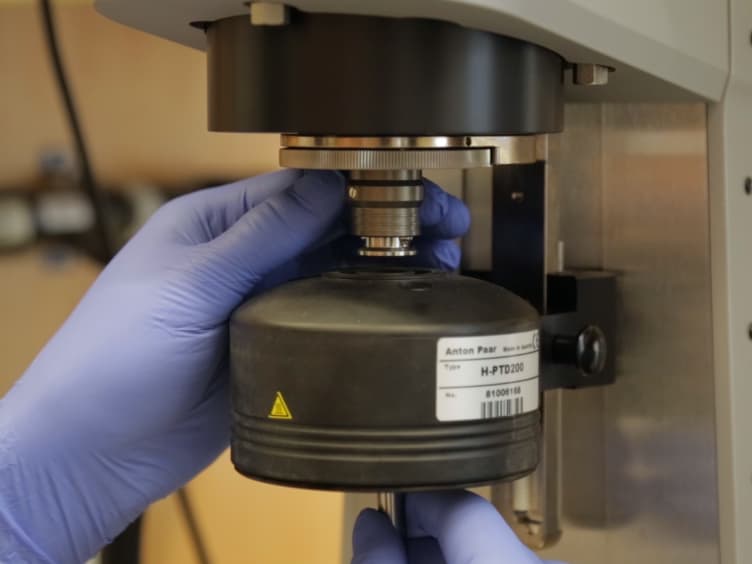

Characterizing Multiscale Mechanical Properties of Brain Tissue Using Atomic Force Microscopy, Impact Indentation, and Rheometry
11:19

Characterizing Multiscale Mechanical Properties of Brain Tissue Using Atomic Force Microscopy, Impact Indentation, and Rheometry

Published on: September 6, 2016

Related Experiment Videos

Last Updated: May 14, 2026

Data Acquisition Protocol for Determining Embedded Sensitivity Functions
07:46

Data Acquisition Protocol for Determining Embedded Sensitivity Functions

Published on: April 20, 2016

Characterizing Multiscale Mechanical Properties of Brain Tissue Using Atomic Force Microscopy, Impact Indentation, and Rheometry
11:19

Characterizing Multiscale Mechanical Properties of Brain Tissue Using Atomic Force Microscopy, Impact Indentation, and Rheometry

Published on: September 6, 2016

Area of Science:

  • Mechanical Engineering
  • Civil Engineering
  • Vibration Analysis

Background:

  • Impact hammer testing is crucial for structural health monitoring (SHM).
  • Traditional methods face limitations due to uncontrolled factors like swing power and operator consistency, especially in nonlinear structures.
  • Existing research often avoids hammer testing, opting for drop mass systems or operational modal analysis (OMA).

Purpose of the Study:

  • To develop a more accurate experimental modal analysis (EMA) approach for impact hammer testing.
  • To address the reliability issues of conventional impact hammer testing in structural dynamics.
  • To characterize nonlinear dynamic behavior and improve mode shape extraction.

Main Methods:

  • Introduced Variable Impulse Hammer Impact Testing (VIHIT) using a single-input single-output (SISO) roving hammer and fixed accelerometer.
  • Evaluated the imaginary component of the frequency response function (FRF) at various test locations using multiple impulses of varying magnitude.
  • Utilized inverse FRF analysis to extract nonlinear damping ratios and establish reproducible trends across different impulse levels.

Main Results:

  • Demonstrated reduced mode shape variability compared to conventional averaging techniques.
  • Successfully characterized impulse-dependent damping ratios in degraded timber beams, ranging from 0.02 to 0.04.
  • Showcased the method's ability to accurately extract modal properties, mode shapes, and nonlinear dynamic behavior.

Conclusions:

  • VIHIT offers a more accurate and reliable approach to impact hammer testing for SHM.
  • The method effectively addresses variability in testing by establishing reproducible trends.
  • This technique provides enhanced characterization of nonlinear dynamic behavior in structures.
