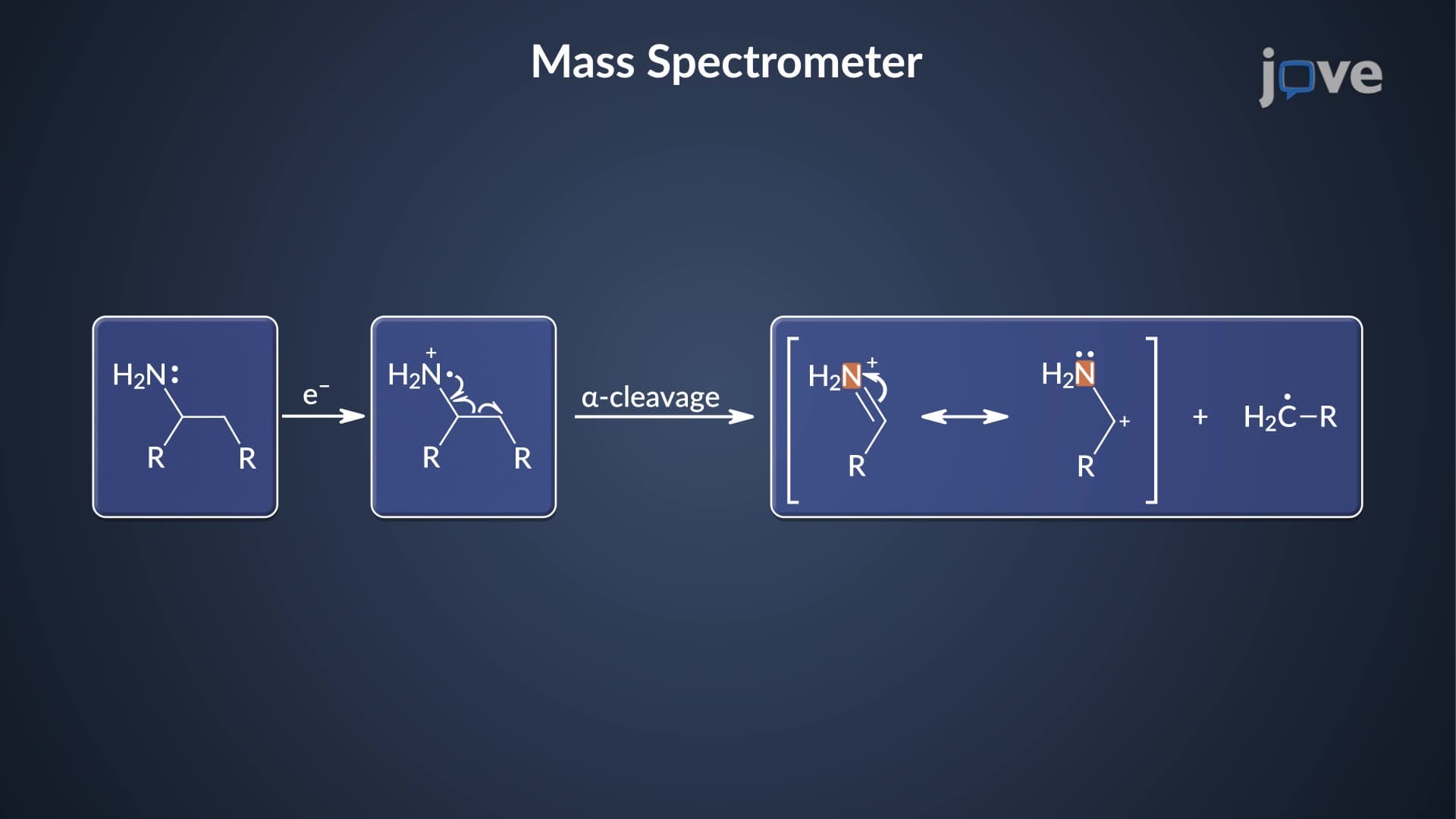

Mass Spectrometry: Amine Fragmentation00:55

Mass Spectrometry: Amine Fragmentation

Amines can be identified using mass spectroscopy based on their characteristic fragmentation patterns. The molecular ions of amines undergo fragmentation via ⍺-cleavage. The ⍺-cleavage of the carbon-carbon bonds in amines generates an alkyl radical and resonance-stabilized nitrogen-containing cation.
In amines, the number of nitrogen atoms affects the mass of the molecular ion, which is described by the nitrogen rule of mass spectrometry. This rule states that a compound containing a single or...

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Peroxidation rate constants and mechanisms of isoprenoid-derived lipids and their roles in ferroptosis.

Redox biochemistry and chemistry·2026
Same author

ToxBase: A Multidimensional ToxCast Reference Database for High-Throughput Human Exposome Analysis.

Environmental science & technology·2026
Same author

Benzalkonium Chloride-Induced Nephrotoxicity in 2D Cultures and a Human Kidney-on-a-Chip System.

Environmental science & technology·2026
Same author

Development of collagenous filaments with tuneable mechanical properties using a 3D bioprinter and molecular crowding.

Biofabrication·2026
Same author

Solution-Based Research to Address Disparities in Precision Cancer Health: A Case Report Elucidating the Design and Rationale of the Illinois Cancer Health Equity Research (I-CHER) Center.

International journal of environmental research and public health·2026
Same author

Impact of the gut microbiome on hepatic cytochrome P450 3A4 (CYP3A4) in humanized pregnane X receptor-constitutive androstane receptor-CYP3A4/3A7 mice.

Drug metabolism and disposition: the biological fate of chemicals·2026
Same journal

Prostate Cancer Detection in Urine Using the Fusion of LIBS, FTIR Dual Spectra and FTIR Reconstructed Image.

Analytical chemistry·2026
Same journal

An In Situ Gelled PCA-Na/Gelatin Hydrogel Plant Wearable Sensor Patch Based on Synergistic Enhancement Strategy for Atrazine Detection.

Analytical chemistry·2026
Same journal

Enzymatic Deacetylation as a Selective Strategy for <i>O</i>-GlcNAc Identification.

Analytical chemistry·2026
Same journal

The Cerebrospinal Fluid Proteome of Alzheimer's Disease Patients: Differentiation and Prediction of Responders and Non-Responders to Lymphatic-Venous Anastomosis.

Analytical chemistry·2026
Same journal

Profiling Protein Aggregate Size Using Single-Molecule Array Technology.

Analytical chemistry·2026
Same journal

Single-Particle Isotopic Analysis Using the Liquid Sampling-Atmospheric Pressure Glow Discharge Microplasma Coupled to an Orbitrap Mass Spectrometer.

Analytical chemistry·2026
See all related articles
  1. Home
  3. Imfrag: A Tool To Recognize In-source Fragmentation In Ion Mobility-enabled Data-independent Acquisition Workflows.
  1. Home
  3. Imfrag: A Tool To Recognize In-source Fragmentation In Ion Mobility-enabled Data-independent Acquisition Workflows.

Related Experiment Video

Navigating the Mass Spectrometry-Based Proteomic Data Using Free Computational Tools
07:01

Navigating the Mass Spectrometry-Based Proteomic Data Using Free Computational Tools

Published on: August 19, 2025

IMFrag: A Tool to Recognize In-Source Fragmentation in Ion Mobility-Enabled Data-Independent Acquisition Workflows.

Ryan Nguyen1, Anvitaa Anandkumar1, Griffin Rangel1

  • 1Department of Medicinal Chemistry, University of Washington, Seattle, Washington 98195, United States.

Analytical Chemistry
|June 6, 2026

View abstract on PubMed

Summary
This summary is machine-generated.

In untargeted metabolomics, in-source fragmentation (ISF) causes misidentification. IMFrag, using ion mobility-mass spectrometry (IM-MS), differentiates ISF from true fragments, improving compound identification in complex samples.

More Related Videos

Using a Cyclic Ion Mobility Spectrometer for Tandem Ion Mobility Experiments
08:40

Using a Cyclic Ion Mobility Spectrometer for Tandem Ion Mobility Experiments

Published on: January 20, 2022

Tracing de novo Lipids using Stable Isotope Labeling LC-TIMS-TOF MS/MS
07:12

Tracing de novo Lipids using Stable Isotope Labeling LC-TIMS-TOF MS/MS

Published on: August 23, 2024

Related Experiment Videos

Navigating the Mass Spectrometry-Based Proteomic Data Using Free Computational Tools
07:01

Navigating the Mass Spectrometry-Based Proteomic Data Using Free Computational Tools

Published on: August 19, 2025

Using a Cyclic Ion Mobility Spectrometer for Tandem Ion Mobility Experiments
08:40

Using a Cyclic Ion Mobility Spectrometer for Tandem Ion Mobility Experiments

Published on: January 20, 2022

Tracing de novo Lipids using Stable Isotope Labeling LC-TIMS-TOF MS/MS
07:12

Tracing de novo Lipids using Stable Isotope Labeling LC-TIMS-TOF MS/MS

Published on: August 23, 2024

Area of Science:

  • Analytical Chemistry
  • Biochemistry
  • Computational Chemistry

Background:

  • High-resolution mass spectrometry is vital for untargeted metabolomics and exposomics.
  • In-source fragmentation (ISF) poses a significant challenge, leading to compound misidentification.
  • Current methods struggle to distinguish ISF from genuine MS/MS fragments, hindering accurate analysis.

Purpose of the Study:

  • To develop a computational tool, IMFrag, for differentiating in-source fragments from true product ions using ion mobility-mass spectrometry (IM-MS).
  • To enhance the accuracy of compound identification in untargeted metabolomics and exposomics studies.
  • To leverage structural information from IM-MS to improve MS/MS spectral library matching.

Main Methods:

  • Development of IMFrag, a Jupyter notebook-based tool integrating IM-MS data.
  • Utilizing ion mobility signatures to distinguish fragments generated at different stages of the mass spectrometry process.
  • Application of IM-enabled data-independent acquisition (IM-DIA) for analyzing l-tryptophan and diverse small molecules.
  • Validation using complex biological matrices, including human plasma samples.

    • Main Results:

    • IMFrag successfully differentiates ISF from collision-induced dissociation (CID) fragments based on distinct ion mobility signatures.
    • Distinct mobility patterns were observed for identical fragment ions originating from different fragmentation events.
    • IM-DIA provided additional structural insights, such as dimer formation and protonation sites, not evident in standard LC-MS.
    • The tool demonstrated utility in resolving ambiguities in complex biological samples, like coeluting isobaric compounds.

    Conclusions:

    • IMFrag provides an accessible framework for analyzing MS¹ and post-IM MS² data in untargeted studies.
    • The integration of IM-MS data significantly improves the reliability of compound identification by mitigating ISF.
    • This approach enhances untargeted analysis pipelines and aids in the development of robust MS/MS spectral libraries.
