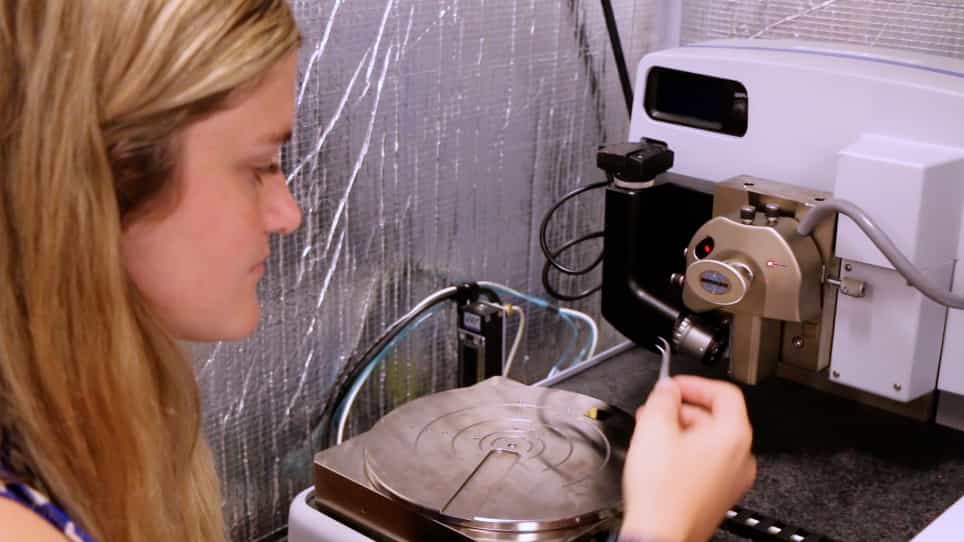

Optimizing Magnetic Force Microscopy Resolution and Sensitivity to Visualize Nanoscale Magnetic Domains
Published on: July 20, 2022
3.5K
Highly Sensitive Flexible Magnetic Sensor Based on Anisotropic Magnetoresistance Effect.
Zhiguang Wang1,2, Xinjun Wang1, Menghui Li1
1Department of Electrical and Computer Engineering, Northeastern University, Boston, MA, 02115, USA.
Advanced Materials (Deerfield Beach, Fla.)
|September 6, 2016
Summary
Researchers developed a highly sensitive flexible magnetic sensor using anisotropic magnetoresistance (AMR). This sensor demonstrates excellent stability when bent and can detect magnetic patterns with high precision.
Area of Science:
- Materials Science
- Electrical Engineering
- Physics
Background:
- Anisotropic magnetoresistance (AMR) sensors offer high sensitivity for magnetic field detection.
- Developing flexible magnetic sensors is crucial for wearable electronics and non-invasive sensing.
- Existing flexible sensors often face challenges with sensitivity and mechanical stability.
Purpose of the Study:
- To fabricate a highly sensitive flexible magnetic sensor utilizing the anisotropic magnetoresistance (AMR) effect.
- To evaluate the sensor's performance in terms of sensitivity, limit of detection, and mechanical stability under deformation.
- To demonstrate the sensor's capability in reading fine magnetic patterns.
Main Methods:
- Fabrication of a flexible sensor based on the anisotropic magnetoresistance (AMR) effect.
- Characterization of the sensor's magnetic field sensitivity and limit of detection (LOD).
- Testing the sensor's stability and performance under various bending conditions (down to 5 mm radii).
- Application of the sensor to read a 10 μm thick magnetic pattern created with ferrite magnetic inks.
Main Results:
- Achieved a high sensitivity flexible magnetic sensor.
- Observed a limit of detection (LOD) as low as 150 nT.
- Demonstrated excellent deformation stability, maintaining performance after bending to a 5 mm radius.
- Successfully read a 10 μm thick magnetic pattern formed by ferrite magnetic inks.
Conclusions:
- The developed flexible AMR sensor offers high sensitivity and robust mechanical stability.
- The sensor is suitable for applications requiring detection of weak magnetic fields and reading fine magnetic patterns.
- This work paves the way for advanced flexible magnetic sensing technologies.
