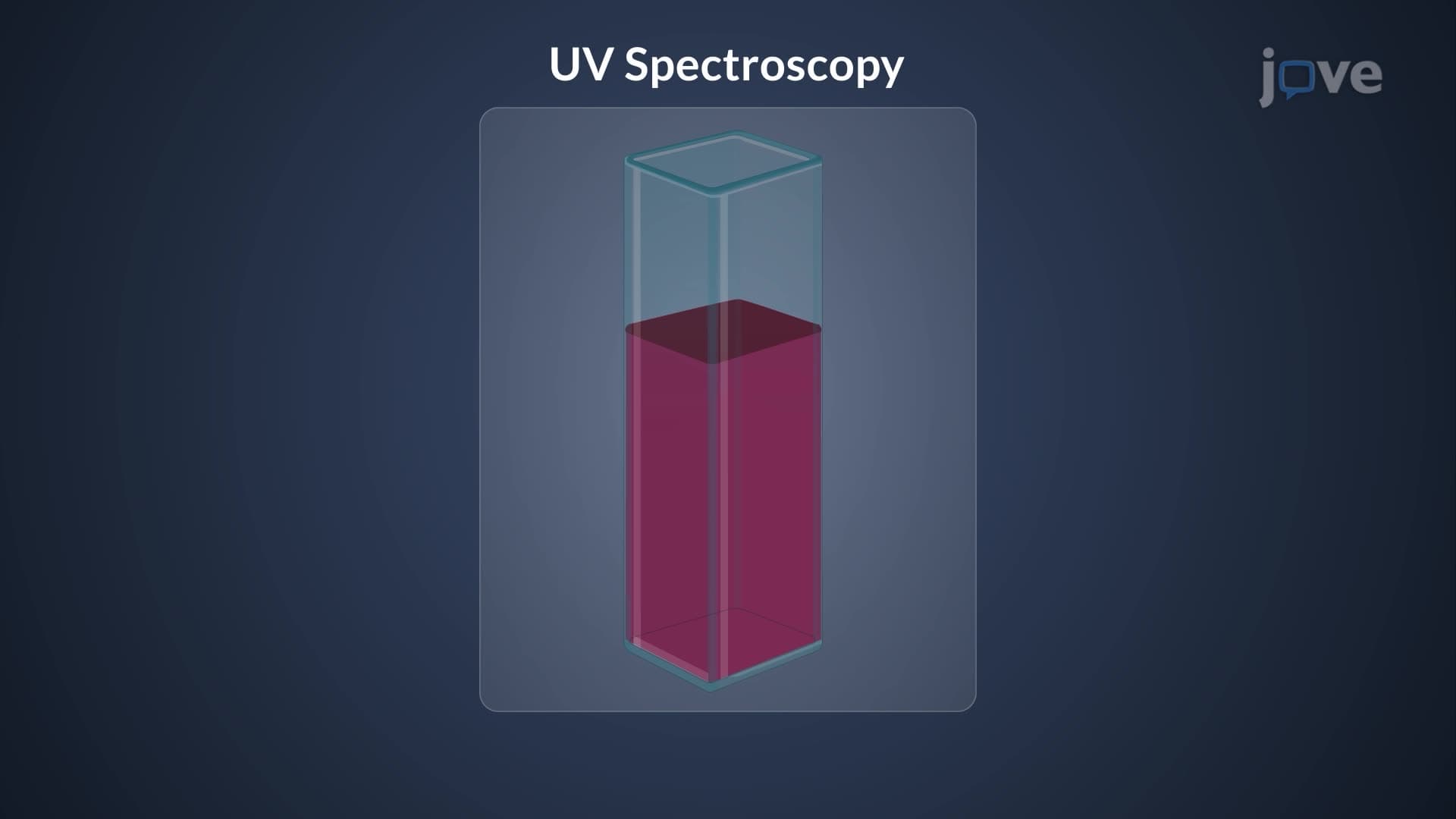

UV–Vis Spectrometers

4.2K
The absorbance of UV and visible (UV–visible) radiations is measured using a UV–visible spectrophotometer. Deuterium lamps, which emit UV radiation, and tungsten lamps, which produce radiation in the visible region, are used as light sources in UV–visible spectrophotometers. A monochromator or prism is used for diffraction grating, i.e., to split the incoming radiation into different wavelengths. A system of slits is used to focus the desired wavelength on the sample cell.
4.2K
High-Performance Liquid Chromatography: Types of Detectors01:15

High-Performance Liquid Chromatography: Types of Detectors

1.9K
The role of the detectors in High-Performance Liquid Chromatography (HPLC) is to analyze the solutes as they exit from the chromatographic column. The detector recognizes the solute's property and generates corresponding electrical signals, which are converted into a readable graph of the detector's response versus elution time called a chromatogram at the computer. There are several types of HPLC detectors, each with its own advantages and limitations, depending on the analyte...
1.9K
IR Spectrometers01:25

IR Spectrometers

3.1K
There are two main infrared (IR) spectrophotometers: dispersive IR spectrometers and Fourier transform infrared (FTIR) spectrometers. In a dispersive IR spectrometer, a beam of infrared radiation produced by a hot wire is divided into two parallel equal-intensity beams using mirrors. One beam passes through the sample, while another is a reference beam. The beams then move through the monochromator, which separates the radiations into a continuous spectrum of different frequencies. The...
3.1K
Gas Chromatography: Types of Detectors-II01:19

Gas Chromatography: Types of Detectors-II

1.3K
In gas chromatography, different detectors are employed to meet specific analytical needs. These detectors are often categorized based on their detection mechanisms and the types of compounds they are best suited to analyze. Thermal Conductivity Detectors (TCD), Flame Ionization Detectors (FID), and Electron Capture Detectors (ECD) represent common categories, each with unique operating principles and applications. However, beyond these, several other detectors are designed for more specialized...
1.3K
Atomic Emission Spectroscopy: Instrumentation01:22

Atomic Emission Spectroscopy: Instrumentation

1.4K
The instrumentation of atomic emission spectrometry (AES) involves various components, including atomization devices that convert samples into gas-phase atoms and ions. There are two main types of atomization devices: continuous and discrete atomizers.  Continuous atomizers, like plasmas and flames, introduce samples in a constant stream, while discrete atomizers inject individual samples using syringes or autosamplers. The most common discrete atomizer is the electrothermal atomizer.
1.4K
Gas Chromatography: Overview of Detectors01:13

Gas Chromatography: Overview of Detectors

2.2K
Detectors in gas chromatography (GC) help identify and quantify the components of a mixture by translating chemical properties into measurable signals, which are displayed on a chromatogram. Detectors can be categorized into two main types: destructive and non-destructive.
A non-destructive detector allows a sample to be analyzed without altering or consuming it, meaning the sample can be collected after detection for further analysis. Examples include thermal conductivity detectors and...
2.2K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Global Workflow of a Comanipulation-Based Robotic System for Cervical Spine Surgery.

The international journal of medical robotics + computer assisted surgery : MRCAS·2026
Same author

NNMT-driven metabolic reprogramming creates a NAMPT druggable vulnerability and reveals liquid biopsy biomarkers for TKI resistance in EGFR-mutant NSCLC.

Cancer letters·2025
Same author

Impact of clonal hematopoiesis on cardiovascular outcomes in cancer patients of the UK Biobank.

ESMO open·2025
Same author

[Clinical characteristics of severe human metapneumovirus infection in children and analysis of risk factors for critical illness].

Zhonghua er ke za zhi = Chinese journal of pediatrics·2025
Same author

O blood usage trends in the pediatric population 2015-2019: A multi-institutional analysis.

Transfusion·2025
Same author

Design and development of the DE-SPECT system: a clinical SPECT system for broadband multi-isotope imaging of peripheral vascular disease.

Physics in medicine and biology·2024
Same journal

Imaging Results from a Direct Conversion X-ray Detector with TlBr and CMOS Pixel Array.

IEEE transactions on nuclear science·2026
Same journal

Doping schemes in Thallium Chloride to Increase Scintillation Light Yield for Fast Gamma Detection.

IEEE transactions on nuclear science·2026
Same journal

Characterization of Thick Selenium Layers for Dual-Layer X-ray Imaging.

IEEE transactions on nuclear science·2026
Same journal

Use of Different Reactor Physics Models and CADIS Accelerated MCNP to Yield a 1 MeV Silicon Equivalent Flux for Neutron Damage.

IEEE transactions on nuclear science·2025
Same journal

TlBr Films for Direct Digital Radiography.

IEEE transactions on nuclear science·2025
Same journal

Chopped Cold Neutron Beam Activation Analysis.

IEEE transactions on nuclear science·2024
See all related articles

Related Experiment Video

Updated: Mar 7, 2026

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic
06:46

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic

Published on: August 25, 2016

11.8K

Spectroscopic Performance of Thick HgI2 Detectors.

L J Meng1, Z He1, B Alexander2

  • 1Department of Nuclear Engineering and Radiological Sciences, University of Michigan, Ann Arbor, MI 48109 USA.

IEEE Transactions on Nuclear Science
|March 3, 2017
PubMed
Summary
This summary is machine-generated.

Newly developed pixelated mercuric iodide (HgI2) detectors show excellent spectroscopic performance with energy resolutions up to 1.3%. Electron mobility-lifetime products and variations in detector properties were also characterized.

Keywords:
HgI2Spectroscopic Performance

More Related Videos

Hyperspectral Imaging as a Tool to Study Optical Anisotropy in Lanthanide-Based Molecular Single Crystals
07:24

Hyperspectral Imaging as a Tool to Study Optical Anisotropy in Lanthanide-Based Molecular Single Crystals

Published on: April 14, 2020

18.8K
Studying Soft-matter and Biological Systems over a Wide Length-scale from Nanometer and Micrometer Sizes at the Small-angle Neutron Diffractometer KWS-2
11:27

Studying Soft-matter and Biological Systems over a Wide Length-scale from Nanometer and Micrometer Sizes at the Small-angle Neutron Diffractometer KWS-2

Published on: December 8, 2016

12.8K

Related Experiment Videos

Last Updated: Mar 7, 2026

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic
06:46

Applying X-ray Imaging Crystal Spectroscopy for Use as a High Temperature Plasma Diagnostic

Published on: August 25, 2016

11.8K
Hyperspectral Imaging as a Tool to Study Optical Anisotropy in Lanthanide-Based Molecular Single Crystals
07:24

Hyperspectral Imaging as a Tool to Study Optical Anisotropy in Lanthanide-Based Molecular Single Crystals

Published on: April 14, 2020

18.8K
Studying Soft-matter and Biological Systems over a Wide Length-scale from Nanometer and Micrometer Sizes at the Small-angle Neutron Diffractometer KWS-2
11:27

Studying Soft-matter and Biological Systems over a Wide Length-scale from Nanometer and Micrometer Sizes at the Small-angle Neutron Diffractometer KWS-2

Published on: December 8, 2016

12.8K

Area of Science:

  • Semiconductor detector development
  • Nuclear instrumentation
  • Materials science

Background:

  • Pixelated detectors offer improved spatial resolution for radiation detection.
  • Mercuric iodide (HgI2) is a promising material for room-temperature semiconductor detectors.
  • Characterizing detector performance is crucial for optimizing applications.

Purpose of the Study:

  • To evaluate the spectroscopic performance of novel pixelated HgI2 detectors.
  • To measure key electronic properties, including electron mobility-lifetime product and electron lifetime.
  • To investigate spatial uniformity of detector response and internal electric fields.

Main Methods:

  • Fabrication and characterization of two pixelated HgI2 detectors (1x1x0.814 cm3 and 1x1x1.016 cm3).
  • Signal readout using discrete electronics with A-250 pre-amplifiers and digital oscilloscope.
  • Application of depth sensing technique to correct for depth-dependent photopeak variations.

Main Results:

  • Achieved energy resolutions between 0.85% and 1.3%.
  • Measured electron mobility-lifetime product of approximately 1x10^-2 cm^2/V and electron lifetime of ~200 μs.
  • Observed variations in electron drifting properties and significant non-uniformity in internal electric field strength across anode pixels.

Conclusions:

  • The developed pixelated HgI2 detectors demonstrate high spectroscopic performance.
  • Characterization revealed important electron transport properties and spatial non-uniformities.
  • Further optimization of detector design and fabrication is needed to address field non-uniformity.
