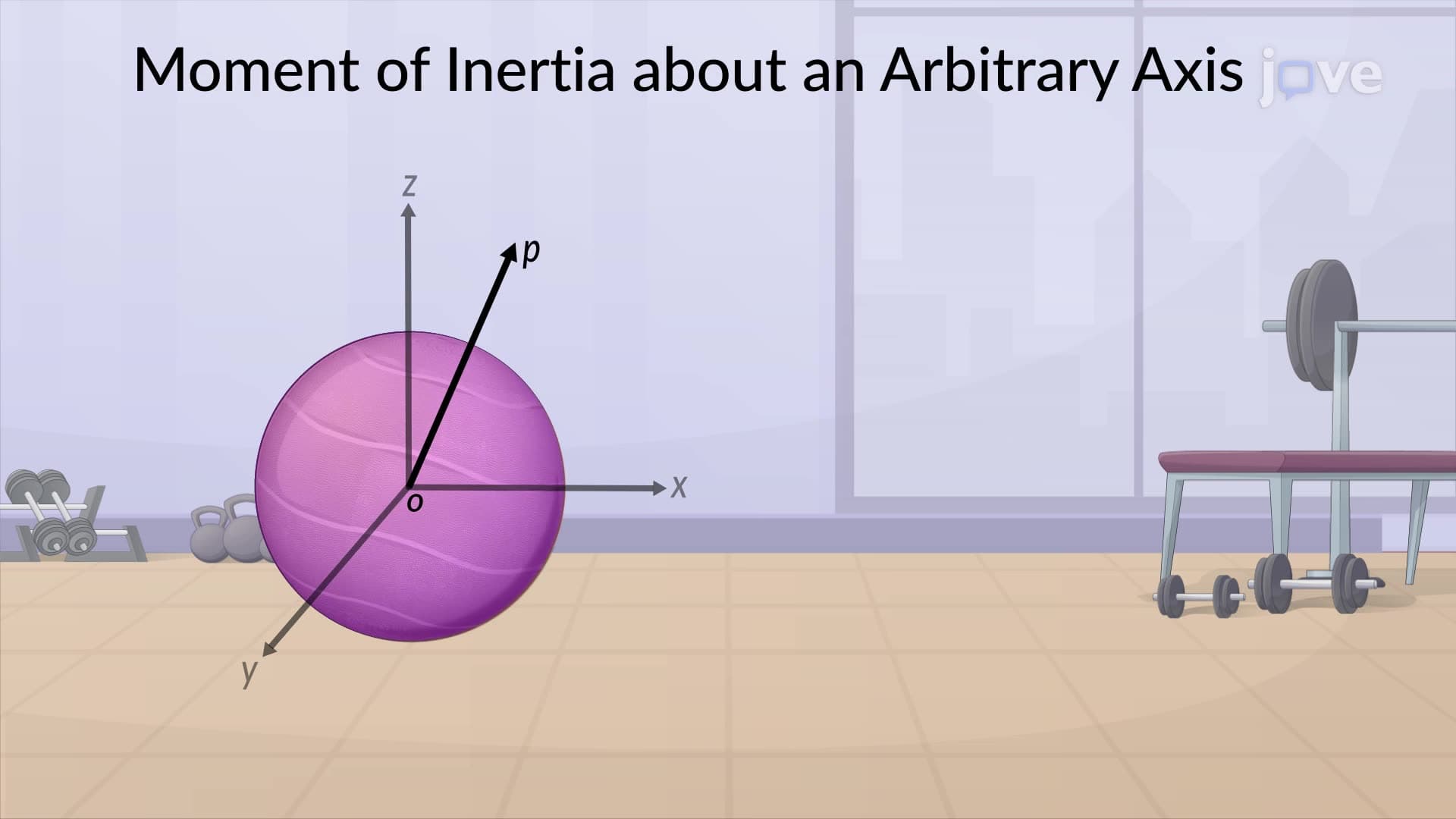

Moment of Inertia about an Arbitrary Axis

662
The moment of inertia is typically associated with principal axes, but it can also be computed for any random axis. When an arbitrary axis is under consideration, the moment of inertia is determined by integrating the mass distribution of the object along that specific axis. It is crucial in applications like the design of machinery, where components rotate about various axes, and balance and stability are essential.
In this scenario, the perpendicular distance between the chosen arbitrary axis...
662
Angular Momentum about an Arbitrary Axis01:11

Angular Momentum about an Arbitrary Axis

476
Imagine a rigid body with a mass denoted as 'm', which has its center of mass at point G and is rotating around an inertial reference frame. The angular momentum at an arbitrary point P can be calculated by taking the cross product of the position vector and linear momentum vector for each individual mass element.
The velocity of a mass element comprises its translational velocity and the relative velocity instigated by the body's rotation. Substituting the velocity equation into...
476
BIBO stability of continuous and discrete -time systems01:24

BIBO stability of continuous and discrete -time systems

950
System stability is a fundamental concept in signal processing, often assessed using convolution. For a system to be considered bounded-input bounded-output (BIBO) stable, any bounded input signal must produce a bounded output signal. A bounded input signal is one where the modulus does not exceed a certain constant at any point in time.
To determine the BIBO stability, the convolution integral is utilized when a bounded continuous-time input is applied to a Linear Time-Invariant (LTI) system....
950
Protein Networks02:26

Protein Networks

4.6K
An organism can have thousands of different proteins, and these proteins must cooperate to ensure the health of an organism. Proteins bind to other proteins and form complexes to carry out their functions. Many proteins interact with multiple other proteins creating a complex network of protein interactions.
These interactions can be represented through maps depicting protein-protein interaction networks, represented as nodes and edges. Nodes are circles that are representative of a protein,...
4.6K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

The impact of exercise interventions before, during, and following neoadjuvant therapies for locally advanced rectal cancer: a critical review.

Acta oncologica (Stockholm, Sweden)·2026
Same author

An international multi-centre study to develop and validate federated learning-based prognostic models for anal cancer.

Nature communications·2026
Same author

Towards a Multifidelity Digital Human Model for Use in Simulation Environments for Tactile Human/Robot Interactions.

Military medicine·2025
Same author

Predicting immune response targets in orthoflaviviruses through sequence homology and computational analysis.

Journal of molecular modeling·2024
Same author

Standard or high dose chemoradiotherapy, with or without the protease inhibitor nelfinavir, in patients with locally advanced pancreatic cancer: The phase 1/randomised phase 2 SCALOP-2 trial.

European journal of cancer (Oxford, England : 1990)·2024
Same author

Inhibiting Interfacial Nonradiative Recombination in Inverted Perovskite Solar Cells with a Multifunctional Molecule.

Advanced materials (Deerfield Beach, Fla.)·2024
Same journal

Gap junction architecture and synchronization clusters in the thalamic reticular nuclei.

Chaos (Woodbury, N.Y.)·2026
Same journal

Exact computation of Lyapunov exponents via system parameters in multi-triangle chaotic maps: Bifurcation analysis and circuit realization.

Chaos (Woodbury, N.Y.)·2026
Same journal

Integrating score-based generative modeling and neural ODEs for accurate representation of multiscale chaotic dynamics.

Chaos (Woodbury, N.Y.)·2026
Same journal

A data-driven tuberculosis model with behavioral changes and saturated treatment: Optimal control and cost-effectiveness study.

Chaos (Woodbury, N.Y.)·2026
Same journal

Breathers, rational solutions, and their exact physical spectra in F = 1 spinor Bose-Einstein condensates.

Chaos (Woodbury, N.Y.)·2026
Same journal

Finite invariant sets with bridging points in logistic IFS.

Chaos (Woodbury, N.Y.)·2026
See all related articles

Related Experiment Video

Updated: Feb 16, 2026

Quantification of Protein Interaction Network Dynamics using Multiplexed Co-Immunoprecipitation
07:57

Quantification of Protein Interaction Network Dynamics using Multiplexed Co-Immunoprecipitation

Published on: August 21, 2019

9.2K

Experiments with arbitrary networks in time-multiplexed delay systems.

Joseph D Hart1, Don C Schmadel1, Thomas E Murphy1

  • 1Institute for Research in Electronics and Applied Physics, University of Maryland, College Park, Maryland 20742, USA.

Chaos (Woodbury, N.Y.)
|January 1, 2018
PubMed
Summary
This summary is machine-generated.

Researchers developed a novel optoelectronic feedback loop to study complex network dynamics. This flexible system enables the investigation of synchronization and chimera states in diverse network topologies.

More Related Videos

Closed-loop Neuro-robotic Experiments to Test Computational Properties of Neuronal Networks
11:18

Closed-loop Neuro-robotic Experiments to Test Computational Properties of Neuronal Networks

Published on: March 2, 2015

10.9K
Time Multiplexing Super Resolving Technique for Imaging from a Moving Platform
06:25

Time Multiplexing Super Resolving Technique for Imaging from a Moving Platform

Published on: February 12, 2014

8.9K

Related Experiment Videos

Last Updated: Feb 16, 2026

Quantification of Protein Interaction Network Dynamics using Multiplexed Co-Immunoprecipitation
07:57

Quantification of Protein Interaction Network Dynamics using Multiplexed Co-Immunoprecipitation

Published on: August 21, 2019

9.2K
Closed-loop Neuro-robotic Experiments to Test Computational Properties of Neuronal Networks
11:18

Closed-loop Neuro-robotic Experiments to Test Computational Properties of Neuronal Networks

Published on: March 2, 2015

10.9K
Time Multiplexing Super Resolving Technique for Imaging from a Moving Platform
06:25

Time Multiplexing Super Resolving Technique for Imaging from a Moving Platform

Published on: February 12, 2014

8.9K

Area of Science:

  • Complex systems dynamics
  • Nonlinear dynamics
  • Network science

Background:

  • Investigating coupled oscillator dynamics on complex networks is challenging.
  • Previous experimental methods limited network topology due to nearest-neighbor coupling constraints.

Purpose of the Study:

  • To introduce a new experimental approach for studying complex network dynamics.
  • To enable the investigation of arbitrary network topologies with identical nodes.

Main Methods:

  • Utilized an optoelectronic feedback loop with time delays.
  • Implemented network coupling and time delays on a field-programmable gate array (FPGA).
  • Employed the space-time interpretation of time-delayed systems to create networks of coupled maps.

Main Results:

  • Successfully created large networks with arbitrary coupling topologies.
  • Demonstrated the system's advantages: identical nodes, reconfigurability, and high-speed dynamics.
  • Studied cluster synchronization and chimera states in various network sizes and topologies.

Conclusions:

  • The developed optoelectronic feedback loop offers a versatile platform for complex network research.
  • This experimental approach overcomes limitations of previous methods, allowing for broader topological investigations.
  • The system facilitates the study of emergent phenomena like synchronization and chimera states in complex systems.
