Jove
Visualize
Contact Us
JoVE
x logofacebook logolinkedin logoyoutube logo
ABOUT JoVE
OverviewLeadershipBlogJoVE Help Center
AUTHORS
Publishing ProcessEditorial BoardScope & PoliciesPeer ReviewFAQSubmit
LIBRARIANS
TestimonialsSubscriptionsAccessResourcesLibrary Advisory BoardFAQ
RESEARCH
JoVE JournalMethods CollectionsJoVE Encyclopedia of ExperimentsArchive
EDUCATION
JoVE CoreJoVE BusinessJoVE Science EducationJoVE Lab ManualFaculty Resource CenterFaculty Site
Terms & Conditions of Use
Privacy Policy
Policies

Related Concept Videos

Magnetic Field of a Solenoid01:18

Magnetic Field of a Solenoid

5.1K
A solenoid is a conducting wire coated with an insulating material, wound tightly in the form of a helical coil. The magnetic field due to a solenoid is the vector sum of the magnetic fields due to its individual turns. Therefore, for an ideal solenoid, the magnetic field within the solenoid is directly proportional to the number of turns per unit length and the current. Conversely, the magnetic field outside the solenoid is zero.
Consider a solenoid with 100 turns wrapped around a cylinder of...
5.1K

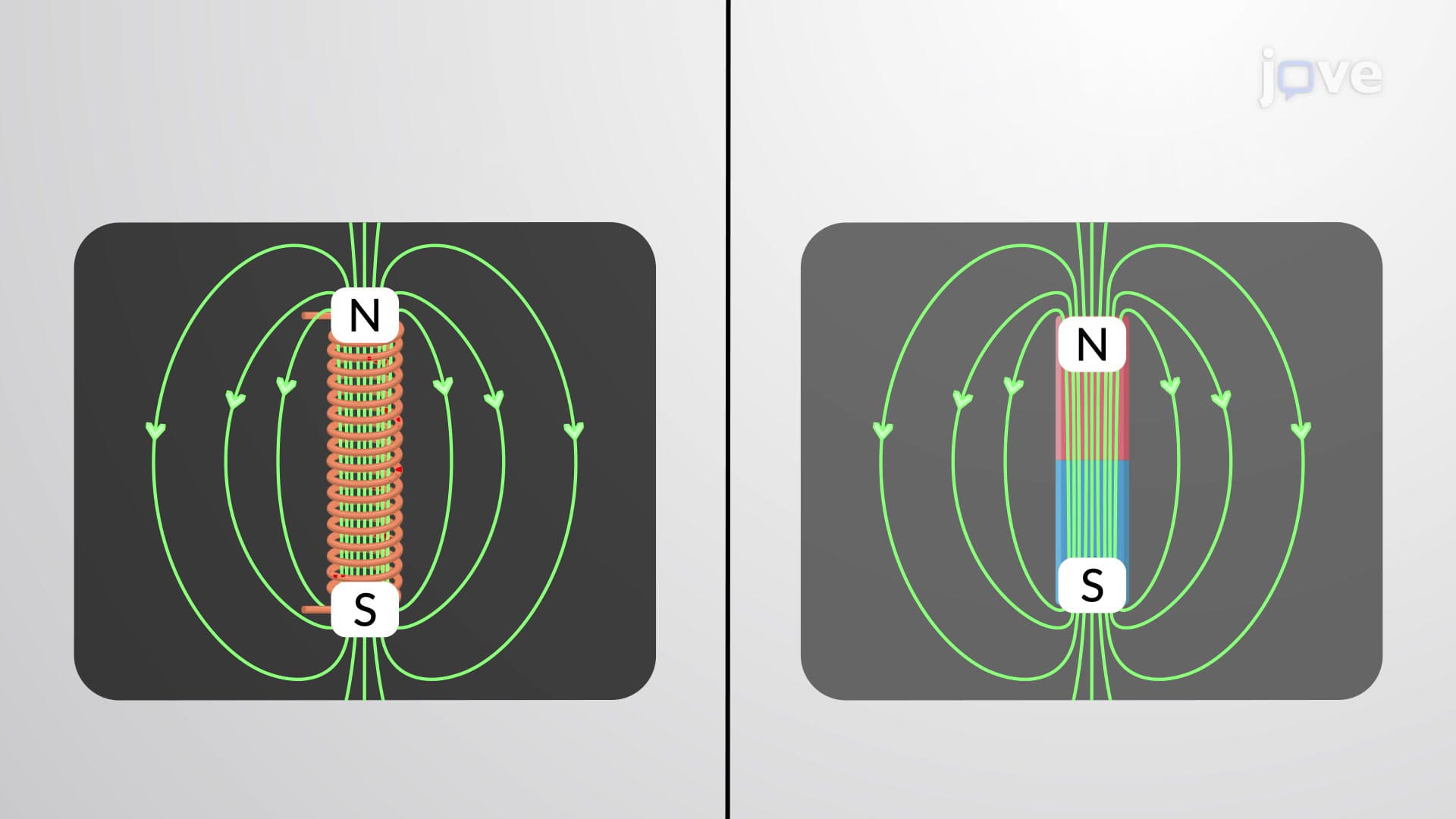

Solenoids01:17

Solenoids

3.0K
A solenoid is a conducting wire coated with an insulating material, wound tightly in the form of a helical coil. The magnetic field for a solenoid is the vector sum of the magnetic field due to its individual turns. For an ideal solenoid, the magnetic field inside is almost uniform and parallel to the solenoid axis, while the magnetic field outside the solenoid is nearly zero.
Each turn in a solenoid can be approximated as a circular current carrying coil that generates a dipole moment. The...
3.0K
Diamagnetic Shielding of Nuclei: Local Diamagnetic Current01:14

Diamagnetic Shielding of Nuclei: Local Diamagnetic Current

1.2K
An applied magnetic field causes the electrons present in the molecule to circulate, setting up a local diamagnetic current within the molecule. The local diamagnetic current arising from circulating sigma-bonding electrons induces a magnetic field, Blocal that opposes the applied magnetic field, B0. The effective magnetic field experienced by these nuclei is given by the difference between the applied and local magnetic fields in a phenomenon called local diamagnetic shielding. Essentially,...
1.2K
Energy In A Magnetic Field01:24

Energy In A Magnetic Field

2.5K
If a magnetic field is sustained, there must be a current in a closed circuit or loop, implying some energy has been spent in creating the field. If this energy is not dissipated via the circuit's resistance, it is stored in the field.
Take an ideal inductor with zero resistance. Although it's practically impossible, assume that the coil's resistance is so small that it is practically negligible. The loss of the field's energy to dissipate thermal energy (or heat) is thus...
2.5K
Calculation of Self-inductance01:29

Calculation of Self-inductance

651
The self-inductance of a circuit, often simply called the inductance, is a purely geometric factor that depends only on the circuit component's structure. More specifically, it depends on the shape and size of the component that lets the flux pass through it, thus inducing an electric field that opposes any current passing through it.
Since the effect of the induced electric field and the back EMF generated depends on the rate of change of current and the self-inductance, the inductance...
651
Toroids01:27

Toroids

3.6K
A toroid is a closely wound donut-shaped coil constructed using a single  conducting wire. In general, it is assumed that a toriod consists of  multiple circular loops perpendicular to its axis.
When connected to a supply, the magnetic field generated in the toroid has field lines circular and concentric to its axis. Conventionally, the direction of this magnetic field is expressed using the right-hand rule. If the fingers of the right hand curl in the current direction, the thumb points in...
3.6K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Neutron Polarimetry Using a Polarized <sup>3</sup>He Cell for the aCORN Experiment.

Nuclear instruments & methods in physics research. Section A, Accelerators, spectrometers, detectors and associated equipment·2024
Same author

Neutron powder diffraction study (<i>T</i>= 4.2-300 K) and polarization analysis of YBaCuFeO<sub>5+</sub>.

Journal of physics. Condensed matter : an Institute of Physics journal·2022
Same author

A large beam high efficiency radio frequency neutron spin flipper.

The Review of scientific instruments·2021
Same author

Sensitive neutron transverse polarization analysis using a <sup>3</sup>He spin filter.

The Review of scientific instruments·2020
Same author

Direct observation of spin rotation in Bragg scattering due to the spin-orbit interaction in silicon.

Physical review. C·2020
Same author

Optically polarized <sup>3</sup>He.

Reviews of modern physics·2018
Same journal

A compact low-power magnetic particle imaging scanner based on a permanent-magnet field-free-line generator with high gradient.

The Review of scientific instruments·2026
Same journal

Achieving ultrahigh resolution with high efficiency: Optical design of the two-dimensional Resonant Inelastic X-ray Scattering (2D-RIXS) spectrometer at NanoTerasu beamline 02U.

The Review of scientific instruments·2026
Same journal

Automated laboratory x-ray diffractometer and fluorescence spectrometer for high-throughput materials characterization.

The Review of scientific instruments·2026
Same journal

Nonlinear Bayesian Doppler tomography for simultaneous reconstruction of flow and temperature.

The Review of scientific instruments·2026
Same journal

A Reflectance-based multimodal wearable photoplethysmography (PPG) sensor.

The Review of scientific instruments·2026
Same journal

Temporal analysis of products-Raman (TAP-Raman): An integrated setup for operando spectroscopy and transient kinetic analysis.

The Review of scientific instruments·2026
See all related articles

Related Experiment Video

Updated: Dec 2, 2025

Electric and Magnetic Field Devices for Stimulation of Biological Tissues
13:29

Electric and Magnetic Field Devices for Stimulation of Biological Tissues

Published on: May 15, 2021

5.5K

Optimizing magnetically shielded solenoids.

W C Chen1, Md T Hassan1, R Erwin1

  • 1NIST Center for Neutron Research, National Institute of Standards and Technology, Gaithersburg, Maryland 20899, USA.

The Review of Scientific Instruments
|November 3, 2020
PubMed
Summary
This summary is machine-generated.

We designed a novel magnetically shielded solenoid to improve magnetic field homogeneity. This new design significantly reduces field gradients, enhancing polarized helium-3 (³He) based neutron spin filters and other applications requiring precise magnetic fields.

More Related Videos

MRM Microcoil Performance Calibration and Usage Demonstrated on Medicago truncatula Roots at 22 T
10:22

MRM Microcoil Performance Calibration and Usage Demonstrated on Medicago truncatula Roots at 22 T

Published on: January 16, 2021

5.7K
Magnetically-Assisted Remote Controlled Microcatheter Tip Deflection under Magnetic Resonance Imaging
11:27

Magnetically-Assisted Remote Controlled Microcatheter Tip Deflection under Magnetic Resonance Imaging

Published on: April 4, 2013

12.7K

Related Experiment Videos

Last Updated: Dec 2, 2025

Electric and Magnetic Field Devices for Stimulation of Biological Tissues
13:29

Electric and Magnetic Field Devices for Stimulation of Biological Tissues

Published on: May 15, 2021

5.5K
MRM Microcoil Performance Calibration and Usage Demonstrated on Medicago truncatula Roots at 22 T
10:22

MRM Microcoil Performance Calibration and Usage Demonstrated on Medicago truncatula Roots at 22 T

Published on: January 16, 2021

5.7K
Magnetically-Assisted Remote Controlled Microcatheter Tip Deflection under Magnetic Resonance Imaging
11:27

Magnetically-Assisted Remote Controlled Microcatheter Tip Deflection under Magnetic Resonance Imaging

Published on: April 4, 2013

12.7K

Area of Science:

  • Physics
  • Materials Science
  • Engineering

Background:

  • Designing magnetostatic cavities requires maximizing field homogeneity within a given volume.
  • Minimizing transverse field gradients is crucial for applications like polarized helium-3 (³He) neutron spin filters to prevent relaxation.

Purpose of the Study:

  • To report a new design for a magnetically shielded solenoid that enhances magnetic field homogeneity.
  • To minimize the volume-averaged transverse field gradient for improved performance in polarized ³He applications.

Main Methods:

  • A novel solenoid design featuring compensation coils placed around mu-metal end cap holes.
  • Utilizing non-identical compensation coils for non-identical end cap holes to further optimize field gradients.
  • Validation through both simulation and experimental results.

Main Results:

  • Achieved a significant improvement in transverse field gradient reduction over a 1000 cm³ volume.
  • Demonstrated a factor of 7 decrease in the solenoid's field gradient.
  • Reported a factor of 50 increase in the gradient-induced relaxation time for ³He polarization.

Conclusions:

  • The developed magnetically shielded solenoid design offers superior field homogeneity compared to conventional methods.
  • The improved design is highly beneficial for polarized ³He neutron spin filters and applicable to other fields requiring high magnetic field homogeneity.
  • This approach provides a pathway for enhanced performance in various scientific and technological applications.
