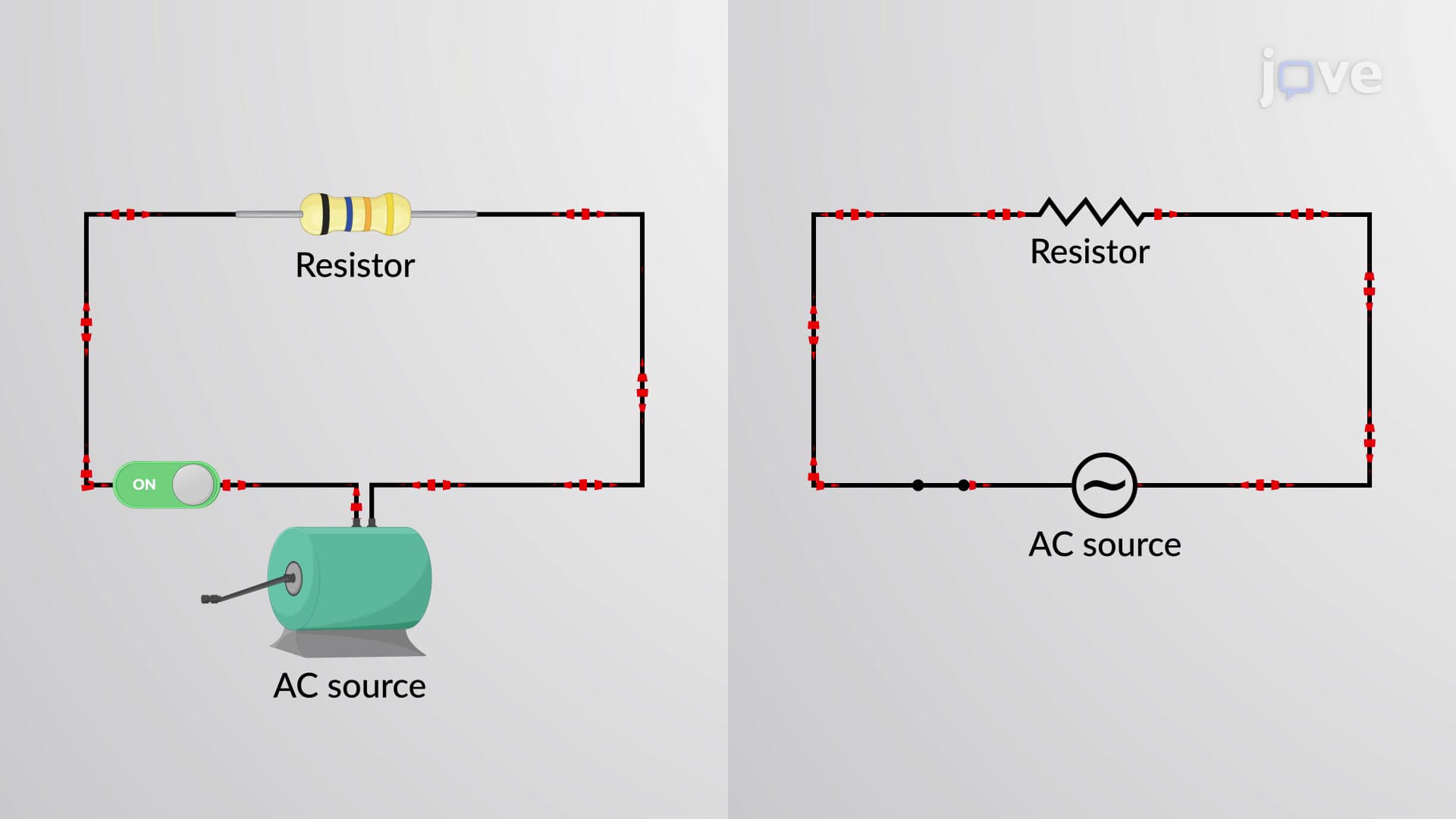

Resistor in an AC Circuit

2.6K
An alternating emf or voltage source is needed to supply an alternating current (AC) to a circuit. A coil of wire rotating in a magnetic field at a constant angular speed represents such a source. It also generates a sinusoidal alternating emf and serves as an industrial alternator.
One-way current through the meter is measured using diodes. A diode is a device with better conductivity in one direction compared to the other; in its ideal state, it has zero resistance in one direction and allows...
2.6K
Design Example: Frog Muscle Response01:14

Design Example: Frog Muscle Response

188
A student is tasked to work on an intriguing experiment involving an RL (Resistor-Inductor) circuit to study the muscle response of a frog's leg to electrical stimulation. The RL circuit plays a crucial role in this experiment, providing the means to control and measure the electrical impulses that trigger muscle contraction.
When the switch connecting the RL circuit is closed, a brief muscle contraction is observed. This is because, at a steady state, the inductor acts like a short...
188
Thevinin's Theorem01:15

Thevinin's Theorem

362
Thévenin's theorem plays a pivotal role in electrical circuit analysis, offering a solution to the challenges posed by variable loads within a circuit. In practical applications, it is common to encounter circuits where certain elements remain fixed while others fluctuate, often referred to as the "load." A typical household electrical outlet serves as a prime example of a variable load, as it can be connected to a variety of appliances, each with its own unique electrical...
362
Inductor in an AC Circuit01:16

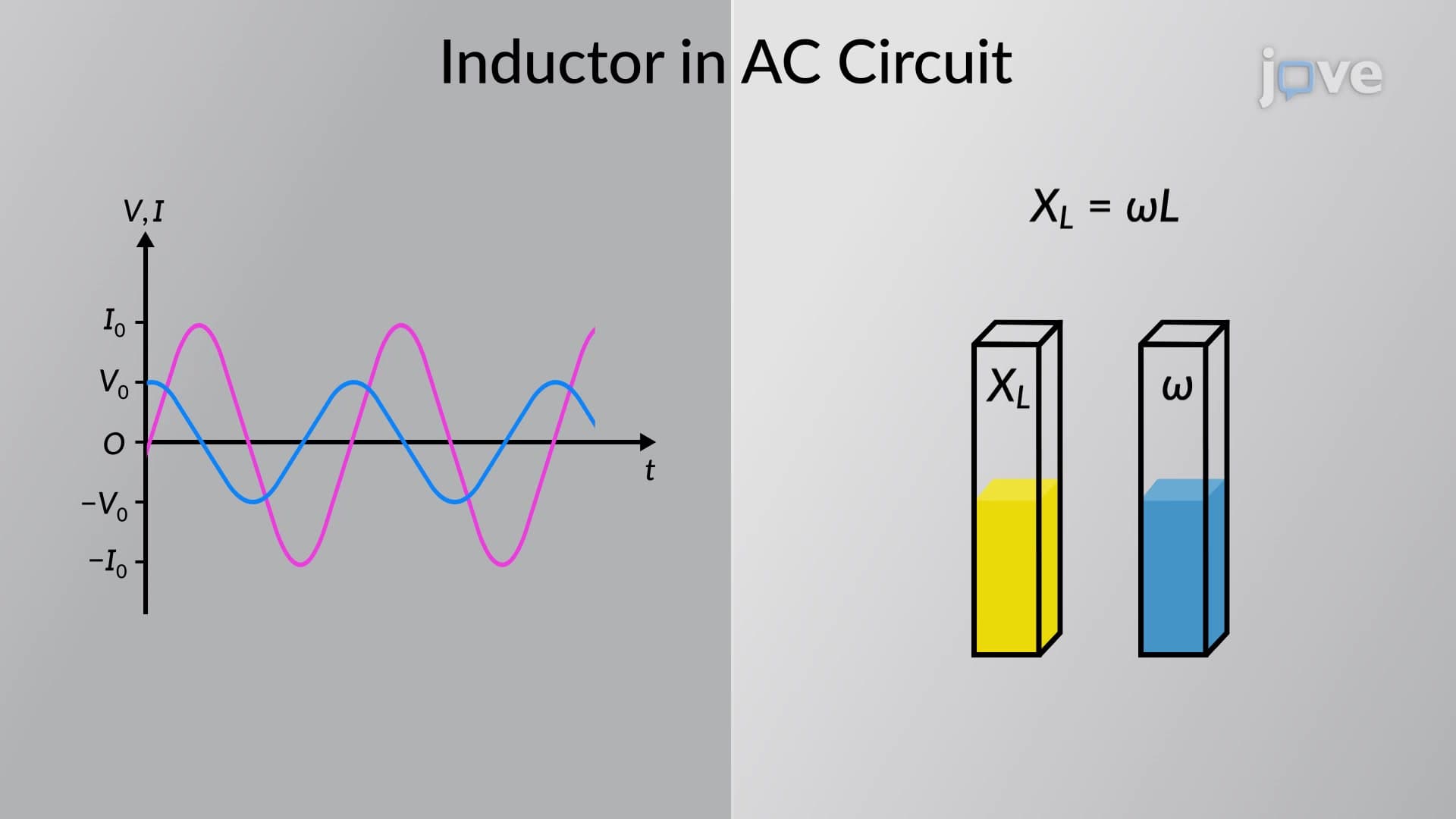

Inductor in an AC Circuit

2.3K
The basic components of an inductor are coils or loops of wire that are either wound around a hollow tube former or a ferromagnetic material (iron-cored) to increase their inductive value or inductance. When a voltage is applied across an inductor's terminals, a magnetic field is created, where the inductor stores its energy. The inductor's own self-induced or back emf value controls the growth of the current flowing through it.  This back emf voltage is proportional to the rate of...
2.3K
MOSFET: Enhancement Mode01:22

MOSFET: Enhancement Mode

248
Enhancement-mode MOSFETs are pivotal components in electronics, distinguished by their capacity to act as highly efficient switches. They are part of the larger family of metal-oxide Semiconductor Field-Effect Transistors (MOSFETs). They are available in two types: p-channel and n-channel, each tailored to specific polarity operations.
In their basic form, enhancement-mode MOSFETs are typically non-conductive when the gate-source voltage (Vgs) is zero. This default 'off' state means no...
248

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Programmable Stepwise Heteroepitaxial Growth of Colloidal Crystals With Different Phases.

Advanced materials (Deerfield Beach, Fla.)·2026
Same author

Biomolecular Condensates as Protein Degradation Tools for Intracellular Targets.

Nature communications·2026
Same author

Efficient Second-Harmonic Generation from Molecular Monolayers.

ACS nano·2026
Same author

Oxygen Distribution and Segregation at Grain Boundaries in Nb and Ta-Encapsulated Nb Thin Films for Superconducting Qubits.

ACS nano·2026
Same author

Robust Interpretation of Electrochemical Impedance Spectra Using Numerical Complex Analysis.

ACS measurement science au·2026
Same author

Printed MoS<sub>2</sub> memristive nanosheet networks for spiking neurons with multi-order complexity.

Nature nanotechnology·2026
Same journal

Formation of Bimetallic Nanoparticles via Exsolution Using a Reducible Metal Oxide Capping Layer.

ACS nano·2026
Same journal

Cold-Driven Thermoelectric Patch for Postoperative Tumor Control.

ACS nano·2026
Same journal

Chemically Fueled Interfacial Supramolecular Polymerization.

ACS nano·2026
Same journal

Tactile Neuromorphic Ion-Gated Vertical Transistor Displays Enabling Dual-Output Reservoir Computing.

ACS nano·2026
Same journal

In Situ Oxygen Shuttling within a Bilayer Electrified Membrane Enables Aeration-Free Electro-Fenton Water Purification.

ACS nano·2026
Same journal

Single Atoms as Growth Directors: From Graphene Edges to Atomically Precise Interfaces in 2D Materials.

ACS nano·2026
See all related articles

Related Experiment Video

Updated: May 15, 2025

In Situ Transmission Electron Microscopy with Biasing and Fabrication of Asymmetric Crossbars Based on Mixed-Phased a-VOx
09:49

In Situ Transmission Electron Microscopy with Biasing and Fabrication of Asymmetric Crossbars Based on Mixed-Phased a-VOx

Published on: May 13, 2020

4.0K

Resistive Switching in α-In2Se3 Lateral Field-Effect Transistors.

Ting-Ching Chu1, Hyeonseon Choi2, Christopher E Mead2

  • 1Applied Physics Graduate Program, Northwestern University, Evanston, Illinois 60208, United States.

ACS Nano
|April 11, 2025
PubMed
Summary
This summary is machine-generated.

Resistive switching in ferroelectric semiconducting field-effect transistors (FeS-FETs) is influenced by both polarization switching and defects. Understanding these mechanisms is key for improving FeS-FETs for memory applications.

Keywords:
ferroelectric semiconductorsfield-effect transistorsindium selenidekelvin probe force microscopyresistive switchingscanning photocurrent microscopyscanning transmission electron microscopy

More Related Videos

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors
10:31

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors

Published on: November 24, 2016

8.5K
Tuning Oxide Properties by Oxygen Vacancy Control During Growth and Annealing
06:44

Tuning Oxide Properties by Oxygen Vacancy Control During Growth and Annealing

Published on: June 9, 2023

3.0K

Related Experiment Videos

Last Updated: May 15, 2025

In Situ Transmission Electron Microscopy with Biasing and Fabrication of Asymmetric Crossbars Based on Mixed-Phased a-VOx
09:49

In Situ Transmission Electron Microscopy with Biasing and Fabrication of Asymmetric Crossbars Based on Mixed-Phased a-VOx

Published on: May 13, 2020

4.0K
Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors
10:31

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors

Published on: November 24, 2016

8.5K
Tuning Oxide Properties by Oxygen Vacancy Control During Growth and Annealing
06:44

Tuning Oxide Properties by Oxygen Vacancy Control During Growth and Annealing

Published on: June 9, 2023

3.0K

Area of Science:

  • Materials Science
  • Condensed Matter Physics
  • Nanotechnology

Background:

  • Two-dimensional ferroelectric semiconducting field-effect transistors (FeS-FETs) show promise for advanced memory and neuromorphic computing due to nonvolatile resistive switching.
  • The precise mechanisms behind resistive switching in α-In2Se3 lateral devices, especially the roles of channel and contact resistance, are not fully understood.

Purpose of the Study:

  • To spatially resolve gate-poling-dependent contact and channel resistances in α-In2Se3 FeS-FETs.
  • To investigate the influence of spontaneous polarization and defect formation on resistive switching characteristics.
  • To elucidate the mechanisms governing resistive switching for improved FeS-FET performance.

Main Methods:

  • Kelvin probe force microscopy (KPFM) to map contact and channel resistances.
  • Scanning photocurrent microscopy (SPCM) to quantify Schottky barrier height changes.
  • Ex situ high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) to observe structural defects.

Main Results:

  • Both contact and channel resistances increased with positive poling and decreased with negative poling, correlating with Schottky barrier height modulation.
  • Spontaneous polarization was confirmed to affect both channel and contact resistances in multidomain flakes.
  • Clockwise resistive switching was observed even without clear ferroelectric polarization switching, often accompanied by stacking defects induced by gate poling.

Conclusions:

  • Resistive switching in α-In2Se3 lateral devices is a complex phenomenon influenced by both reversible polarization switching and irreversible defect formation.
  • The formation of stacking defects can impede domain wall motion, explaining the lack of abrupt switching thresholds.
  • Improved domain wall control and defect mitigation strategies are crucial for enhancing FeS-FET performance and reliability in memory applications.
