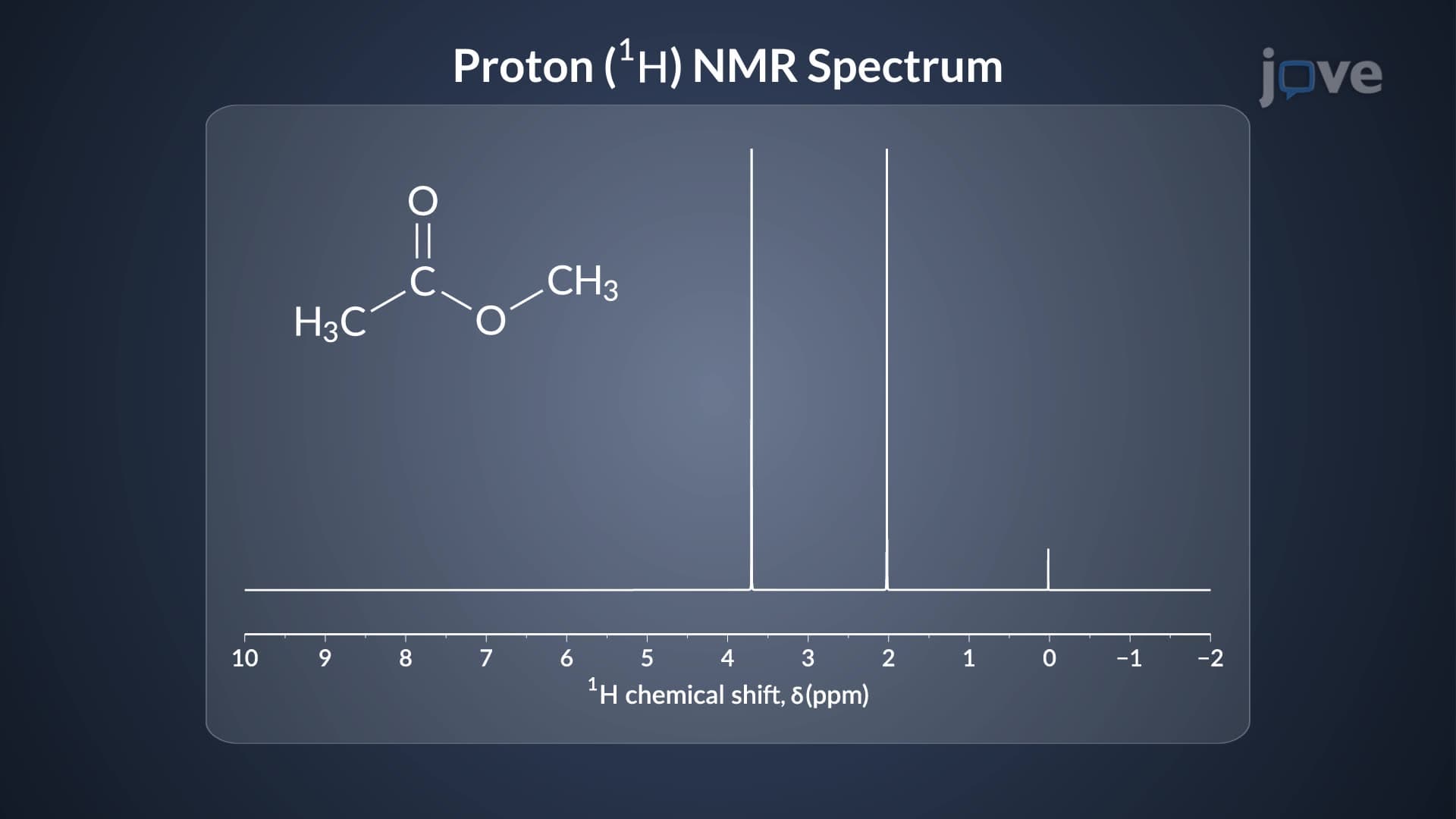

Proton (¹H) NMR: Chemical Shift01:07

Proton (¹H) NMR: Chemical Shift

3.8K
Organic molecules primarily contain carbon and hydrogen atoms. While all the hydrogen isotopes are NMR-active, protium or hydrogen-1 is the most abundant. It has a significant energy separation between its nuclear spin states due to its large gyromagnetic ratio. As per Boltzmann's distribution, an increase in the energy separation implies a greater excess population of nuclei available for excitation, resulting in a strong NMR absorption signal.
Absorption signals of all the protium nuclei...
3.8K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Extra Climate Benefits From Afforestation Due to Reduced Forest Fragmentation in China.

Advanced science (Weinheim, Baden-Wurttemberg, Germany)·2026
Same author

Substantial PM<sub>2.5</sub>-Related Health Gains from Large-Scale Migration in China.

Environmental science & technology·2026
Same author

Reemissions of polycyclic aromatic compounds from soil to air in chemical industrial parks.

Environmental research·2026
Same author

Exploring fuel-stove and operational impacts on fugitive emissions from indoor biomass combustion.

Environmental pollution (Barking, Essex : 1987)·2026
Same author

Size distribution and diurnal variations of brown carbon absorption using DMF and methanol extraction methods: Implications for the origins of extremely low-volatility organics.

Environmental pollution (Barking, Essex : 1987)·2026
Same author

PM<sub>2.5</sub> from Stir-Fry Cooking in Chinese Cities Leads to Significant Health Impacts.

Environmental science & technology·2026
Same journal

Enhancing Communication Robustness for Leadless Pacemakers: 2-DOF Gain Compensation Across Physiologic and Pathologic Dynamics.

IEEE transactions on bio-medical engineering·2026
Same journal

Focused Ultrasound System Design Considerations Based on the Applications for the Peripheral Nervous System.

IEEE transactions on bio-medical engineering·2026
Same journal

EMBC Special Issue: Stimulus Optimization Using the Artificial Bee Colony Algorithm for Visual Neuroprostheses.

IEEE transactions on bio-medical engineering·2026
Same journal

EMBC Special Issue: Non-invasive BP Estimation via Carotid-Brachial-Radial Coupling: A Physics-Informed Asymmetric Cycle Network Approach.

IEEE transactions on bio-medical engineering·2026
Same journal

Training an unconstrained 6 DOF biomimetic robotic eye with deep reinforcement learning.

IEEE transactions on bio-medical engineering·2026
Same journal

Energy Delivery Direction Monitoring during Directional Catheter-based Ultrasound Thermal Ablation using Fitted Ultrasonic MoCo-CBE: Ex Vivo and In Vivo Feasibility.

IEEE transactions on bio-medical engineering·2026
See all related articles
  1. Home
  3. Referenceless Proton Resonance Frequency Thermometry Using Deep Learning With Self-attention.
  1. Home
  3. Referenceless Proton Resonance Frequency Thermometry Using Deep Learning With Self-attention.

Related Experiment Video

The Frequency Domain Thermoreflectance Technique for Thermal Property Measurements
09:10

The Frequency Domain Thermoreflectance Technique for Thermal Property Measurements

Published on: December 5, 2025

1.4K

Referenceless Proton Resonance Frequency Thermometry Using Deep Learning with Self-Attention.

Yueran Zhao, Chang-Sheng Mei, Nathan J McDannold

    IEEE Transactions on Bio-Medical Engineering
    |April 30, 2026

    View abstract on PubMed

    Summary
    This summary is machine-generated.

    A new deep learning method enhances referenceless Proton Resonance Frequency (PRF) MR thermometry for focused ultrasound (FUS) monitoring. This approach improves temperature accuracy in heated regions and reduces errors caused by motion and background phase shifts.

    More Related Videos

    High Resolution Phonon-assisted Quasi-resonance Fluorescence Spectroscopy
    10:40

    High Resolution Phonon-assisted Quasi-resonance Fluorescence Spectroscopy

    Published on: June 28, 2016

    7.0K
    Proton Transfer and Protein Conformation Dynamics in Photosensitive Proteins by Time-resolved Step-scan Fourier-transform Infrared Spectroscopy
    10:03

    Proton Transfer and Protein Conformation Dynamics in Photosensitive Proteins by Time-resolved Step-scan Fourier-transform Infrared Spectroscopy

    Published on: June 27, 2014

    18.6K

    Related Experiment Videos

    The Frequency Domain Thermoreflectance Technique for Thermal Property Measurements
    09:10

    The Frequency Domain Thermoreflectance Technique for Thermal Property Measurements

    Published on: December 5, 2025

    1.4K
    High Resolution Phonon-assisted Quasi-resonance Fluorescence Spectroscopy
    10:40

    High Resolution Phonon-assisted Quasi-resonance Fluorescence Spectroscopy

    Published on: June 28, 2016

    7.0K
    Proton Transfer and Protein Conformation Dynamics in Photosensitive Proteins by Time-resolved Step-scan Fourier-transform Infrared Spectroscopy
    10:03

    Proton Transfer and Protein Conformation Dynamics in Photosensitive Proteins by Time-resolved Step-scan Fourier-transform Infrared Spectroscopy

    Published on: June 27, 2014

    18.6K

    Area of Science:

    • Medical Imaging
    • Biophysics
    • Artificial Intelligence

    Background:

    • Proton Resonance Frequency (PRF) MR thermometry is crucial for MR-guided focused ultrasound (FUS) temperature feedback.
    • Conventional methods struggle with inter-scan motion and background phase variations, impacting transcranial FUS accuracy.
    • Existing referenceless techniques are sensitive to susceptibility artifacts, affecting heated regions and causing false positives.

    Purpose of the Study:

    • To develop and evaluate a deep learning-based referenceless PRF thermometry method for transcranial FUS.
    • To enhance accuracy in heated regions and ensure stable background estimation.
    • To improve intra-procedural temperature monitoring reliability.

    Main Methods:

    • A retrospective study included 32 patients undergoing transcranial FUS for essential tremor.
  • A complex-valued, self-attention-augmented U-Net was designed for background complex MR image reconstruction.
  • The model was trained and validated on data from 28 patients, with testing on 4 patients.

    • Main Results:

    • The deep learning method achieved Mean Absolute Error (MAE) of 0.64°C in heated regions, outperforming existing referenceless techniques.
    • High accuracy was demonstrated with Dice coefficient of 0.76 for the 43°C isotherm and minimal background temperature change (MAE = 0.20°C).
    • Bland-Altman analysis showed good agreement (limits of agreement -1.37°C to +1.77°C, R² = 0.99).

    Conclusions:

    • The developed deep learning referenceless PRF thermometry method significantly improves accuracy and stability for transcranial FUS.
    • This technique offers more reliable intra-procedural temperature control, especially in motion-prone applications.
    • The method shows potential for broader use in scenarios where baseline-referenced thermometry is less effective.
