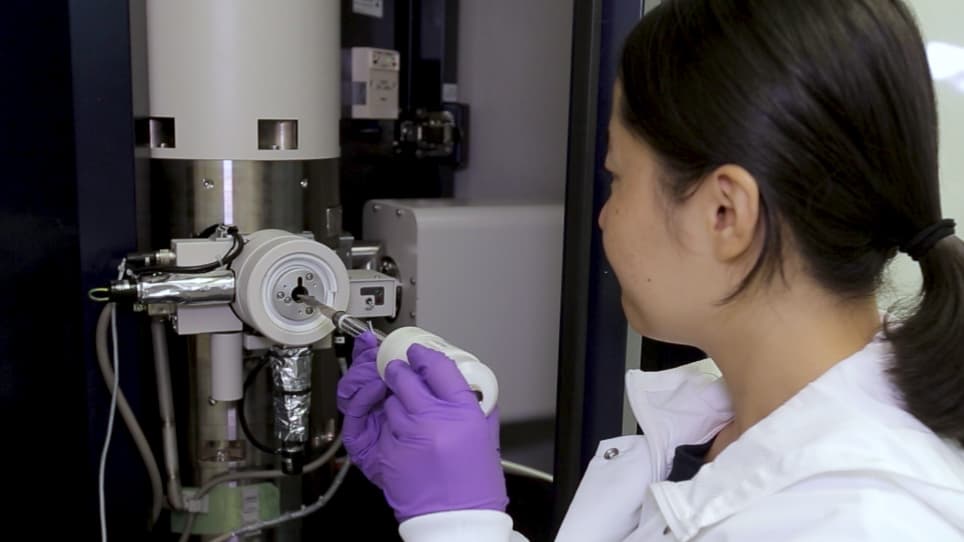

Single-Digit Nanometer Electron-Beam Lithography with an Aberration-Corrected Scanning Transmission Electron Microscope
Published on: September 14, 2018
Brightness optimization in a 200 keV DTEM source by geometry-driven aberration suppression
Paul Denham1, Pietro Musumeci1, Daniel J Masiel2
1Department of Physics and Astronomy, University of California, Los Angeles, CA, USA.
Ultramicroscopy
|June 23, 2026
Summary
Researchers improved electron gun brightness for dynamic transmission electron microscopy (DTEM) by redesigning its geometry. This optimization significantly reduces aberrations, enabling higher peak currents for advanced microscopy applications.
Area of Science:
- Electron Microscopy
- Materials Science
- Physics
Background:
- Dynamic transmission electron microscopy (DTEM) demands high peak currents.
- Conventional electron guns suffer brightness loss at required currents.
- Electron gun redesign is crucial for advancing DTEM capabilities.
Purpose of the Study:
- Improve brightness in a 200 keV electrostatic electron gun for DTEM.
- Mitigate aberrations through optimized conductor geometry.
- Enhance electron source performance for time-resolved microscopy.
Main Methods:
- Reconfigured cathode-anode assembly as an accelerator and pre-lens.
- Utilized third-order off-axis transfer maps with Green's-function evaluation.
- Validated simulations against Superfish and GPT for accuracy.
Main Results:
- Reduced spherical aberration coefficient from >150 mm to ~5-10 mm at 200 keV.
- Achieved ~1 mA peak current with a ≤10 μm exit-aperture spot.
- Demonstrated geometry optimization as a viable route to higher brightness.
Conclusions:
- Geometry-driven redesign offers a practical path to high-brightness, low-aberration electron sources.
- Optimized electron guns are essential for next-generation time-resolved microscopy.
- The study provides a validated method for electron gun design and performance prediction.
