Insights into ALD Growth of Al-Based Dielectric Stack on 4H-SiC.

Bruno Galizia1, Emanuela Schilirò1, Patrick Fiorenza1

  • 1Consiglio Nazionale delle Ricerche-Istituto per la Microelettronica e Microsistemi (CNR-IMM), Strada VIII 5, Zona Industriale, 95121 Catania, Italy.

Nanomaterials (Basel, Switzerland)
|June 25, 2026
PubMed
Summary
This summary is machine-generated.

Investigating aluminum oxide/aluminum nitride gate insulators for silicon carbide, this study found thermal ALD processes yield superior insulating properties compared to plasma-enhanced ALD due to interface bond formation.

Keywords:
aluminum nitridealuminum oxideatomic layer depositionin situ ellipsometry

More Related Videos

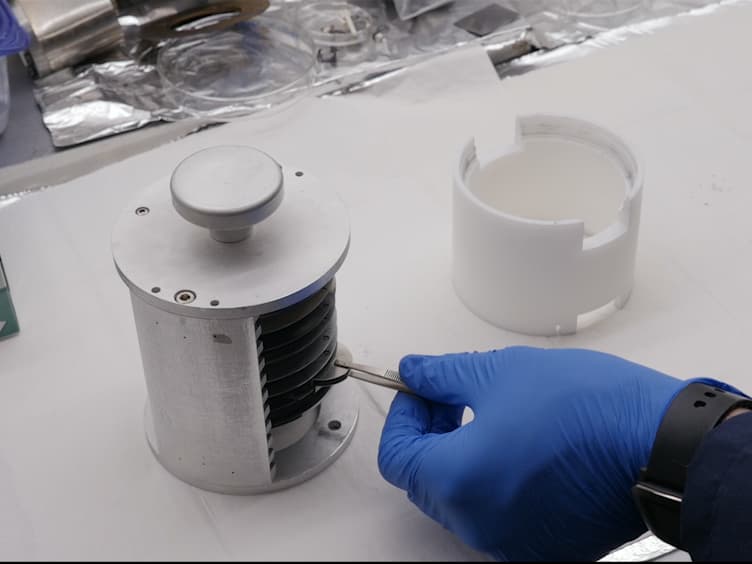

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors
10:31

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors

Published on: November 24, 2016

Fabrication of Schottky Diodes on Zn-polar BeMgZnO/ZnO Heterostructure Grown by Plasma-assisted Molecular Beam Epitaxy
14:16

Fabrication of Schottky Diodes on Zn-polar BeMgZnO/ZnO Heterostructure Grown by Plasma-assisted Molecular Beam Epitaxy

Published on: October 23, 2018

Related Experiment Videos

Last Updated: Jun 26, 2026

Growth and Electrostatic/chemical Properties of Metal/LaAlO3/SrTiO3 Heterostructures
11:54

Growth and Electrostatic/chemical Properties of Metal/LaAlO3/SrTiO3 Heterostructures

Published on: February 8, 2018

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors
10:31

Plasma-assisted Molecular Beam Epitaxy of N-polar InAlN-barrier High-electron-mobility Transistors

Published on: November 24, 2016

Fabrication of Schottky Diodes on Zn-polar BeMgZnO/ZnO Heterostructure Grown by Plasma-assisted Molecular Beam Epitaxy
14:16

Fabrication of Schottky Diodes on Zn-polar BeMgZnO/ZnO Heterostructure Grown by Plasma-assisted Molecular Beam Epitaxy

Published on: October 23, 2018

Area of Science:

  • Materials Science
  • Semiconductor Device Physics
  • Nanotechnology

Background:

  • Silicon carbide (4H-SiC) is a promising semiconductor for high-power and high-frequency applications.
  • Effective gate insulators are crucial for optimizing 4H-SiC device performance.
  • Atomic Layer Deposition (ALD) offers precise control over thin film growth for gate dielectrics.

Purpose of the Study:

  • To investigate the effects of different aluminum oxide (Al2O3) deposition methods on an aluminum nitride (AlN) interface layer for 4H-SiC gate insulators.
  • To compare the insulating properties of Al2O3/AlN stacks fabricated using thermal ALD (T-ALD) and plasma-enhanced ALD (PEALD).

Main Methods:

  • Synthesis of 10 nm (001)-oriented AlN on 4H-SiC followed by 20 nm amorphous Al2O3 using sequential T-ALD and PEALD.
  • In situ ellipsometry to monitor interface evolution during deposition.
  • Ex situ structural and electrical characterization to analyze material properties.

Main Results:

  • The Al2O3/AlN interface was significantly affected by oxygen plasma in PEALD, leading to O-Al-N bond formation.
  • The Al2O3/AlN bilayer grown by T-ALD exhibited excellent insulating behavior with a dielectric constant of 8.7.
  • The Al2O3/AlN bilayer grown by PEALD showed poor insulating properties.

Conclusions:

  • The deposition method for Al2O3 critically impacts the performance of Al2O3/AlN gate insulators on 4H-SiC.
  • T-ALD is a preferred method for fabricating high-quality Al2O3/AlN gate dielectrics, ensuring good insulating properties for 4H-SiC devices.
  • PEALD processes, particularly those involving oxygen plasma, can degrade the insulating characteristics due to undesirable interfacial reactions.
