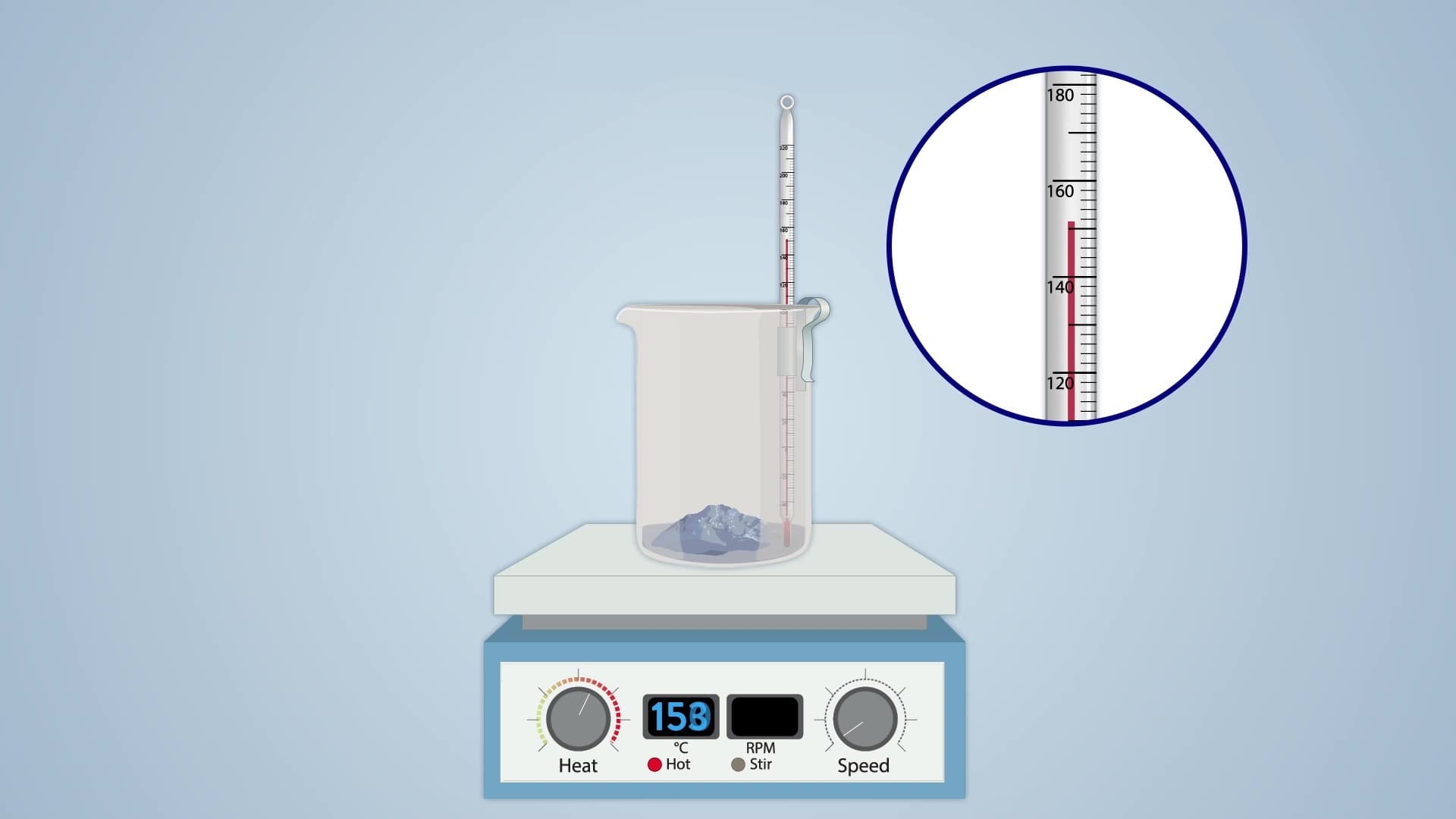

Melting Points05:12

Melting Points

176.7K
Melting Points in Organic Chemistry
The melting point of a compound is the temperature at which the solid phase transitions into the liquid phase at a standard pressure of 1 atmosphere. The melting point of a compound is a physical property, like solubility, density, color, and electronegativity that can be used to identify a compound. Determining the exact temperature at which a compound begins to melt is a challenging task; because of this, the melting point of compounds is reported as a...
176.7K
Melting Points08:15

Melting Points

48.7K
Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA
48.7K
Melting Points02:27

Melting Points

6.8K
Source: Lara Al Hariri at the University of Massachusetts Amherst, MA, USA
6.8K
Melting Point05:12

Melting Point

160.4K
Source: Vy M. Dong and Jan Riedel, Department of Chemistry, University of California, Irvine, CA
One of the most important properties of a crystalline solid is its melting point. It can be used to determine the purity of a known compound and gives important information about the stability of the formed...
160.4K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Multi-frame x-ray radiography and image tracking for quantification of expansion in laser-driven tin ejecta microjets.

The Review of scientific instruments·2024
Same author

Single-pulse (100 ps) extended x-ray absorption fine structure capability at the Dynamic Compression Sector.

The Review of scientific instruments·2020
Same author

Structural Transformation and Chemical Stability of a Shock-Compressed Insensitive High Explosive Single Crystal: Time-Resolved Raman Spectroscopy.

The journal of physical chemistry. A·2020
Same author

What Determines the fcc-bcc Structural Transformation in Shock Compressed Noble Metals?

Physical review letters·2020
Same author

Twinning and Dislocation Evolution during Shock Compression and Release of Single Crystals: Real-Time X-Ray Diffraction.

Physical review letters·2018
Same author

Direct Observations of a Dynamically Driven Phase Transition with in situ X-Ray Diffraction in a Simple Ionic Crystal.

Physical review letters·2018

Related Experiment Video

Updated: Jan 20, 2026

Bacterial Transformation Using Heat Shock and Competent Cells
11:01

Bacterial Transformation Using Heat Shock and Competent Cells

Published on: April 30, 2023

756.4K

Structural Transformation and Melting in Gold Shock Compressed to 355 GPa.

Surinder M Sharma1, Stefan J Turneaure1, J M Winey1

  • 1Institute for Shock Physics, Washington State University, Pullman, Washington 99164, USA.

Physical Review Letters
|September 7, 2019
PubMed
Summary
This summary is machine-generated.

Gold surprisingly transforms to a body-centered-cubic (bcc) phase under shock compression, challenging previous beliefs about its high-pressure behavior. This discovery impacts its use as a reliable pressure marker in scientific research.

More Related Videos

Transformation of Plasmid DNA into E. coli Using the Heat Shock Method
07:46

Transformation of Plasmid DNA into E. coli Using the Heat Shock Method

Published on: August 1, 2007

72.0K
Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses
08:55

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses

Published on: June 7, 2018

8.9K

Related Experiment Videos

Last Updated: Jan 20, 2026

Bacterial Transformation Using Heat Shock and Competent Cells
11:01

Bacterial Transformation Using Heat Shock and Competent Cells

Published on: April 30, 2023

756.4K
Transformation of Plasmid DNA into E. coli Using the Heat Shock Method
07:46

Transformation of Plasmid DNA into E. coli Using the Heat Shock Method

Published on: August 1, 2007

72.0K
Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses
08:55

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses

Published on: June 7, 2018

8.9K

Area of Science:

  • Materials Science
  • Condensed Matter Physics
  • Geophysics

Background:

  • Gold is commonly used as a pressure marker due to the assumption it retains its crystal structure under extreme pressures.
  • Previous studies suggested gold maintains its ambient structure under static and shock compression.

Purpose of the Study:

  • To investigate the high-pressure crystal structure of gold under shock compression.
  • To determine the pressure-induced phase transitions and melting point of gold.

Main Methods:

  • In situ X-ray diffraction measurements were performed on shock-compressed gold.
  • High-pressure conditions were achieved using dynamic compression techniques.

Main Results:

  • Gold transforms to a body-centered-cubic (bcc) phase at pressures between 150 and 176 GPa.
  • A liquid-bcc coexistence phase was observed from 220 to 302 GPa.
  • Complete melting of gold occurred by 355 GPa.

Conclusions:

  • Shock compression induces a phase transformation to the bcc structure in gold, contradicting theoretical predictions.
  • The observed bcc structure differs from the hexagonal-close-packed structure reported under static compression.
  • These findings necessitate a re-evaluation of gold's application as a pressure marker at extreme conditions.
