Deterministic stabilization of eight-way 2D diffractive beam combining using pattern recognition
Optics Letters
|September 14, 2019
Summary
We developed a novel method for controlling high-power laser beam combination by analyzing output intensity patterns. This technique improves stability and efficiency, enabling scalable systems with faster response times.
Area of Science:
- Optics and Photonics
- Laser Physics
- Beam Control Systems
Background:
- High-power laser systems often require combining multiple beams.
- Controlling phase errors in diffractive beam combination is crucial for efficiency and stability.
- Existing methods may face limitations in scalability and response time with increasing channel counts.
Purpose of the Study:
- To introduce and validate a new method for controlling diffractive, high-power beam combination.
- To demonstrate precise phase error sensing using output intensity patterns.
- To assess the scalability and performance of the new control method.
Main Methods:
- Sensing phase errors by analyzing the intensity pattern of uncombined side beams at the output.
- Implementing a control loop for diffractive beam combination.
- Combining a square array of eight laser beams.
Main Results:
- Achieved high-power beam combination with <0.3% stability.
- Demonstrated 84.6% combination efficiency.
- Showcased that increased channel counts provide more usable information, preventing control loop slowdown.
Conclusions:
- The novel method effectively controls diffractive, high-power beam combination.
- The technique offers advantages in scalability and control loop response time compared to single-input algorithms.
- This approach is suitable for large-channel-count laser systems.
Related Concept Videos
08:46Electronic Tongue Generating Continuous Recognition Patterns for Protein Analysis
8.2K
A novel approach is described for construction of electronic tongue (eT), which greatly simplifies the design and production of sensing materials, and allows the eT to generate continuous evolution profiles and landscapes for samples in liquid. The obtained eT is efficient for common protein analysis such as discrimination.
8.2K

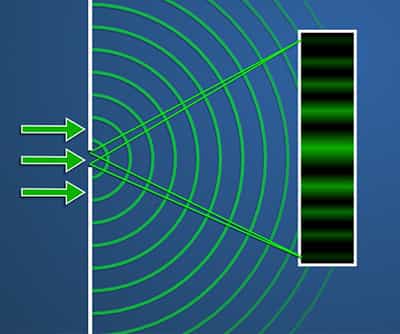

02:18Interference and Diffraction
51.8K
Interference is a characteristic phenomenon exhibited by waves. When two electromagnetic waves interact with their peaks and troughs coinciding, a resulting wave with enhanced amplitude is produced. This is known as constructive interference. In this case, the two waves interacting are in phase with each other.
51.8K

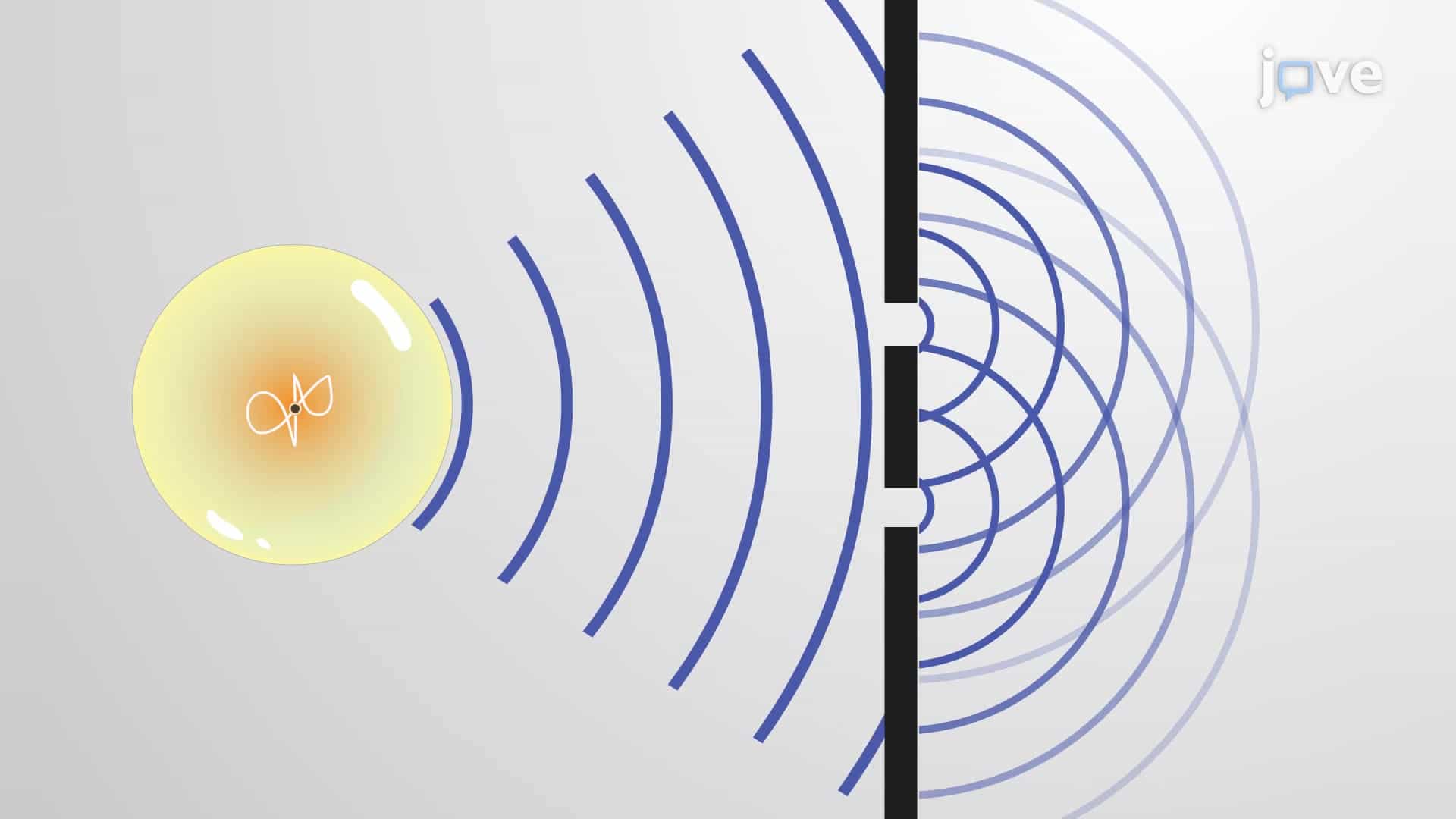

08:41Interference and Diffraction
