Related Concept Videos

Characteristics of MOSFET01:17

Characteristics of MOSFET

1.4K
Metal-oxide-semiconductor field-effect Transistors, or MOSFETs, play a critical role in electronic circuits. They are primarily utilized for amplifying and switching signals.
Various vital parameters influence their functionality, which is crucial for theory and electronics applications. First, channel dimensions, precisely length, and width, are pivotal. The size of these channels affects the transistor's ability to carry current and switching speeds; shorter channels typically enable...
1.4K
MOS Capacitor01:25

MOS Capacitor

1.8K
A Metal-Oxide-Semiconductor (MOS) capacitor is a fundamental structure used extensively in semiconductor device technology, particularly in the fabrication of integrated circuits and MOSFETs (metal-oxide-semiconductor field-effect transistors). The MOS capacitor consists of three layers: a metal gate, a dielectric oxide, and a semiconductor substrate.
The metal gate is typically made from highly conductive materials such as aluminum or polysilicon. Beneath the metal gate lies a thin layer of...
1.8K
MOSFET: Enhancement Mode01:22

MOSFET: Enhancement Mode

1.1K
Enhancement-mode MOSFETs are pivotal components in electronics, distinguished by their capacity to act as highly efficient switches. They are part of the larger family of metal-oxide Semiconductor Field-Effect Transistors (MOSFETs). They are available in two types: p-channel and n-channel, each tailored to specific polarity operations.
In their basic form, enhancement-mode MOSFETs are typically non-conductive when the gate-source voltage (Vgs) is zero. This default 'off' state means no...
1.1K
MOSFET: Depletion Mode01:20

MOSFET: Depletion Mode

1.2K
Depletion-mode MOSFETs represent a unique subset of MOSFET technology, functioning fundamentally differently from their enhancement-mode counterparts. Unlike enhancement MOSFETs, which require a positive gate-source voltage (Vgs) to turn on, depletion-mode MOSFETs are inherently conductive and "normally on" devices.
The primary characteristic of depletion-mode MOSFETs is their ability to conduct current between the drain and source terminals without gate bias. This inherent conductivity...
1.2K
MOSFET01:16

MOSFET

1.8K
The Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) plays a pivotal role in modern electronics thanks to its versatility and efficiency in controlling electrical currents. This device, also known as IGFET, MISFET, and MOSFET, has three main terminals: the Source, Drain, and Gate. MOSFETs are classified into n-channel or p-channel types based on the doping characteristics of their substrate and the source or drain regions.
In an n-MOSFET, the structure includes n-type source and drain...
1.8K
Biasing of Metal-Semiconductor Junctions01:27

Biasing of Metal-Semiconductor Junctions

907
Biasing metal-semiconductor junctions involves applying a voltage across the junction. Specifically, the metal is connected to a voltage source, while the semiconductor is grounded. This technique is essential for controlling the direction and magnitude of current flow in electronic devices, including diodes, transistors, and photovoltaic cells.
In Schottky junctions, where the semiconductor is n-type, applying a positive voltage to the metal relative to the semiconductor reduces its Fermi...
907

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Isomorphic contact resonance force microscopy and piezoresponse force microscopy of an AlN thin film: demonstration of a new contact resonance technique.

Nano futures·2026
Same author

The Strategic Role of 2D Nanomaterials in Grid Modernization.

ACS energy letters·2026
Same author

Magnetic Response of Excitons and Excitonic Complexes in Defective Hexyl Ammonium Lead Iodide Self-Assembled Quantum Wells.

ACS nano·2026
Same author

Impact of Sapphire Substrate Reconstruction on the Structural, Electronic, and Photonic Properties of MoS<sub>2</sub>.

Small (Weinheim an der Bergstrasse, Germany)·2026
Same author

Extreme Size and Irradiance Dependence in High-Resolution Vat Photopolymerization of Hydrogels.

Small methods·2026
Same author

Mechanism of Vapor-Phase Infiltration of Organometallic Hf in Poly(Methyl Methacrylate) for Hybrid Resist Applications.

Chemistry of materials : a publication of the American Chemical Society·2026
Same journal

Analytical Solution for the Potential Distribution in the Channel of A Graphene Field-Effect Transistor Validated with a Custom-Fabricated Test Platform.

ACS applied electronic materials·2026
Same journal

Atomic Layer Etching of Nickel Using N<sub>2</sub>/H<sub>2</sub> Plasma Exposure and Hexafluoroacetylacetone.

ACS applied electronic materials·2026
Same journal

Enhanced Zero-Bias Rectification in 1D Metal-Double-Insulator-Graphene Diodes for RF Energy Harvesting.

ACS applied electronic materials·2026
Same journal

Zero-Bias Photodetection and Opto-Synaptic Plasticity in BP/MoS<sub>2</sub> and WS<sub>2</sub>/PdSe<sub>2</sub> van der Waals Heterostructures.

ACS applied electronic materials·2026
Same journal

Enhanced Piezoelectric Effect in P(VDF-TrFE) through Synergistic Templating by PEDOT:PSS and Paper.

ACS applied electronic materials·2026
Same journal

Reversible Magneto-ionic Modification of Metallic Magnetic Thin Films.

ACS applied electronic materials·2026
See all related articles

Related Experiment Video

Updated: May 5, 2026

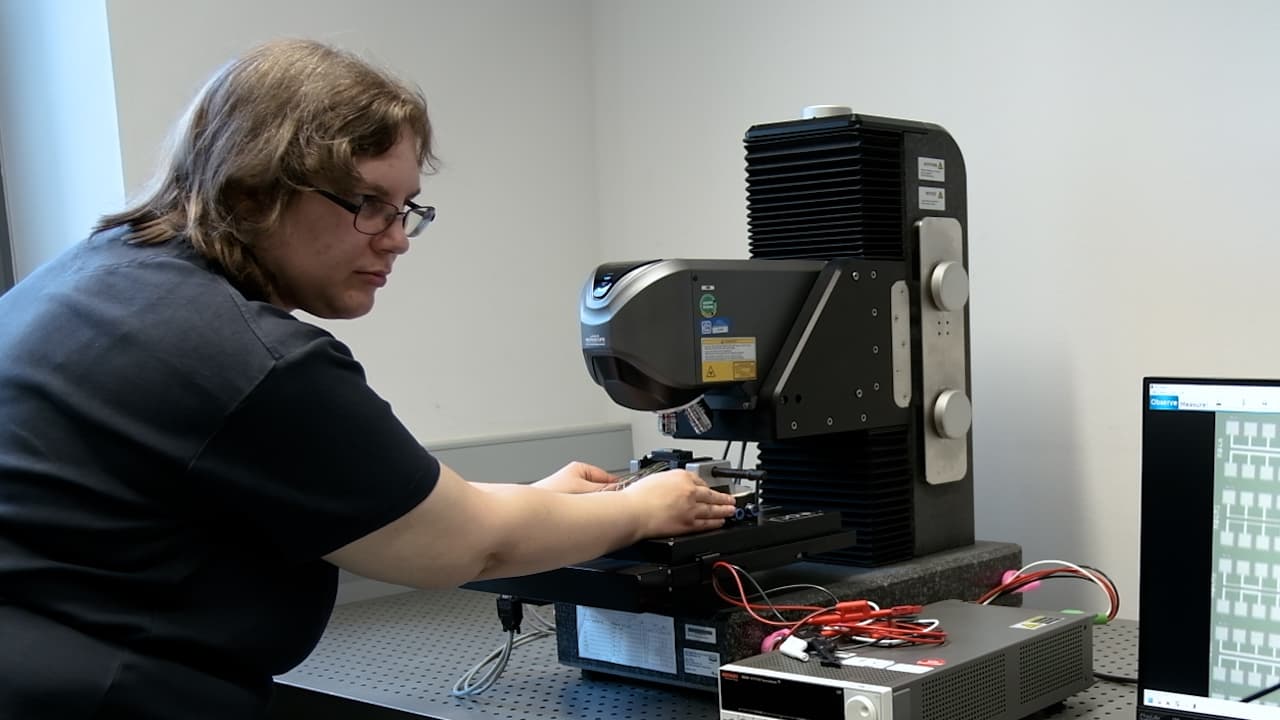

Using Laser Scanning Microscopy to Determine Electromigration in Molybdenum Disilicide
