Related Concept Videos

Biasing of FET01:22

Biasing of FET

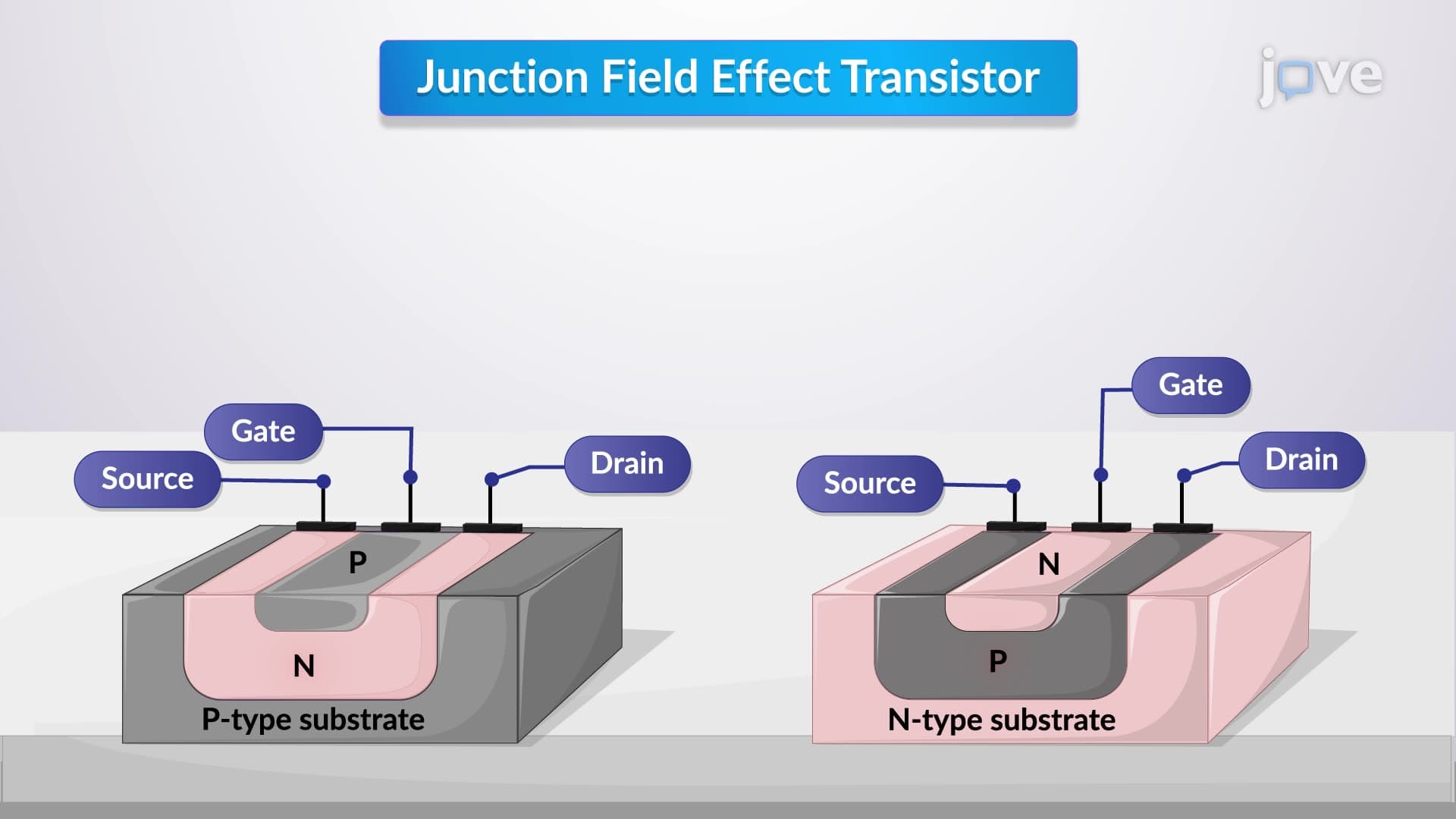

Biasing a Junction Field Effect Transistor (JFET) is crucial for setting operational parameters and ensuring efficient functioning in electronic circuits. JFETs are characterized by using a single carrier type in N-channel or P-channel configurations, where the channel is surrounded by PN junctions. These junctions are central to the device's ability to control current flow.
In an N-channel JFET, the structure consists of N-type material forming the channel on a P-type substrate, with the gate...
Characteristics of MOSFET01:17

Characteristics of MOSFET

Metal-oxide-semiconductor field-effect Transistors, or MOSFETs, play a critical role in electronic circuits. They are primarily utilized for amplifying and switching signals.
Various vital parameters influence their functionality, which is crucial for theory and electronics applications. First, channel dimensions, precisely length, and width, are pivotal. The size of these channels affects the transistor's ability to carry current and switching speeds; shorter channels typically enable quicker...
P-N junction01:11

P-N junction

A p-n junction is formed when p-type and n-type semiconductor materials are joined together. At the interface of the p-n junction, holes from the p-side and electrons from the n-side begin to diffuse into the opposite sides due to the concentration gradient. This diffusion of carriers leads to a region around the junction where there are no free charge carriers, known as the depletion region. The charge density within the depletion region for the n-side and p-side can be described by the...
Field Effect Transistor01:29

Field Effect Transistor

Field-effect transistors (FETs) are integral to electronic circuits and distinguished by their three-terminal setup: the gate, drain, and source. These transistors operate as unipolar devices, which utilize either electrons or holes as charge carriers, in contrast to bipolar transistors, which use both types of carriers. The primary function of the FET is to modulate the flow of these carriers from the source to the drain through a channel. The voltage difference between the gate and source...
The Electrical Double Layer01:30

The Electrical Double Layer

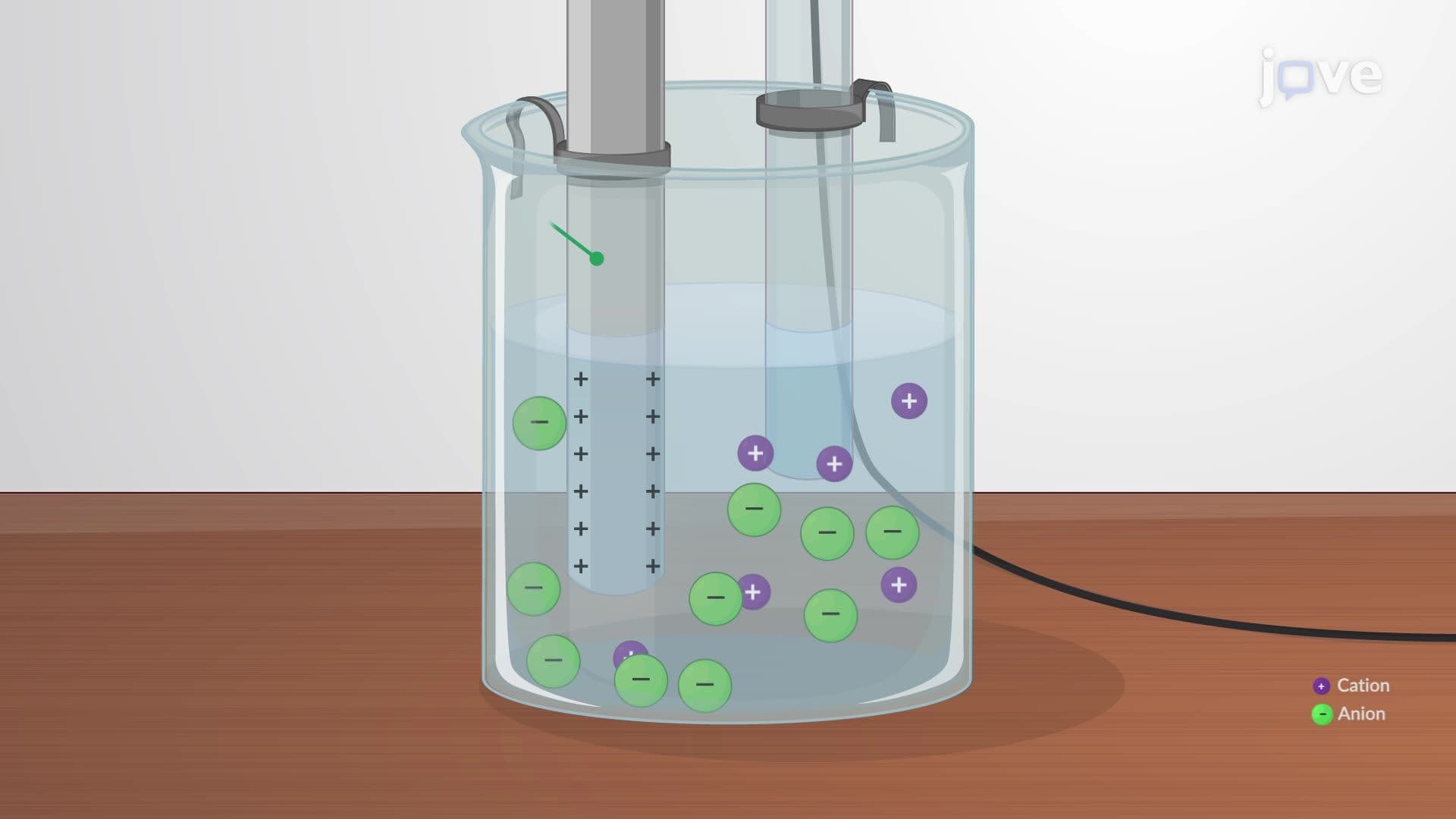

In the region where two bulk phases meet, an intricate electric charge distribution arises due to charge transfer, ion adsorption, molecular orientation, and charge distortion. This complex distribution is commonly referred to as the electrical double layer.When a solid electrode interfaces with ions in an electrolyte solution, the speed of electron transfer dictates the rates of oxidation and reduction. The electrode acquires a charge through the escape of atoms into the solution as cations or...
MOSFET01:16

MOSFET

The Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) plays a pivotal role in modern electronics thanks to its versatility and efficiency in controlling electrical currents. This device, also known as IGFET, MISFET, and MOSFET, has three main terminals: the Source, Drain, and Gate. MOSFETs are classified into n-channel or p-channel types based on the doping characteristics of their substrate and the source or drain regions.
In an n-MOSFET, the structure includes n-type source and drain...
