Parallel Circuits

Neural circuits and neuronal pools are two of the main structures found in the nervous system. Neural circuits are networks of neurons that work together to carry out a specific task or process. They consist of interconnected neurons and glial cells, which provide structural and metabolic support.
Neuronal pools are collections of nerve cells with similar functions and interact through chemical and electrical signals. These pools include both interneurons (the central neural circuit nodes that...

Consider encountering a circuit in a steady state where all its inputs are sinusoidal, yet they do not all possess the same frequency. Such a circuit is not classified as an alternating current (AC) circuit, and consequently, its currents and voltages will not exhibit sinusoidal behavior. However, this circuit can be analyzed using the principle of superposition.
The principle of superposition stipulates that the output of a linear circuit with several concurrent inputs is equivalent to the...

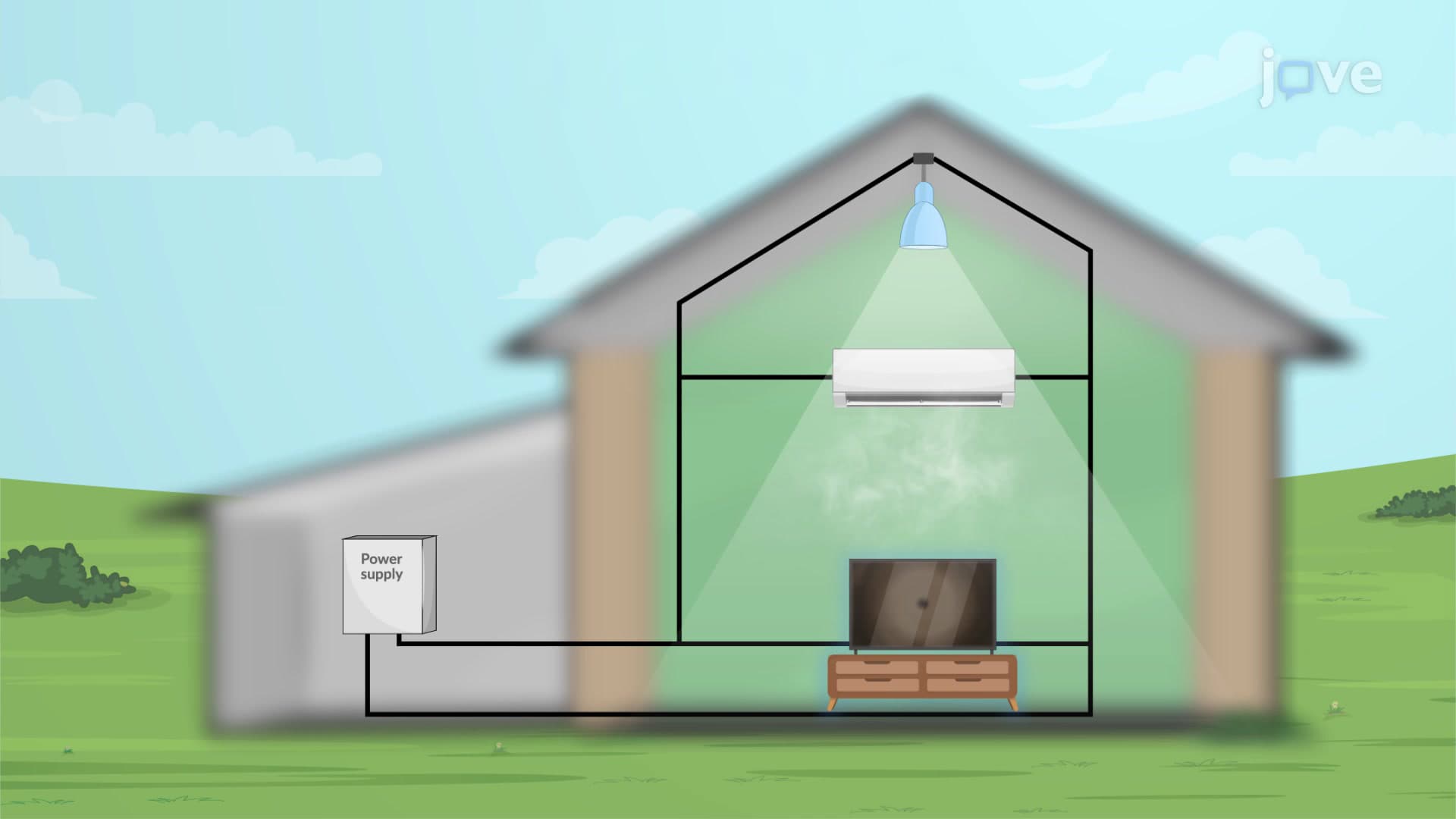

Resistors are in parallel when one end of all the resistors are connected to a continuous wire of negligible resistance and the other end of all the resistors are also connected to one another through a continuous wire of negligible resistance. In the case of a parallel configuration, the potential drop across each resistor is the same. Current through each resistor can be found using Ohm’s law, I = V/R, where the voltage is constant across each resistor. The sum of the individual currents...

Integrating two fundamental energy storage elements in electrical circuits results in second-order circuits, encompassing RLC circuits and circuits with dual capacitors or inductors (RC and RL circuits). Second-order circuits are identified by second-order differential equations that link input and output signals.
Input signals typically originate from voltage or current sources, with the output often representing voltage across the capacitor and/or current through the inductor. For example, in...

An electrical network is a system composed of interconnected elements, such as resistors, capacitors, inductors, and voltage or current sources. Unlike a circuit, an electrical network does not necessarily form a closed path. In other words, while all circuits can be considered networks due to their interconnected nature, not every network qualifies as a circuit.
A circuit, on the other hand, is also an interconnected system of electrical elements but must contain one or more closed paths.

First-order electrical circuits, which comprise resistors and a single energy storage element - either a capacitor or an inductor, are fundamental to many electronic systems. These circuits are governed by a first-order differential equation that describes the relationship between input and output signals.
One common example of a first-order circuit is the RC (resistor-capacitor) circuit. These circuits are used in relaxation oscillators such as neon lamp oscillator circuits. When voltage is...
