Orientational Transition in a Liquid Crystal Triggered by the Thermodynamic Growth of Interfacial Wetting Sheets
Published on: May 15, 2017
Topological Phase Transition Driven by In-Plane Spin Rotation
Xinyue Zhu1, Yu Xie1, Yifei Hao1
1School of Materials Science and Physics, China University of Mining and Technology, Xuzhou 221116, China.
Nano Letters
|June 26, 2026
Summary
Researchers developed a new method to control topological states in magnetic materials using continuous spin rotation. This technique requires very small magnetic fields and ultrafast switching, offering an efficient, low-energy approach for manipulating topological states.
Area of Science:
- Condensed Matter Physics
- Materials Science
- Quantum Phenomena
Background:
- Magnetic topological insulators exhibit intrinsic coupling between magnetism and band topology.
- External magnetic fields are crucial for manipulating topological states.
- Conventional methods for magnetic control require large fields and lack continuous tunability.
Purpose of the Study:
- To establish a symmetry framework for reversible switching of topological states via continuous in-plane spin rotation.
- To demonstrate a novel magnetic control mechanism for topological states.
Main Methods:
- Developed a symmetry framework based on magnetic point group constraints.
- Utilized a two-dimensional kagome ferromagnetic Chern insulator as a prototype.
- Employed micromagnetic simulations to confirm switching dynamics.
Main Results:
- Demonstrated that a 60° in-plane magnetization rotation reverses the Chern number, transitioning through a trivial state.
- Showcased spin-reorientation-driven switching under exceptionally small magnetic fields.
- Confirmed ultrafast switching times.
Conclusions:
- Established a highly efficient, low-energy paradigm for manipulating topological states.
- In-plane spin rotation offers a tunable and continuous method for controlling topological states.
- This approach overcomes limitations of conventional magnetic control mechanisms.
Related Concept Videos
02:31Phase Transitions
Whether solid, liquid, or gas, a substance's state depends on the order and arrangement of its particles (atoms, molecules, or ions). Particles in the solid pack closely together, generally in a pattern. The particles vibrate about their fixed positions but do not move or squeeze past their neighbors. In liquids, although the particles are closely spaced, they are randomly arranged. The position of the particles are not fixed—that is, they are free to move past their neighbors to occupy...
01:21Phase Transitions
A phase transition is the process in which a substance changes from one state of matter to another, like from a solid to a liquid, liquid to gas, or vice versa, at a specific temperature and under given pressure conditions. This change is spontaneous and is affected by alterations in temperature and pressure. These parameters impact the strength of the forces between molecules (intermolecular forces) in the substance.During a phase transition, both the initial and final phases of the substance...
02:39Phase Transitions: Vaporization and Condensation
The physical form of a substance changes on changing its temperature. For example, raising the temperature of a liquid causes the liquid to vaporize (convert into vapor). The process is called vaporization—a surface phenomenon. Vaporization occurs when the thermal motion of the molecules overcome the intermolecular forces, and the molecules (at the surface) escape into the gaseous state. When a liquid vaporizes in a closed container, gas molecules cannot escape. As these gas phase molecules...
02:39Phase Transitions: Melting and Freezing
Heating a crystalline solid increases the average energy of its atoms, molecules, or ions, and the solid gets hotter. At some point, the added energy becomes large enough to partially overcome the forces holding the molecules or ions of the solid in their fixed positions, and the solid begins the process of transitioning to the liquid state or melting. At this point, the temperature of the solid stops rising, despite the continual input of heat, and it remains constant until all of the solid is...

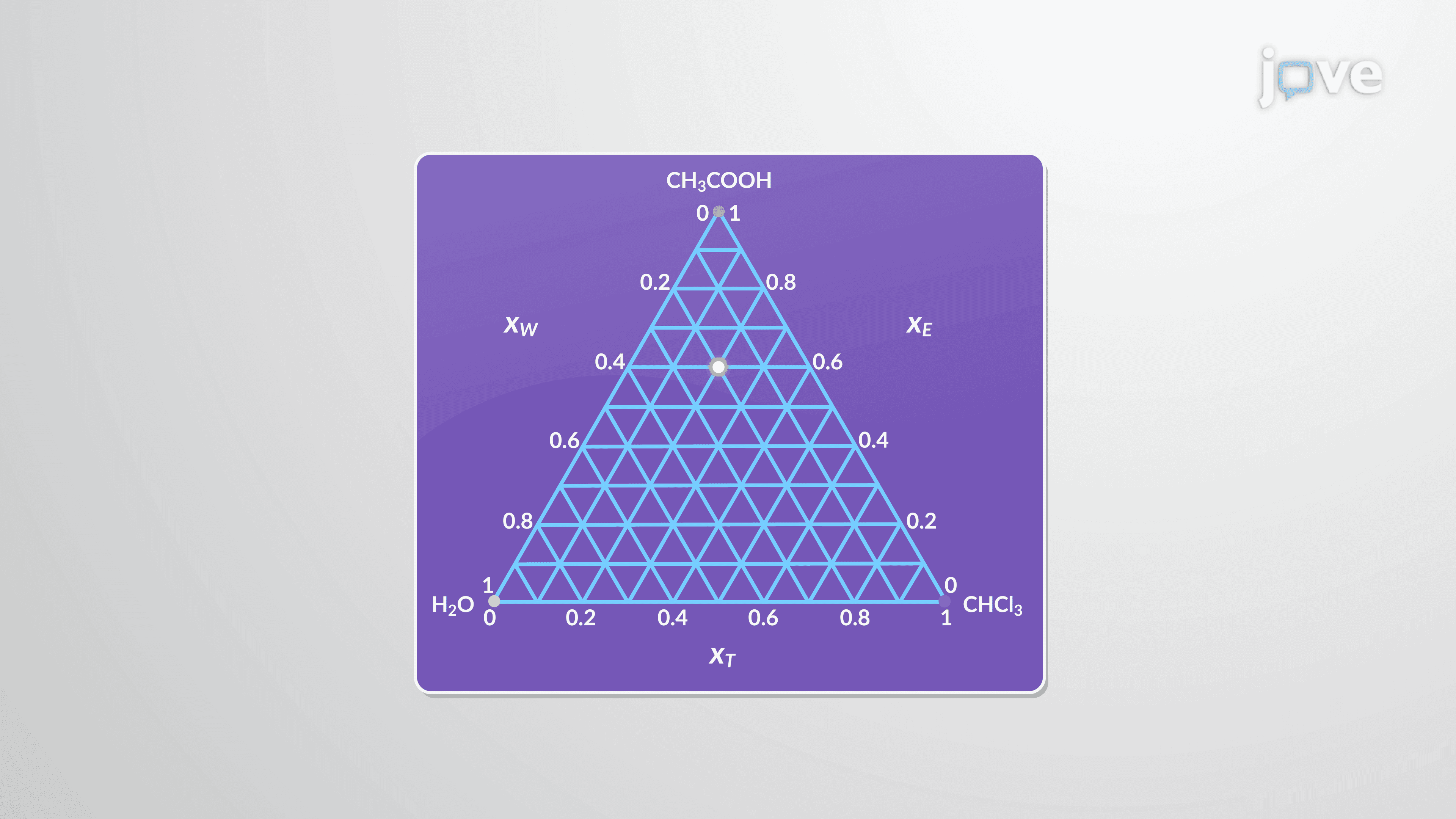

01:28Phase Diagrams of Ternary Systems
